4" (100mm) Production Vises
Ball Lock® Base Production Vises:
Integrate with our Ball Lock® Mounting System. Their jigsaw pattern base allows for “nesting” on Ball Lock® subplates.
Narrow Base Production Vises:
Designed for stand alone or fixture plate mounting. Their slim design enables high density mounting.

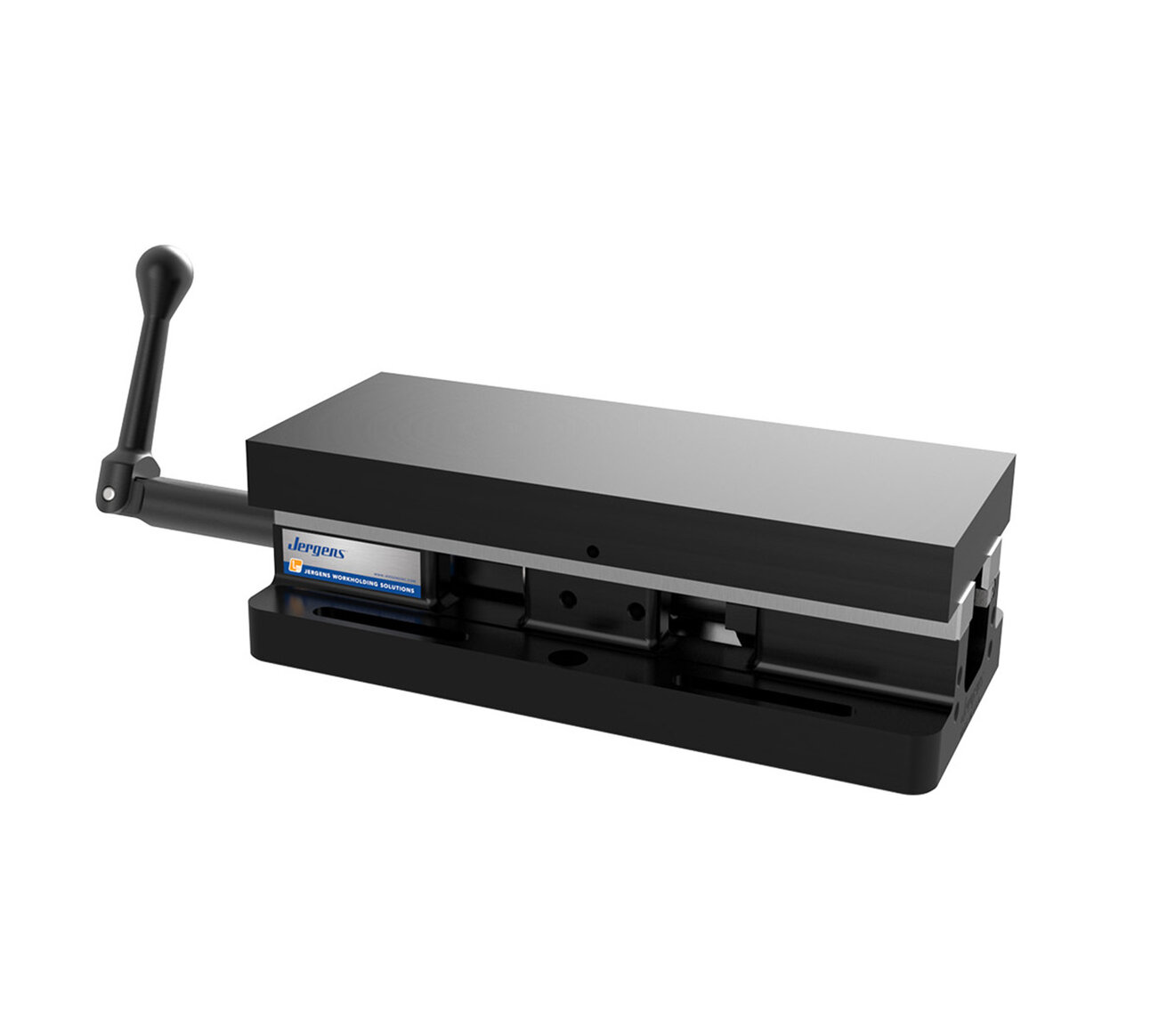

Universal Base Production Vises:
Easy to mount directly to machine tables. Their slotted mounting holes fit most machines.
Features, Benefits, & Product Specifications:
-
Base Material: Hard-Coated Machined Aluminum
-
Compact lightweight design for easy setup
-
Fully sealed, patented lead screw assembly for long maintenance free service
-
Openings allow chips to flow out of the vise base
-
Hardened ground stainless steel rails for precision, wear resistance, & jaw support
-
Supplied with fully machineable & reversible aluminum soft jaws
Alternate Jaws:
Alternate jaw types can be ordered with the vise base by adding the following suffix to the part numbers:
-
-H for jaw carrier set with hardened steel inserts
-
-S for machineable steel jaws
-
-T for extra tall aluminum jaws sets
-
-W for extra wide aluminum jaw sets
4" (100mm) Production Vises

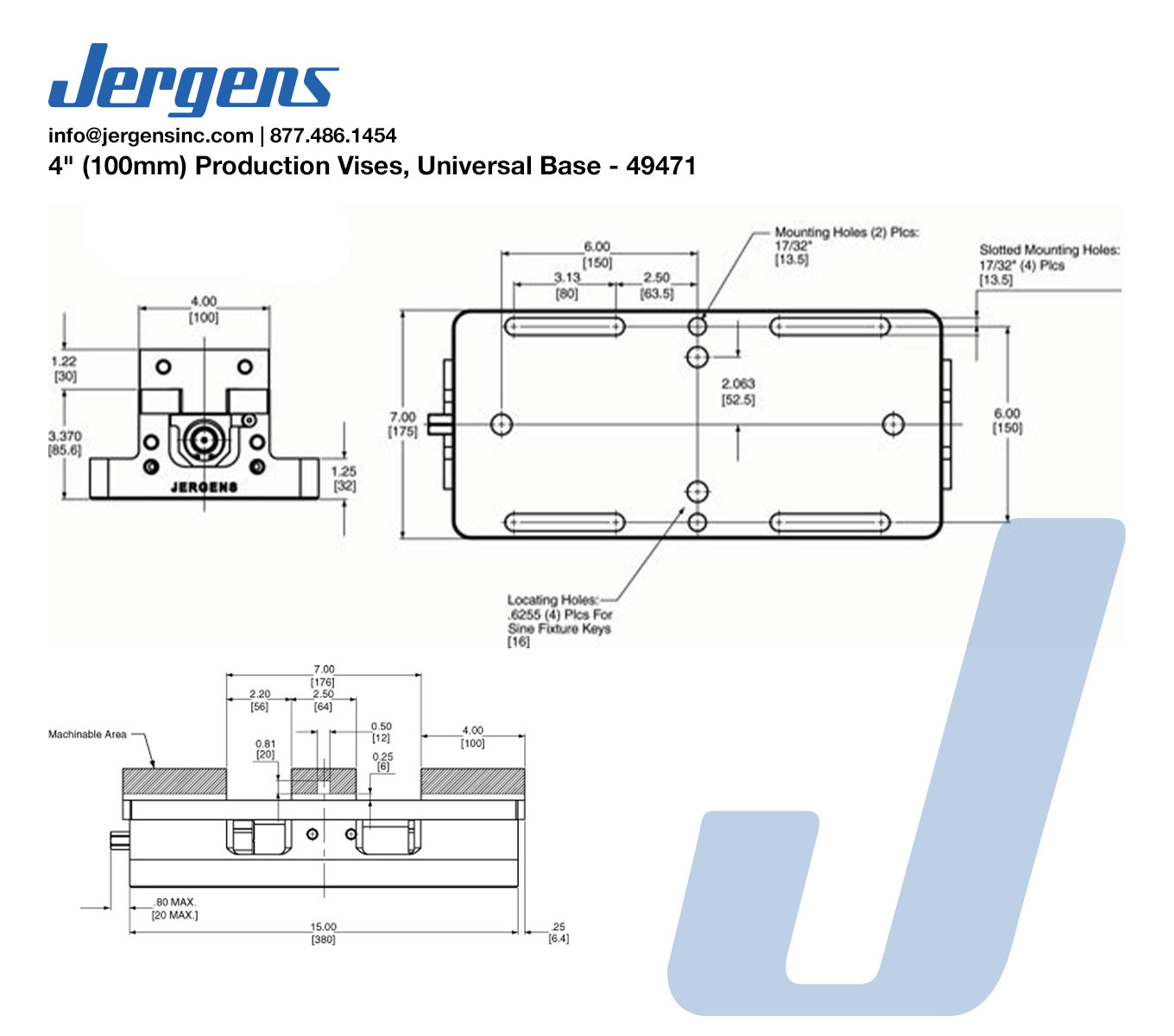

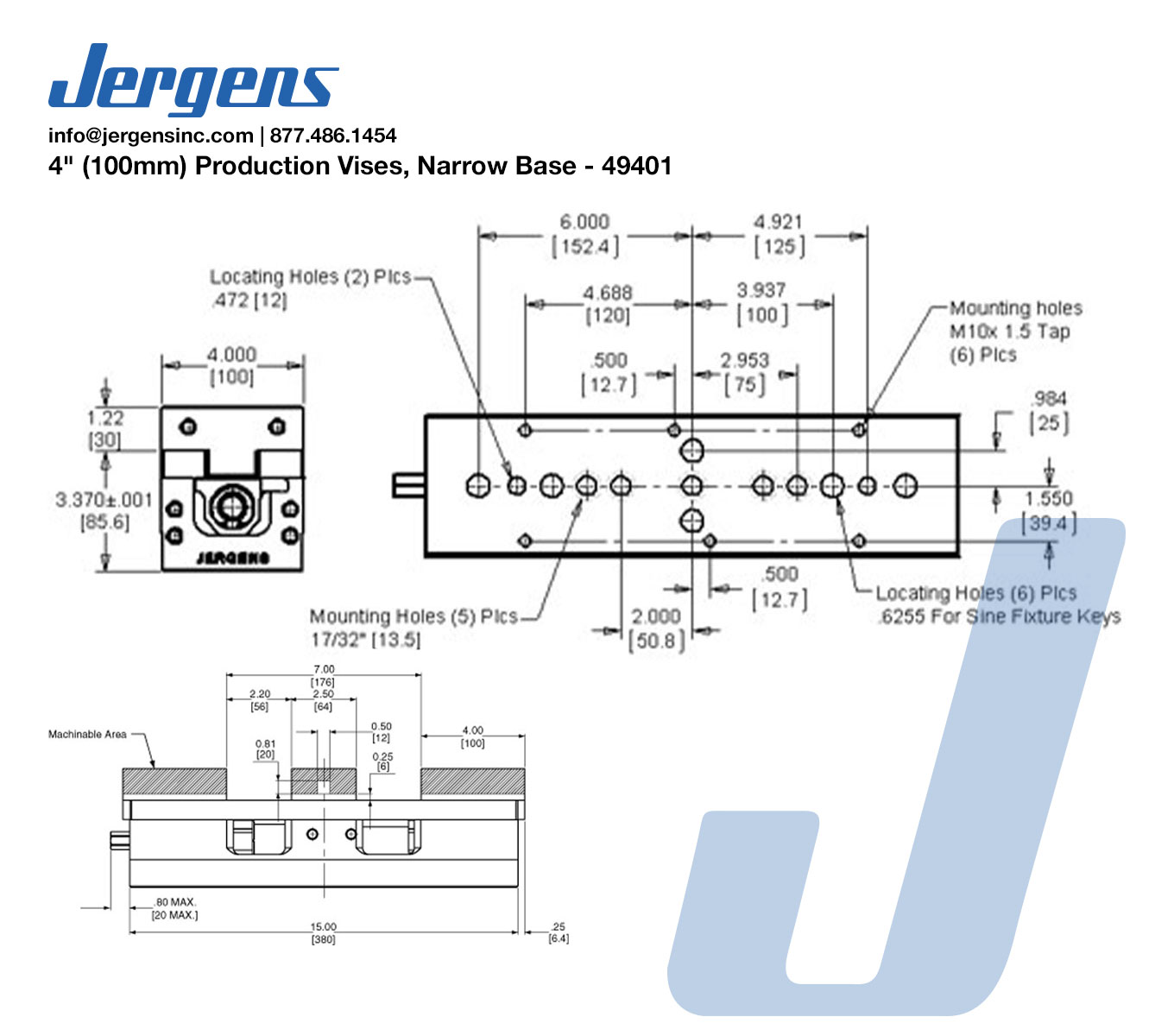

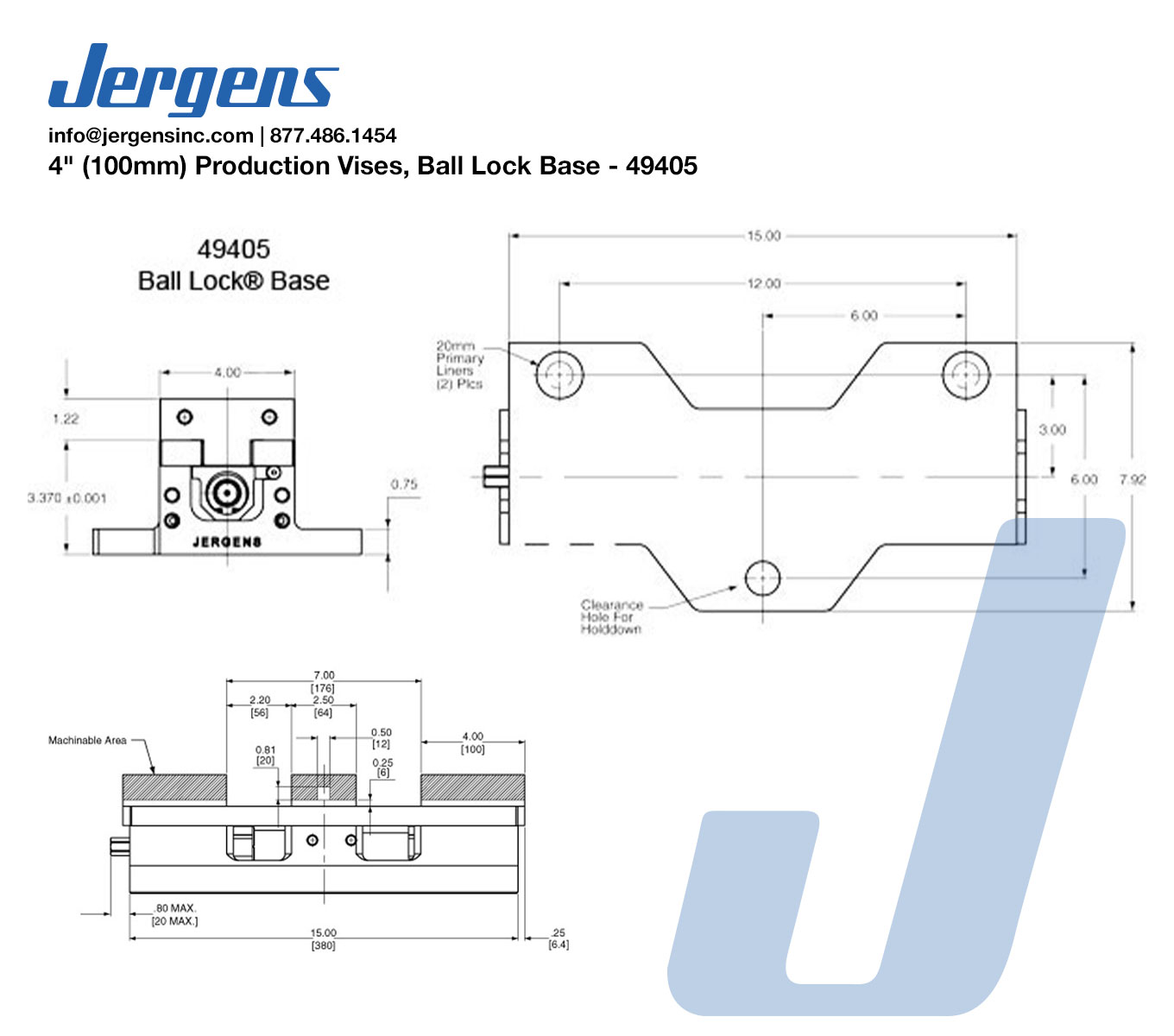

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Base Type | Length (In) | Height (In) | Width (In) | Self-Centering Vise Part Number | Hydraulic Vise Part Number | Ball-Lock Shank Part Number | Shank Size | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 49401 |
|
Inch | Narrow Base | 15 | 3.370 | 4 | 49401SC | 49487 | - | - | 30 |
| 49405 |
|
Inch | Ball Lock® Base | 15 | 3.37 | 7.92 | 49405SC | 49485 | 49601 | 20mm x 3/4" | 31 |
| 49471 |
|
Inch | Universal Base | 15 | 3.370 | 7 | 49471SC | 49483 | - | - | 31 |
| Part Number | CAD | Unit | Base Type | Length (mm) | Height (mm) | Width (mm) | Self-Centering Vise Part Number | Hydraulic Vise Part Number | Ball Lock Shank Part Number | Shank Size | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 69405 |
|
Metric | Ball-Lock® Base | 380 | 85.6 | 200 | 69405SC | 69485 | 49651 | 20mm x 20mm | 14 |
