Ball Lock® 4" Hydraulic Production Vises
Jergens Ball Lock® Hydraulic Production Vises are designed for use with our Ball Lock® Mounting System. Their jigsaw pattern base allows for “nesting” on our Ball Lock® Subplates.
Features, Benefits, & Product Specifications:
-
Base Material: Hard-Coated Machined Aluminum
-
Compact lightweight design for easy setup
-
Internal hydraulics
-
4,700 lbs of clamping force
-
Operates on lower input pressure
-
Supplied with fully machineable & reversible aluminum soft jaws
-
Hardened ground stainless steel rails for precision, wear resistance, & jaw support
-
Openings allow chips to flow out of the vise base
Ball Lock® 4" Hydraulic Production Vises

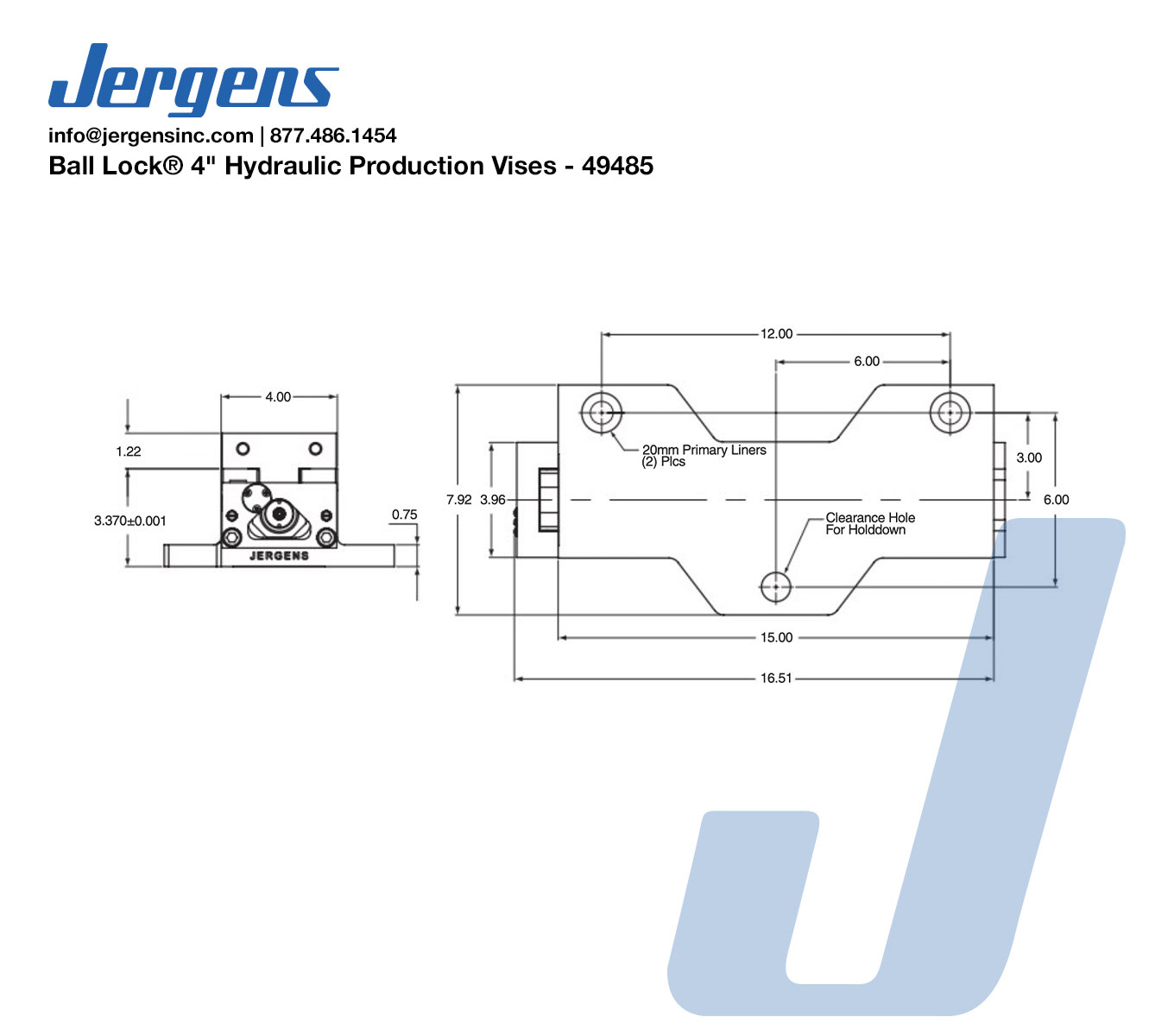

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Base Type | Ball-Lock Shank Part Number | Shank Size | Weight (lbs) |
|---|---|---|---|---|---|---|
| 49485 |
|
Inch | Ball Lock® Base | 49601 | 20mm x 3/4" | 32 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
- Jergens Production Vise System
- Jergens Production Vises Features and Benefits
- Vertical Machine Solutions
- Horizontal Machine Solutions
- Hydraulic Production Vises
- Production Vises
