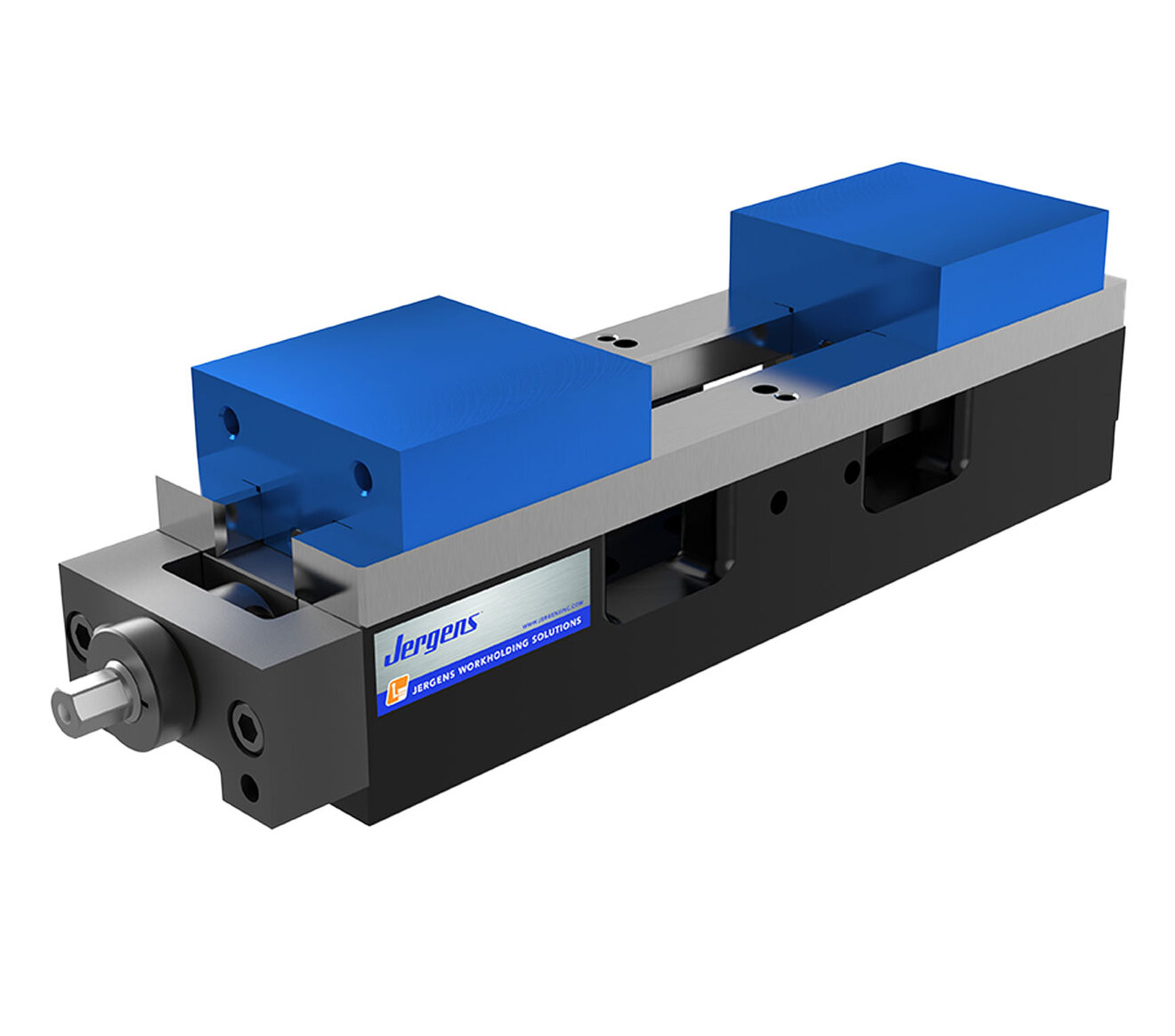

Narrow 4" (100 mm) Self-Centering Vises
Jergens Narrow Self-Centering Vises are designed for stand alone or fixture plate mounting. Their slim design enables high density mounting.
Features, Benefits, & Product Specifications:
-
Base Material: Hard-Coated Machined Aluminum
-
Provide quick, simple fixturing for concentric machining of different sized workpieces
-
Adjustable gib design increases accurracy
-
Compact lightweight design for easy setup
-
Fully sealed, patented lead screw assembly for long maintenance free service
-
Openings allow chips to flow out of the vise base
-
Hardened ground stainless steel rails for precision, wear resistance, & jaw support
-
Supplied with fully machineable & reversible aluminum soft jaws
Narrow 4" (100 mm) Self-Centering Vises
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Weight (lbs) |
|---|---|---|---|
| 49401SC | Inch | 68 |
