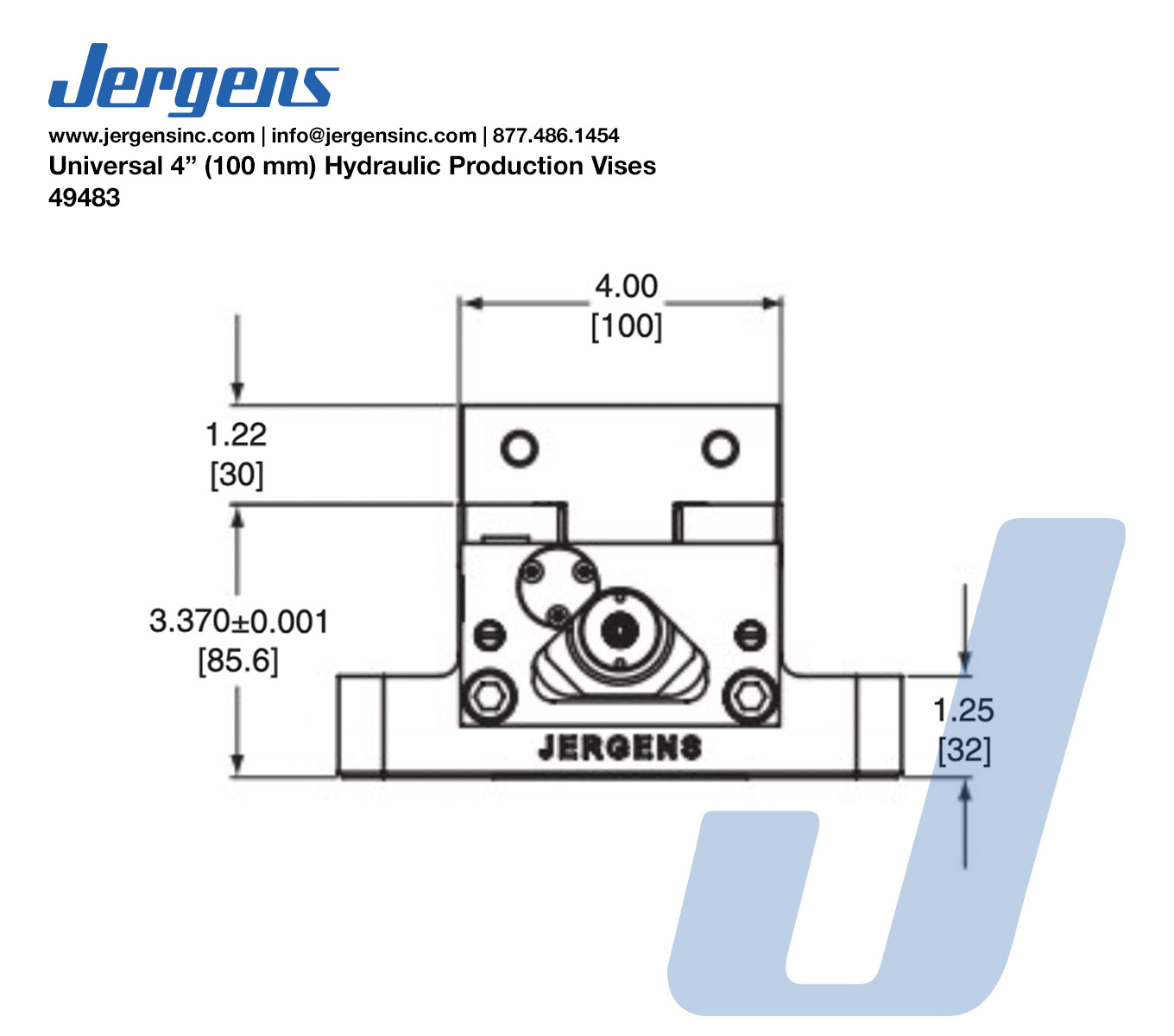

Universal 4" (100 mm) Hydraulic Production Vises

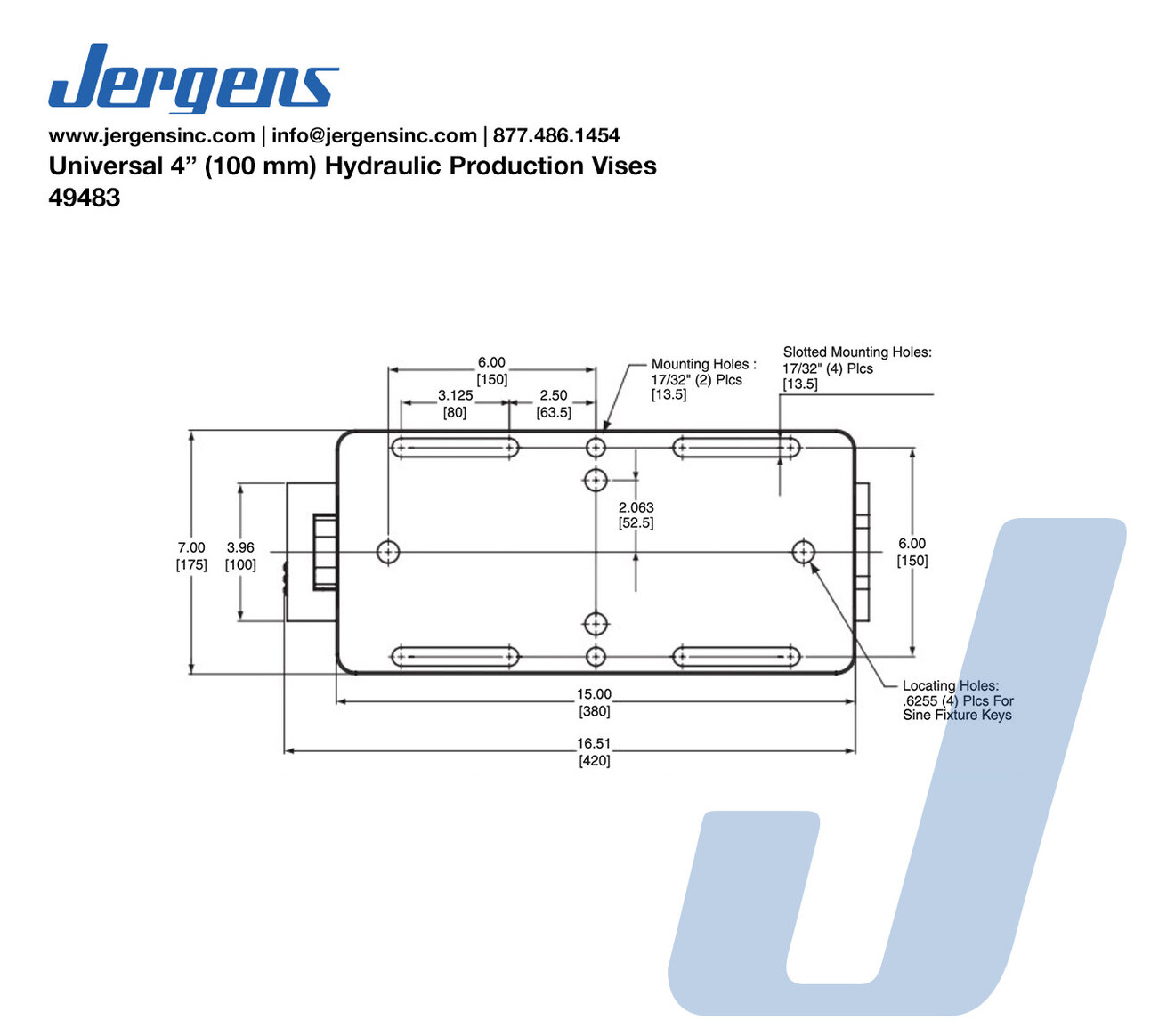

Jergens Universal Hydraulic Production Vises are easy to mount directly to machine tables. Their slotted mounting holes fit most machines.

Features, Benefits, & Product Specifications:
  • Base Material: Hard-Coated Machined Aluminum
  • Compact lightweight design for easy setup
  • Internal hydraulics
  • 4,700 lbs (2,100 kgs) of clamping force
  • Operates on lower input pressure
  • Supplied with fully machineable & reversible aluminum soft jaws
  • Hardened ground stainless steel rails for precision, wear resistance, & jaw support
  • Openings allow chips to flow out of the vise base

Universal 4" (100 mm) Hydraulic Production Vises

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Base Type Weight (lbs)
49483 icon_cad Inch Universal Base 32

Documents and Videos

  • icon_pdf Operating Manual
  • icon_pdf Operating Manual - 81600 ONLY
  • icon_pdf Jergens Production Vise System
  • icon_pdf Jergens Production Vises Features and Benefits
  • icon_pdf Vertical Machine Solutions
  • icon_pdf Horizontal Machine Solutions
  • icon_pdf Hydraulic Production Vises
  • icon_pdf Production Vises
