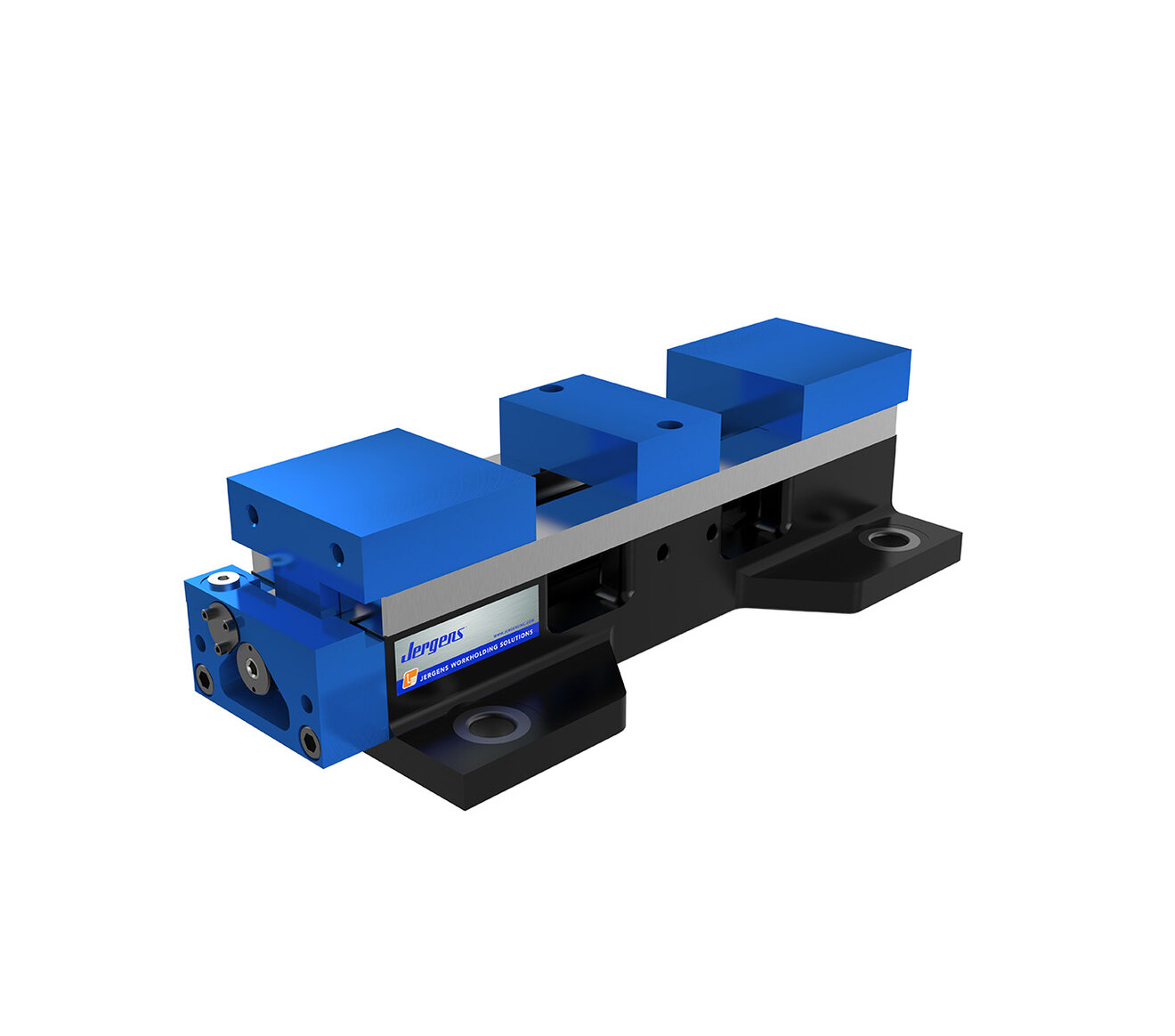

Ball Lock® 100mm Hydraulic Production Vises
Jergens Ball Lock® Hydraulic Production Vises are designed for use with our Ball Lock® Mounting System. Their jigsaw pattern base allows for “nesting” on Ball Lock® subplates.
Features, Benefits, & Product Specifications:
-
Base Material: Hard-Coated Machined Aluminum
-
Compact lightweight design for easy setup
-
Internal hydraulics
-
2,100 kgs of clamping force
-
Operates on lower input pressure
-
Supplied with fully machineable & reversible aluminum soft jaws
-
Hardened ground stainless steel rails for precision, wear resistance, & jaw support
-
Openings allow chips to flow out of the vise base
Ball Lock® 100mm Hydraulic Production Vises

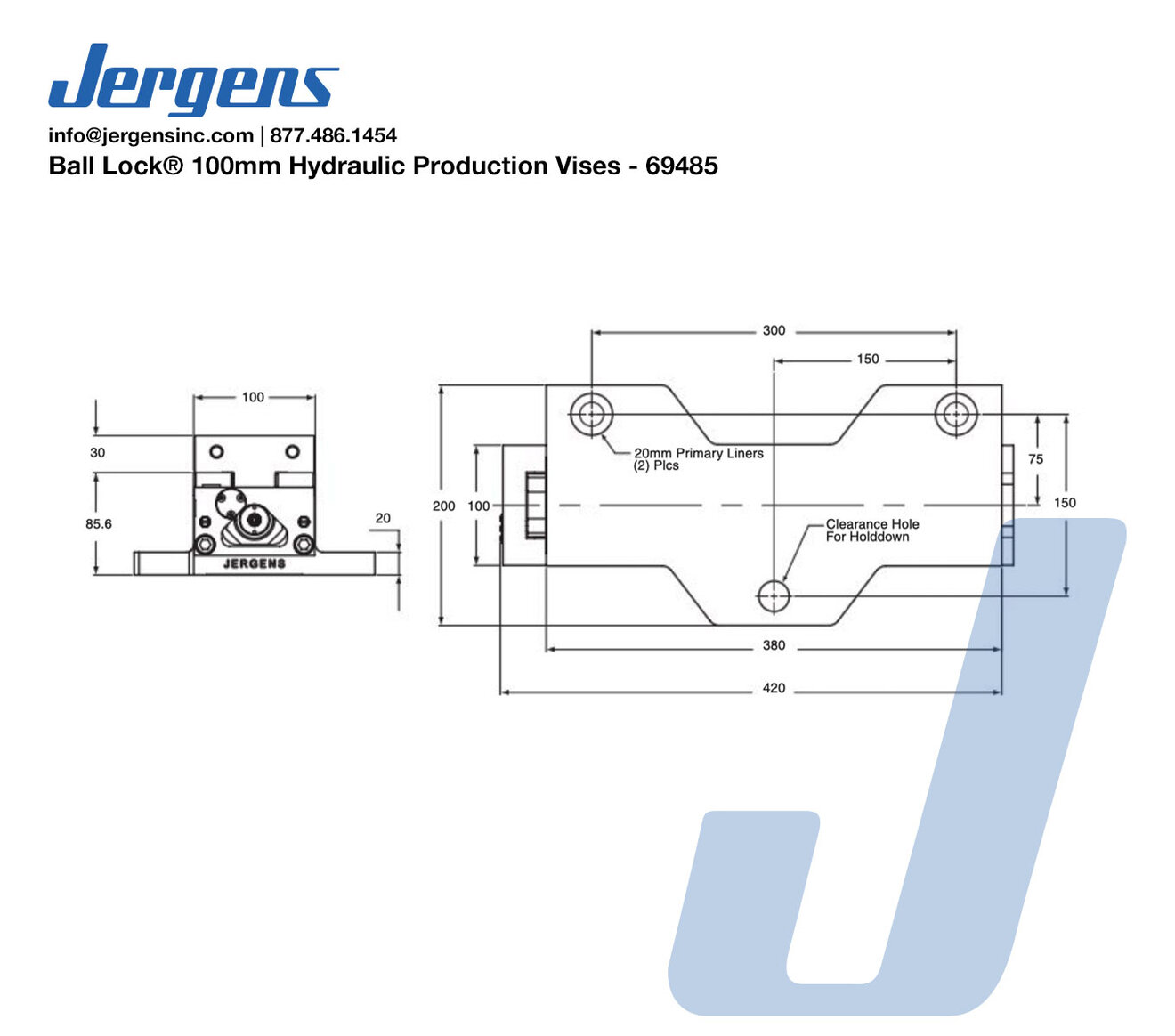

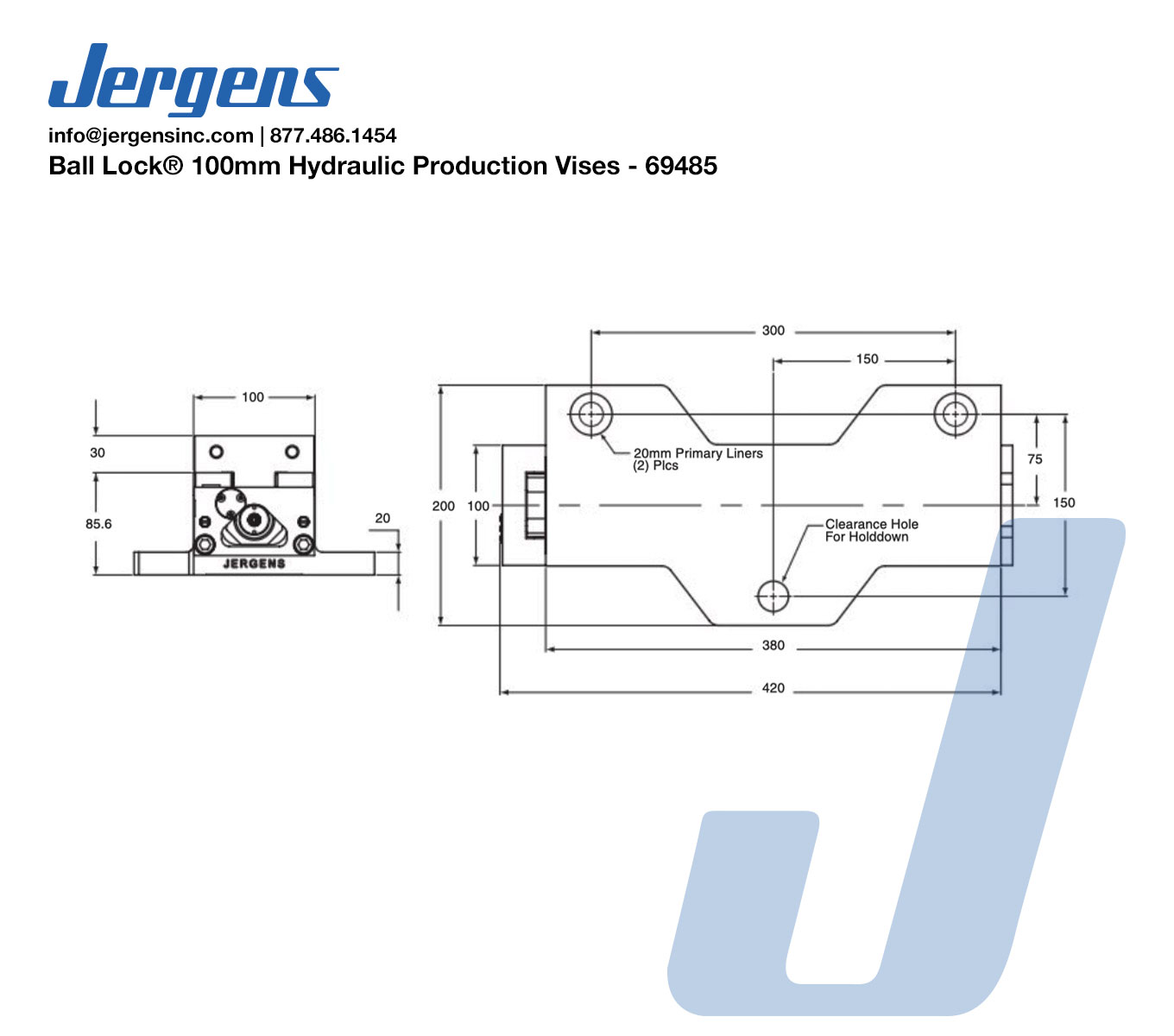

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Base Type | Ball-Lock Shank Part Number | Shank Size | Weight (kgs) |
|---|---|---|---|---|---|---|
| 69485 |
|
Inch | Ball Lock® Base | 49651 | 20mm x 20mm | 15 |
