Narrow 4" (100 mm) Hydraulic Production Vises
Jergens Narrow Hydraulic Production Vises are designed for stand-alone or fixture plate mounting. Their slim design enables high-density mounting.
Features, Benefits, & Product Specifications:
-
Base Material: Hard-Coated Machined Aluminum
-
Compact lightweight design for easy setup
-
Internal hydraulics
-
4,700 lbs (2,100 kgs) of clamping force
-
Operates on lower input pressure
-
Supplied with fully machineable & reversible aluminum soft jaws
-
Hardened ground stainless steel rails for precision, wear resistance, & jaw support
-
Openings allow chips to flow out of the vise base
Narrow 4" (100 mm) Hydraulic Production Vises

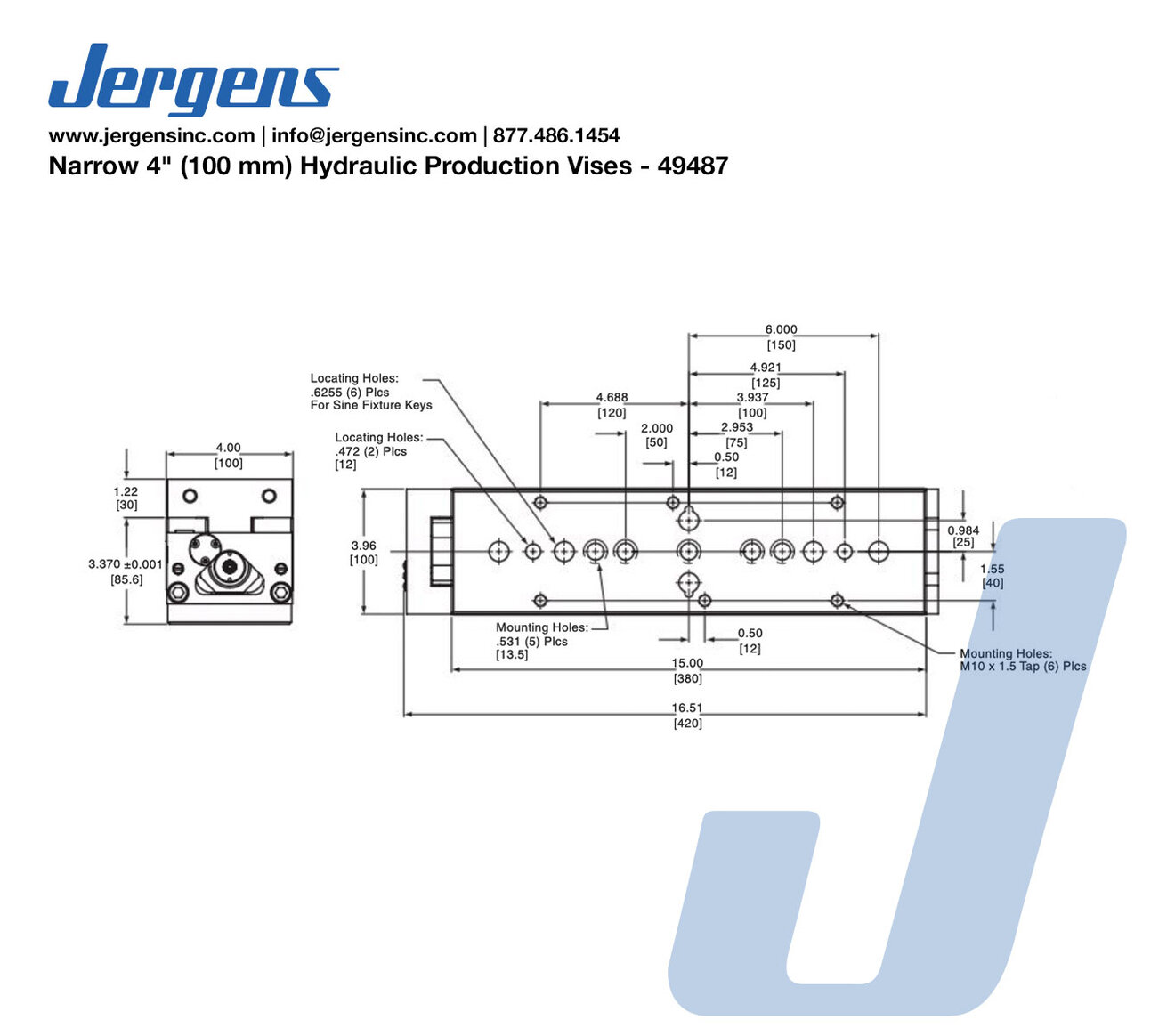

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Base Type | Weight (lbs) |
|---|---|---|---|---|
| 49487 |
|
Inch | Narrow Base | 30 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
- Jergens Production Vise System
- Jergens Production Vises Features and Benefits
- Vertical Machine Solutions
- Horizontal Machine Solutions
- Hydraulic Production Vises
- Production Vises
