Ball Lock® 4" Self-Centering Vises
Jergens Ball Lock® Self-Centering Vises integrate with our Ball Lock® Mounting System. Their jigsaw pattern base allows for “nesting” on our Ball Lock® Subplates.
Features, Benefits, & Product Specifications:
-
Base Material: Hard-Coated Machined Aluminum
-
Provide quick, simple fixturing for concentric machining of different sized workpieces
-
Adjustable gib design increases accurracy
-
Compact lightweight design for easy setup
-
Fully sealed, patented lead screw assembly for long maintenance free service
-
Openings allow chips to flow out of the vise base
-
Hardened ground stainless steel rails for precision, wear resistance, & jaw support
-
Supplied with fully machineable & reversible aluminum soft jaws

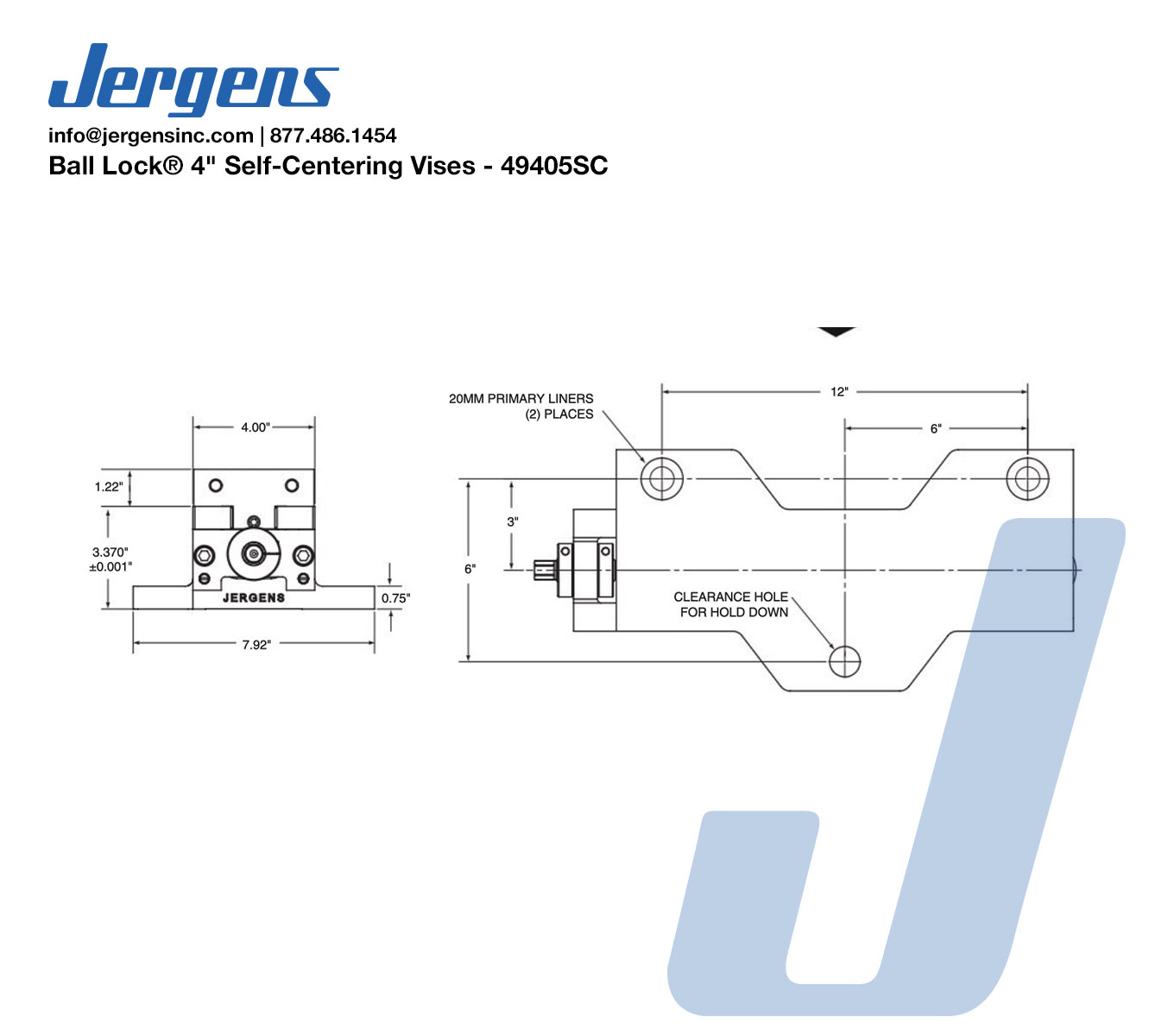

Ball Lock® 4" Self-Centering Vises
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Weight (lbs) |
|---|---|---|---|
| 49405SC | Inch | 36 |
