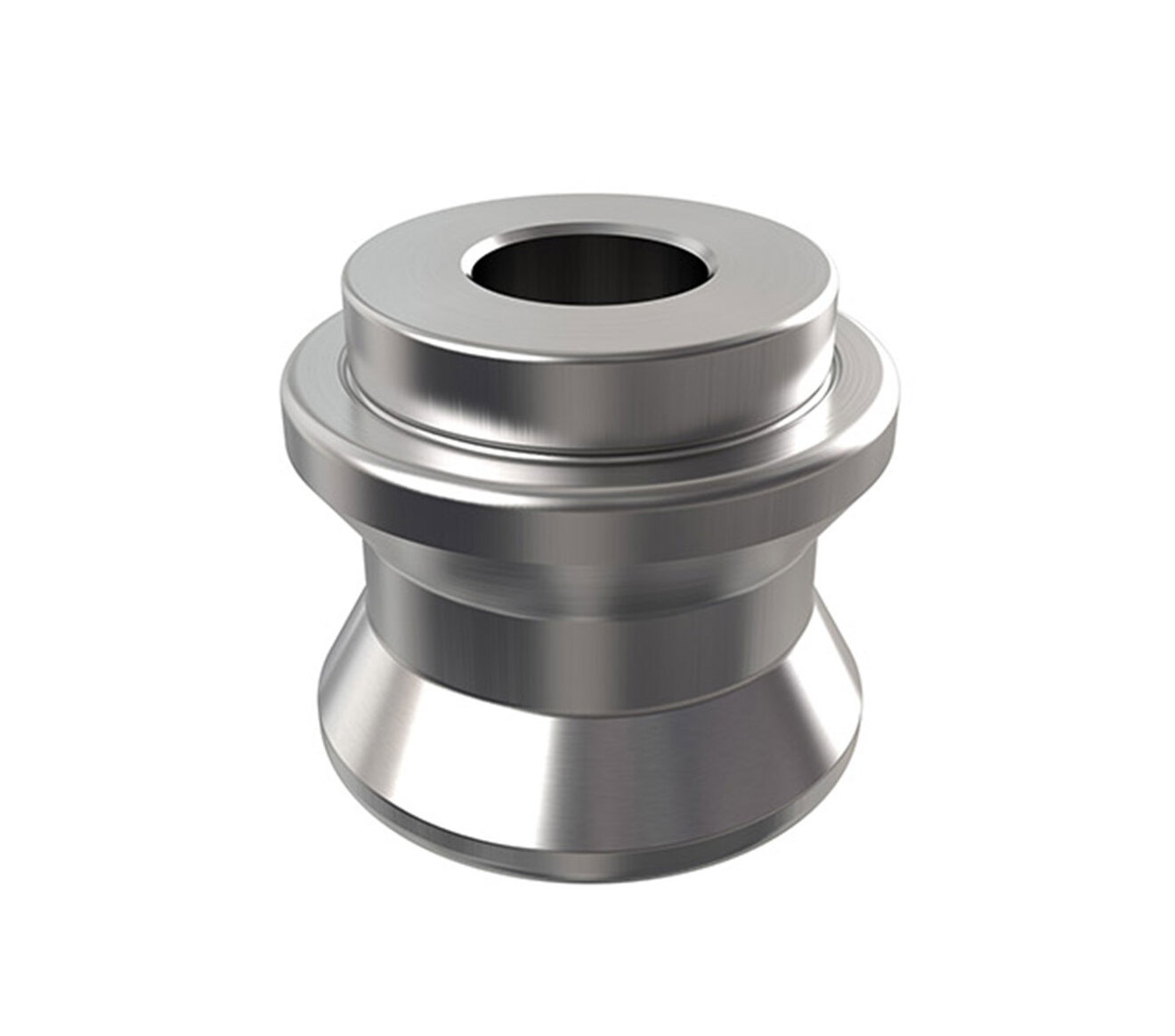

ZPS K5 Pull Studs
Jergens ZPS K5 Pull Studs are designed for all of our ZPS K5 Clamping Modules.
Features, Benefits, & Product Specifications:
-
Material: Hardened Stainless Steel
-
Installation diagrams available upon request
ZPS K5 Pull Studs
Select a part number for CAD drawings, price and stock availability.

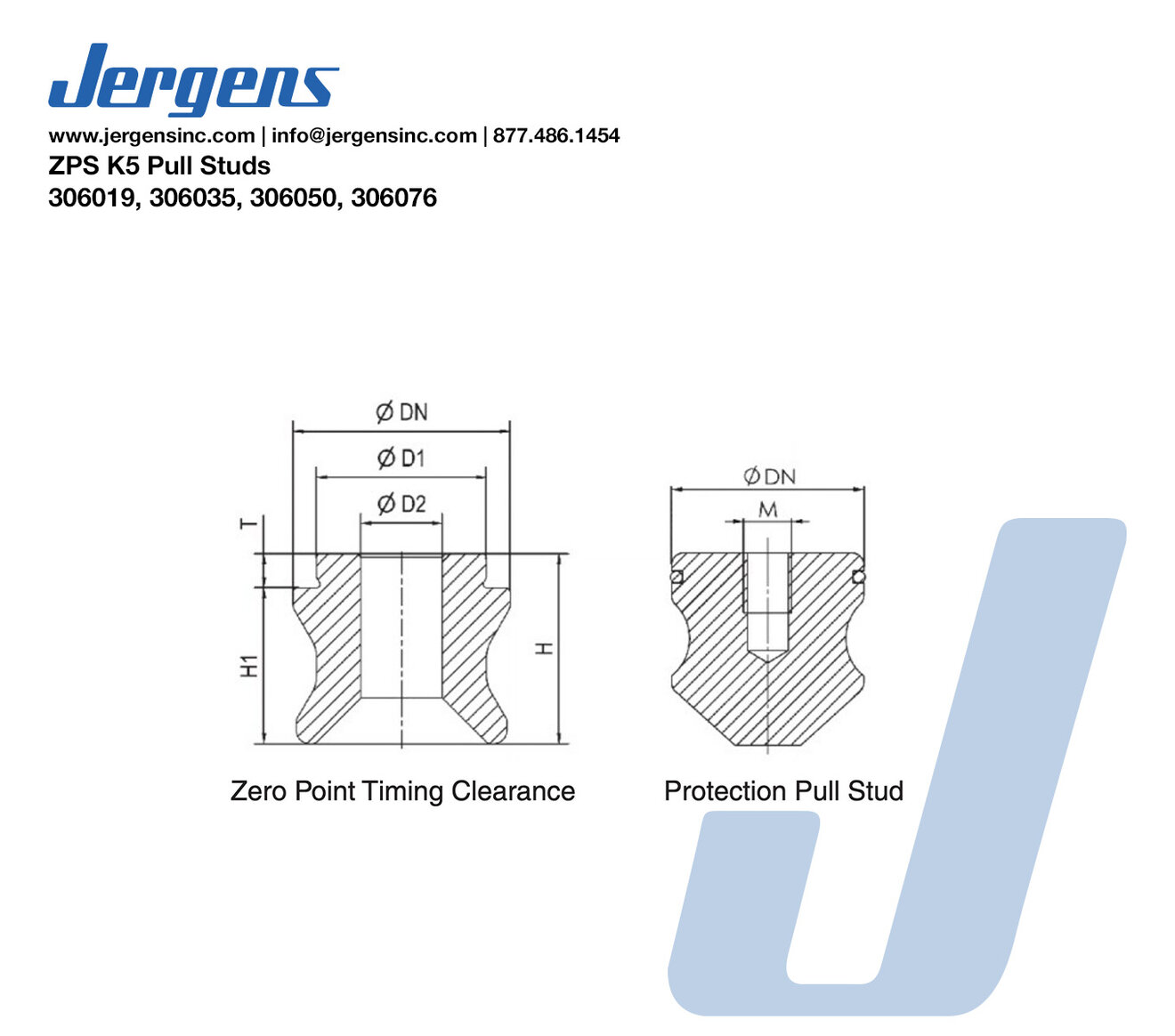

| Part Number | CAD | Unit | Size | Description | DN (mm) | D1 (mm) | D2 (mm) | H (mm) | H1 (mm) | M (mm) | T (mm) | Weight (g) | Engagement Screw Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 306019 |
|
Metric | K5 | Zero Point Stud | 15 | 10 | 6 | 12.7 | 10.2 | - | 2.5 | 15 | 306092 |
| 306035 |
|
Metric | K5 | Timing Stud | 15 | 10 | 6 | 12.7 | 10.2 | - | 2.5 | 15 | 306092 |
| 306050 |
|
Metric | K5 | Clearance Stud | 14.8 | 10 | 6 | 12.7 | 10.2 | - | 2.5 | 15 | 306092 |
| 306076 |
|
Metric | K5 | Protection Plug | 14.8 | - | - | 10.2 | - | M6 | 8.0 | 12 | - |
