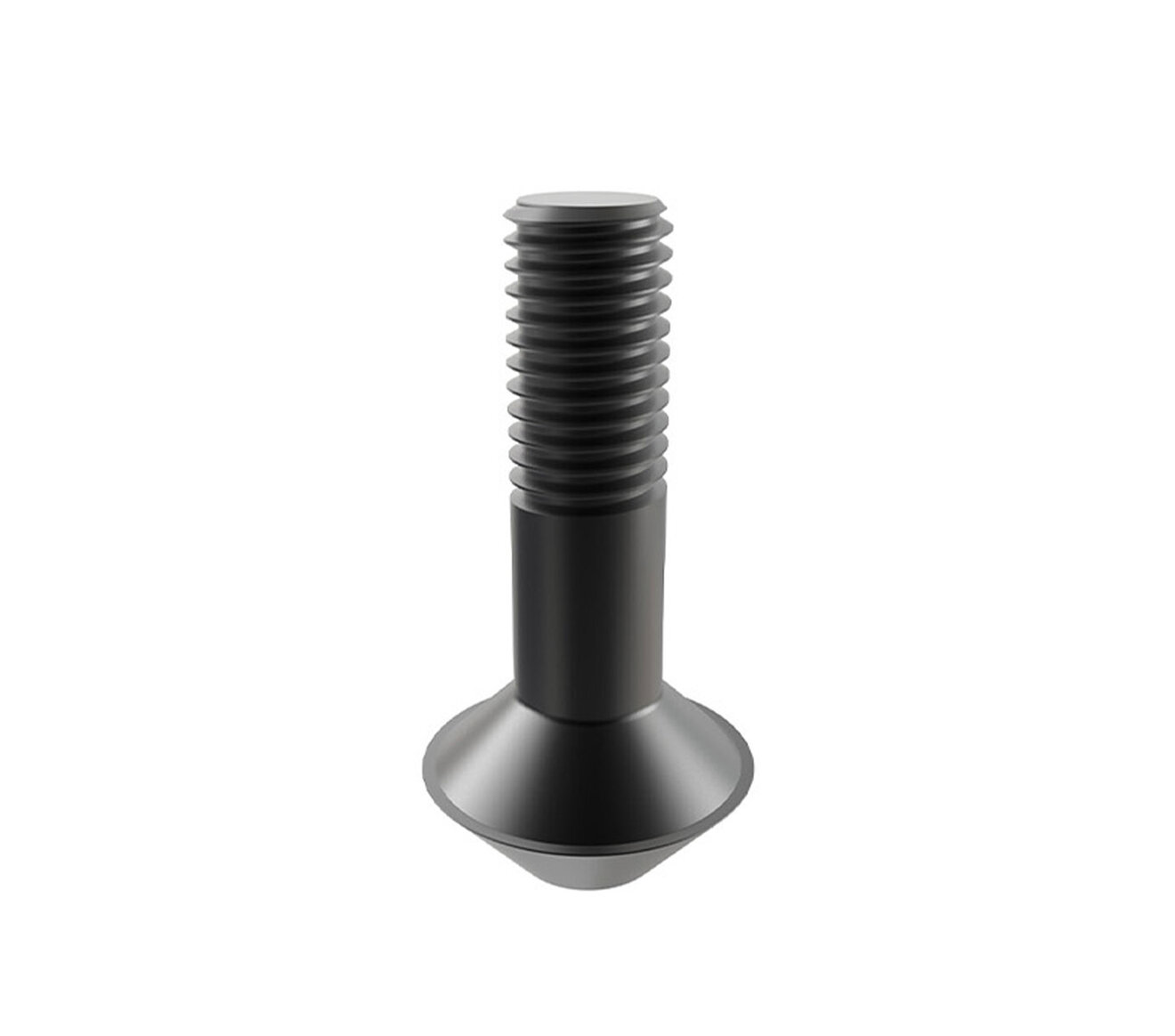

ZPS Engagement Screws
Jergens ZPS Engagement Screws are designed for installation and surface mounted clamping modules.
Features, Benefits, & Product Specifications:
-
Strength Class: 10.9
ZPS Engagement Screws
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Size | M | L (mm) | L1 (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| 303222 |
|
Metric | K20 | M12 x 1.75 | 54 | 9 | 70 |
| 303230 |
|
Metric | K40 | M16 x 2.0 | 69 | 10 | 130 |
| 303578 |
|
Metric | K10 | M8 x 1.25 | 37 | 6 | 30 |
| 306092 |
|
Metric | K5 | M6 x 1.0 | 25 | 3.4 | 18 |
