STAYLOCK® Block Clamps
Jergens STAYLOCK® Block Clamps are multi-purpose utility clamps designed for many versatile applications.
Features, Benefits, & Product Specifications:
-
May be mounted for either vertical or horizontal clamping
-
Use strap clamps or similar workholding devices for maximum adaptability
-
Plunger has a 1/4"-28 thread on the I.D. for use with various contact points
STAYLOCK® Block Clamps
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Operating Volume (cu. in.) | Minimum Operating Pressure (psi) | Maximum Operating Pressure (psi) | Force Pressure Ratio | Clamping Stroke (In) | Maximum Output Force (lbs) | Repair Kit Part Number | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 62831 | Inch | 1.1 | 500 | 5000 | 2:1 | 0.18 | 10000 | 62187 | 6.5 |
| Part Number | CAD | Unit | Operating Volume (cu. cm.) | Minimum Operating Pressure (bars) | Maximum Operating Pressure (bars) | Force Pressure Ratio | Clamping Stroke (mm) | Maximum Output Force (kgs) | Repair Kit Part Number | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|

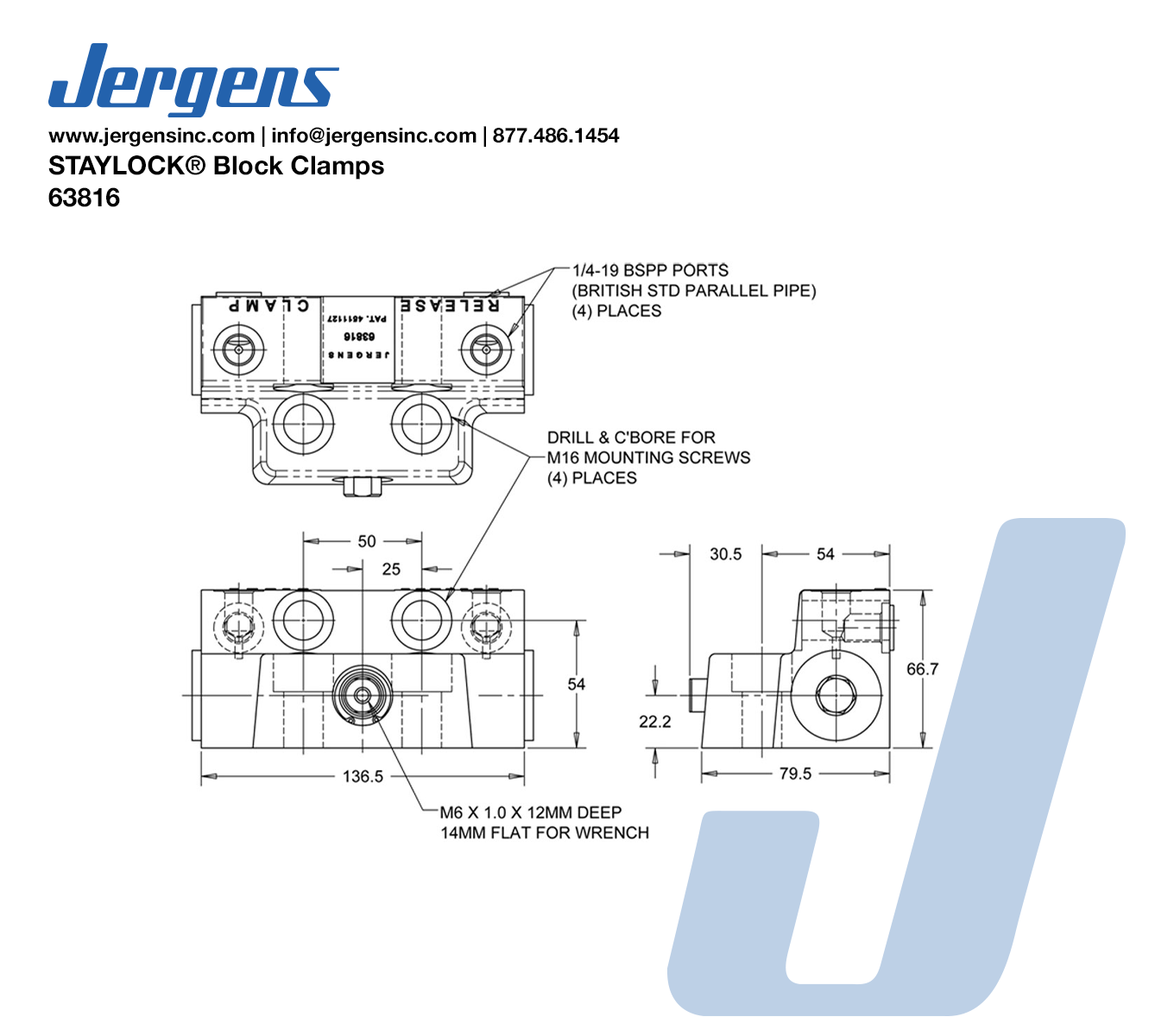

| 63816 |
|
Metric | 18 | 14 | 350 | 12.5:1 | 4.7 | 4500 | - | 2.93 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
