Large Swing Cylinders

Jergens Small Swing Cylinders are versatile and can be used as single or double-acting rotating clamps or push/pull cylinders. The piston in the Swing Cylinders rotates 90° to the right, but may easily be changed to 90° left rotation or no rotation at all.
Features, Benefits, & Product Specifications:
  • Standard without an arm
  • Single or Double Arms are available (see bottom table)
  • Can be mounted using (4) 3/8" cap screws or the 1 7/8"-16 O.D. thread of the cylinder
  • Optional components, including Mounting Blocks and Jam Nuts, are available
  • Can be used as a non-rotating clamp
  • The Max. recommended flow rate is 90 cu. in./minute per clamp (approximately 1 second clamp time)
Note(s):
  • Arm length can affect clamping pressures (see graph in Workholding Catalog).
  • WARNING: All Swing Cylinders must be used with Flow Limit Valves to dampen the rotating action.


Documents

Large Swing Cylinders

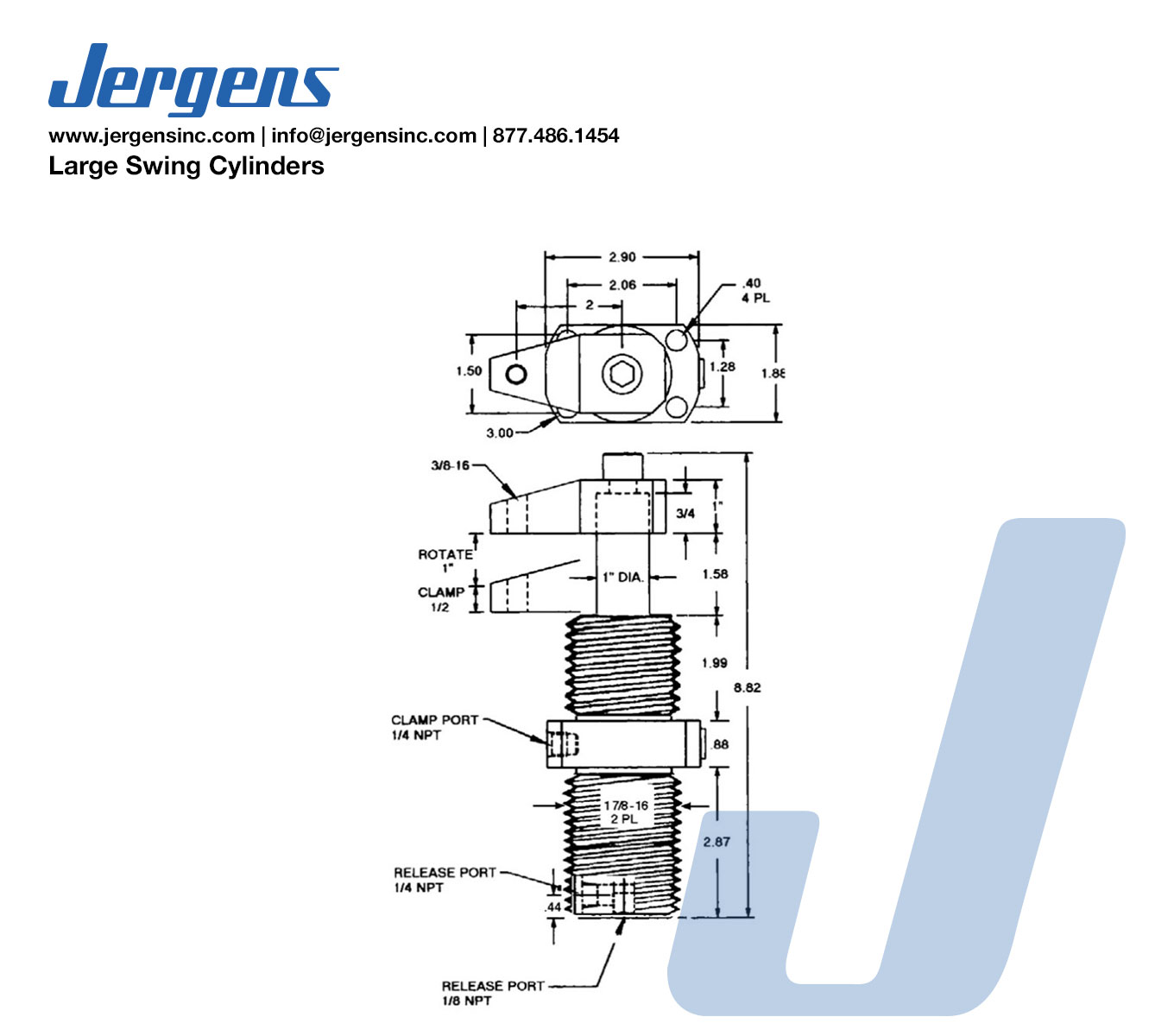

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Pull Operating Volume Pull Effective Piston Area Pull Minimum Operating Pressure Pull Maximum Operating Pressure Pull Maximum Output Force Push Operating Volume Push Effective Piston Area Push Maximum Operating Pressure Push Maximum Output Force Stroke Full Stroke Rotating Stroke Clamping Weight Repair Kit Part Number Hex Jam Nut Part Number Mounting Bracket Part Number Single Arm Part Number Double Arm Part Number
60681 Inch 1.5 (Cu. in) 0.98 in2 200 psi 3000 psi 2900 lbs 2.7 (Cu. in) 1.77 in2 3000 psi 5300 lbs 1.5 in 1 in 0.5 in 5 lbs 62196 60967 60954 60921 60922
