Threaded Flange Mountings
Jergens Threaded Flange Mountings gives users the ability to secure our Threaded Cylinders and easily connect them to floors and walls.
Features, Benefits, & Product Specifications:
-
Material: C1018 Low Carbon Steel
-
Finish: Black Oxide

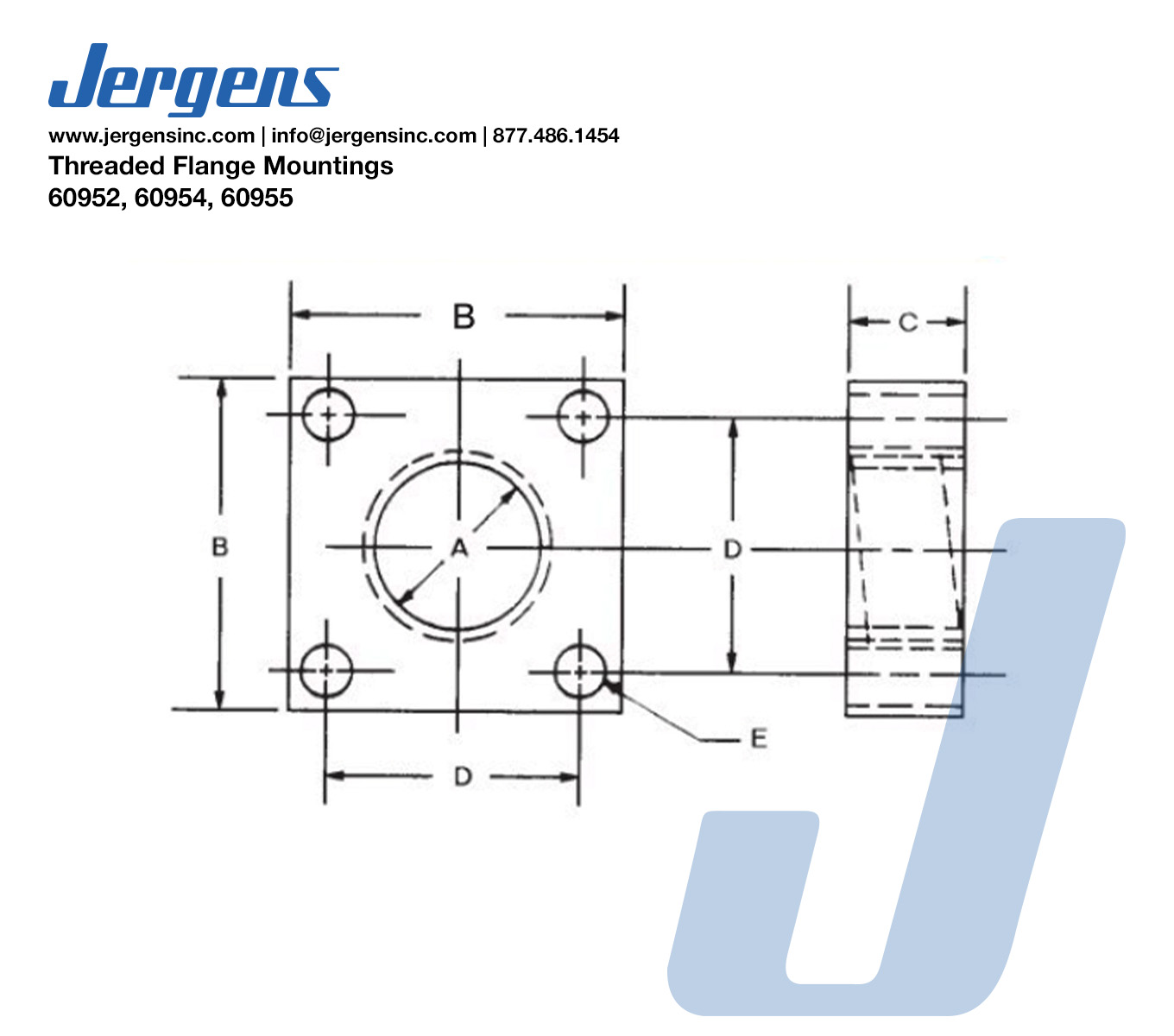

Threaded Flange Mountings
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A | B (In) | C (In) | D (In) | E (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| 60952 |
|
Inch | 1 5/16-18 | 1 5/8 | 1/2 | 1 1/4 | 17/64 | 0.18 |
| 60954 | Inch | 1 9/16-16 | 2 | 1 | 1 1/2 | 17/64 | 0.625 | |
| 60955 |
|
Inch | 1 7/8-16 | 2 1/4 | 1 | 1 3/4 | 21/64 | 0.56 |
