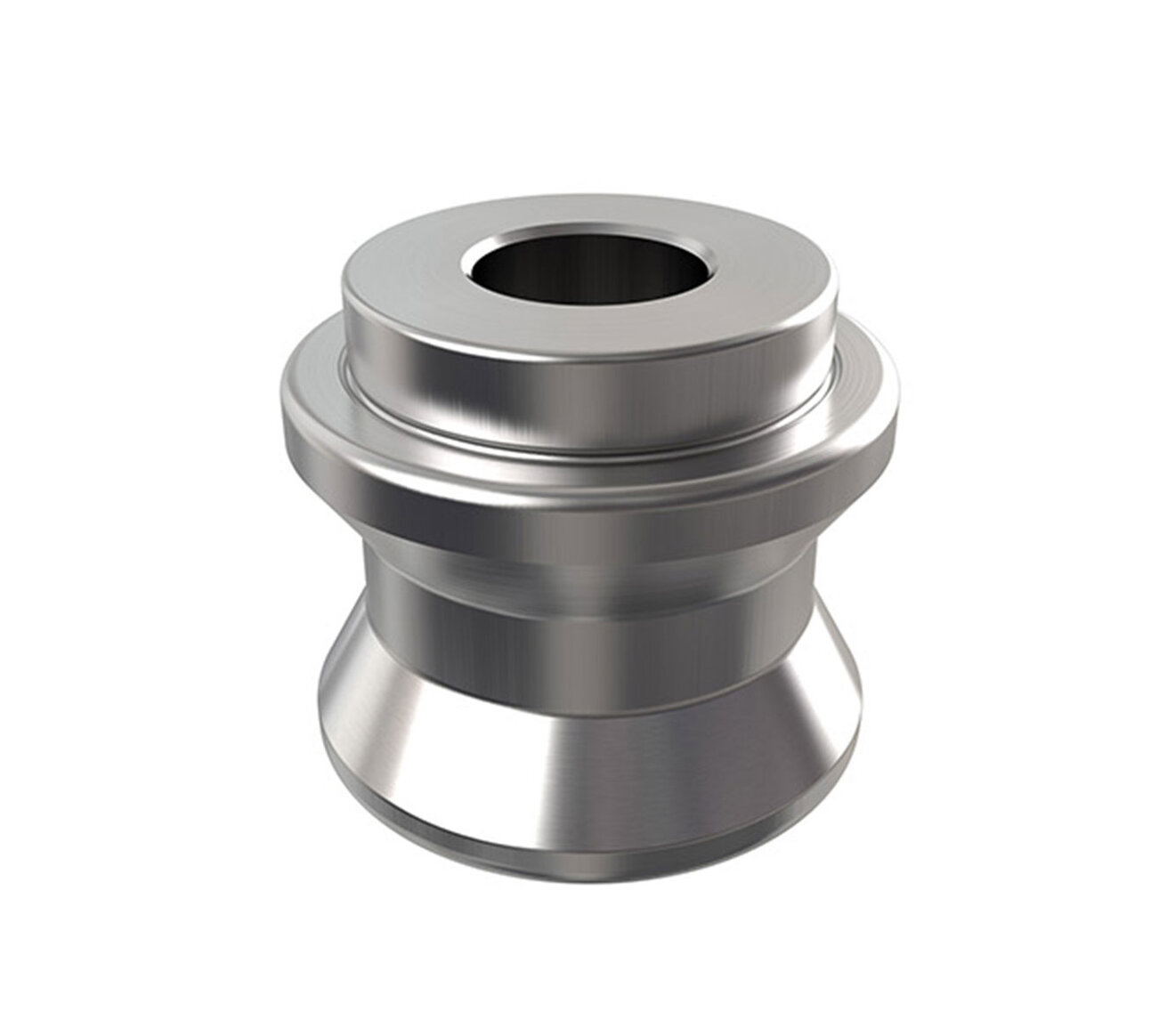

ZPS K40 Pull Studs
Jergens ZPS K40 Pull Studs are designed for all of our ZPS K40 Clamping Modules.
Features, Benefits, & Product Specifications:
-
Material: Hardened Stainless Steel
-
Installation diagrams available upon request
ZPS K40 Pull Studs

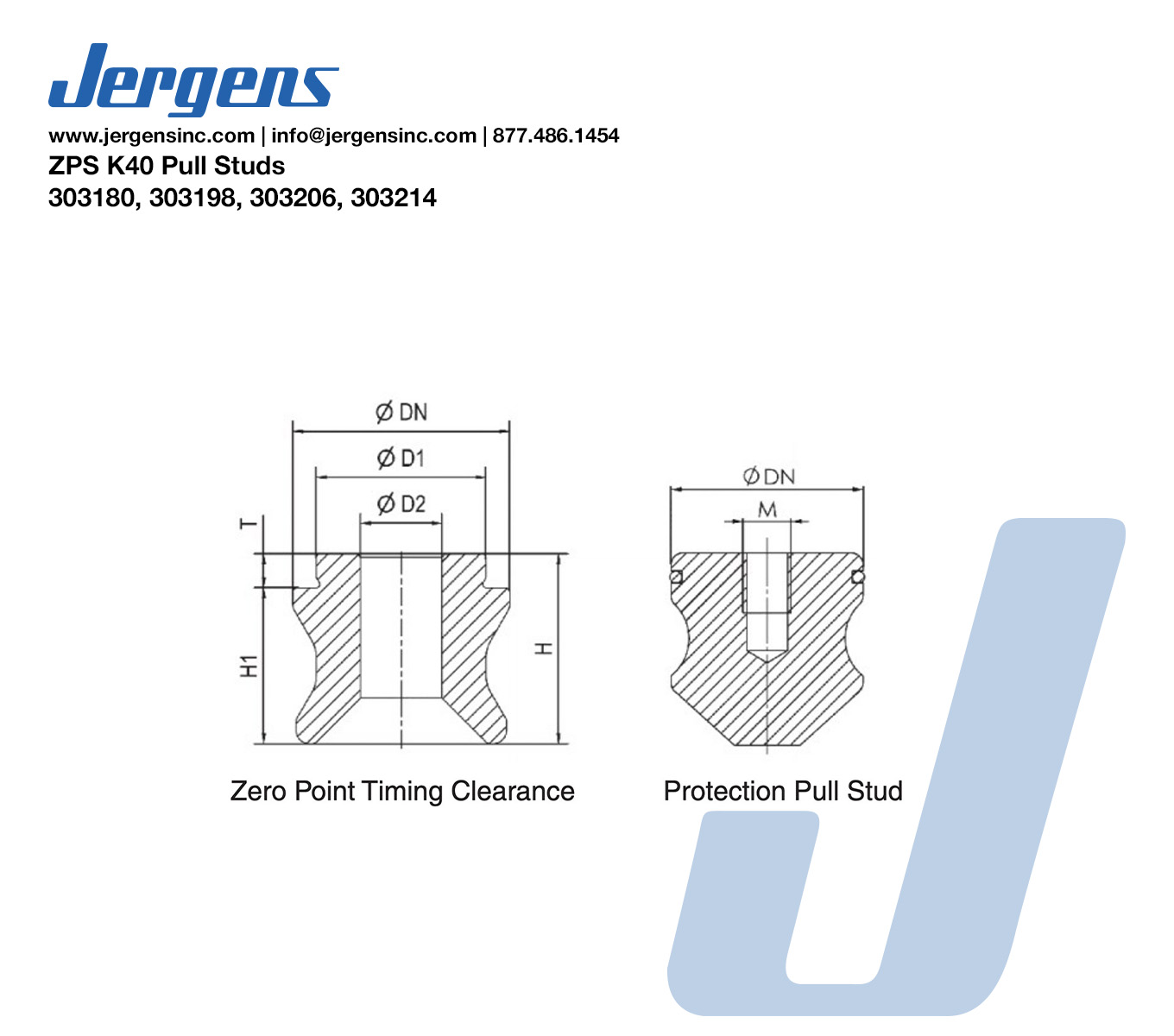

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Size | Description | DN (mm) | D1 (mm) | D2 (mm) | H (mm) | H1 (mm) | M (mm) | T (mm) | Weight (g) | Engagement Screw Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 303180 |
|
Metric | K40 | Zero Point Stud | 40 | 25 | 16 | 34 | 29 | - | 5 | 180 | 303230 |
| 303198 |
|
Metric | K40 | Timing Stud | 40 | 25 | 16 | 34 | 29 | - | 5 | 180 | 303230 |
| 303206 |
|
Metric | K40 | Clearance Stud | 39.8 | 25 | 16 | 34 | 29 | - | 5 | 180 | 303230 |
| 303214 |
|
Metric | K40 | Protection Plug | 39.8 | - | - | 29 | - | M8 | 20 | 180 | - |
