ZPS K20 Pull Studs

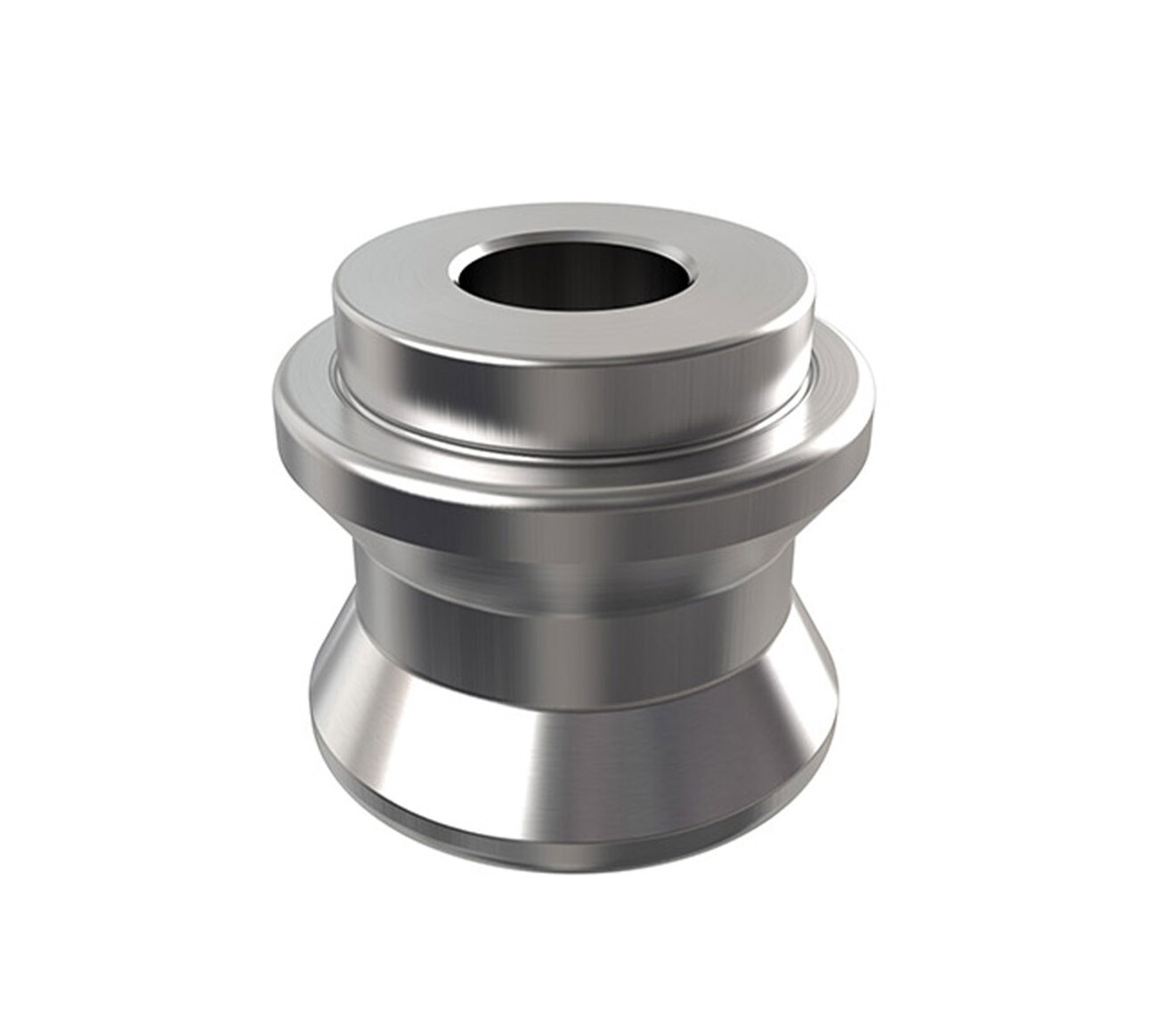

Jergens ZPS K20 Pull Studs are designed for all of our ZPS K20 Clamping Modules.
Features, Benefits, & Product Specifications:
-
Material: Hardened Stainless Steel
-
Installation diagrams available upon request

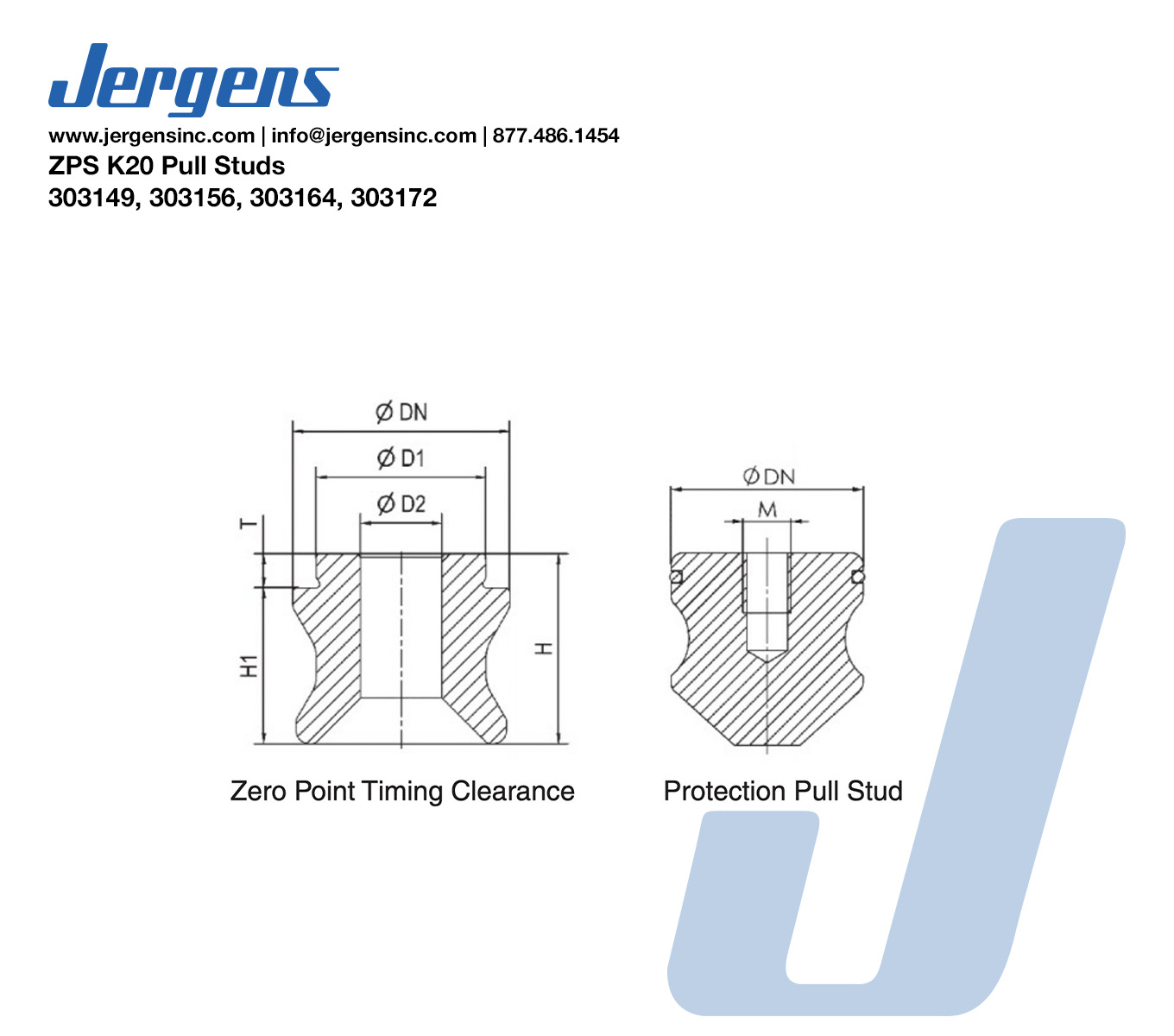

ZPS K20 Pull Studs
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Size | Description | DN (mm) | D1 (mm) | D2 (mm) | H (mm) | H1 (mm) | M (mm) | T (mm) | Weight (g) | Engagement Screw Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 303149 |
|
Metric | K20 | Zero Point Stud | 32 | 25 | 12 | 28 | 23 | - | 5 | 110 | 303222 |
| 303156 |
|
Metric | K20 | Timing Stud | 32 | 25 | 12 | 28 | 23 | - | 5 | 110 | 303222 |
| 303164 |
|
Metric | K20 | Clearance Stud | 31.8 | 25 | 12 | 28 | 23 | - | 5 | 110 | 303222 |
| 303172 |
|
Metric | K20 | Protection Plug | 31.8 | - | - | 23 | - | M8 | 16 | 110 | - |
