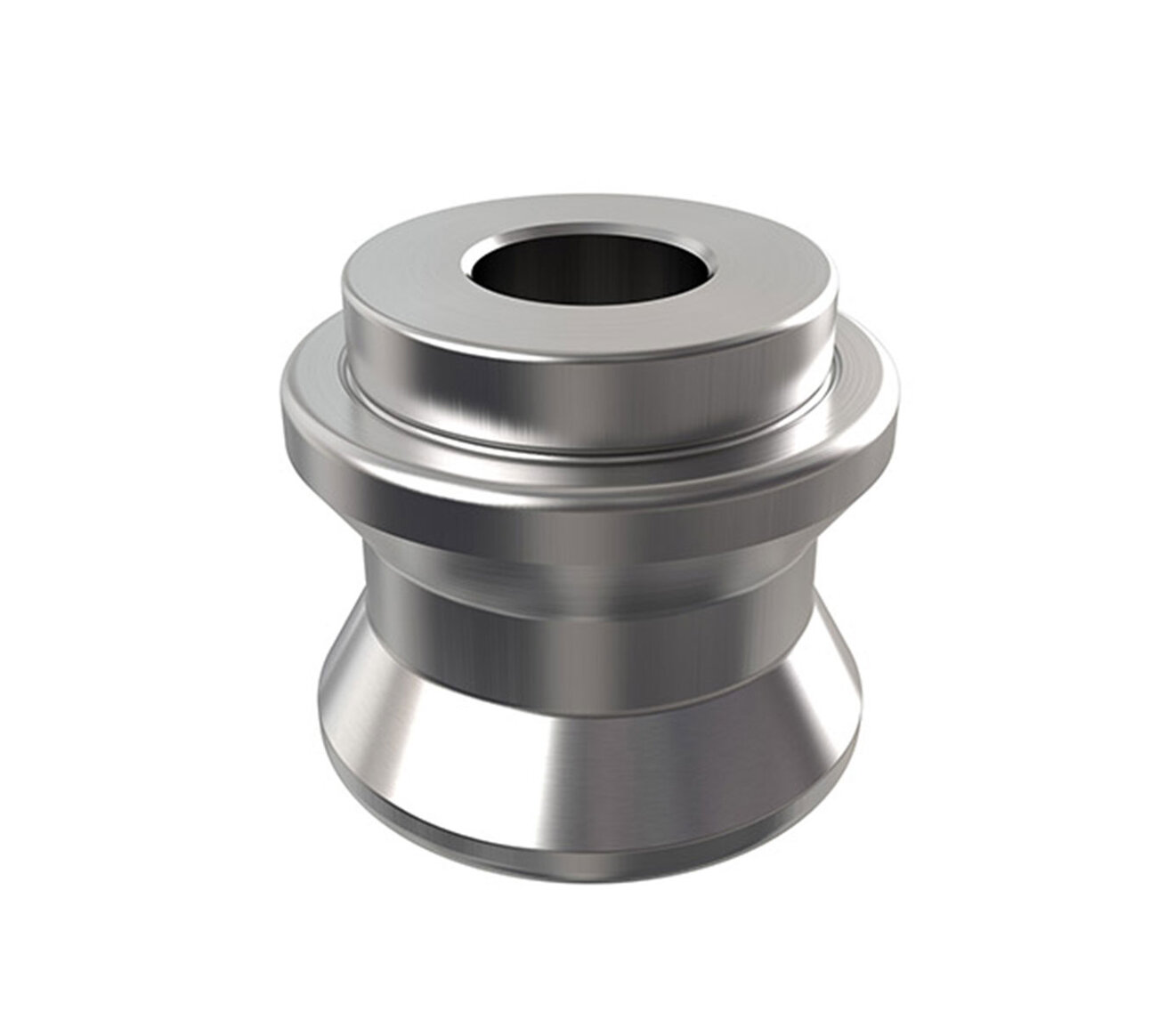

ZPS K10 Pull Studs
Jergens ZPS K10 Pull Studs are designed for all of our ZPS K10 Clamping Modules.
Features, Benefits, & Product Specifications:
-
Material: Hardened Stainless Steel
-
Installation diagrams available upon request
ZPS K10 Pull Studs

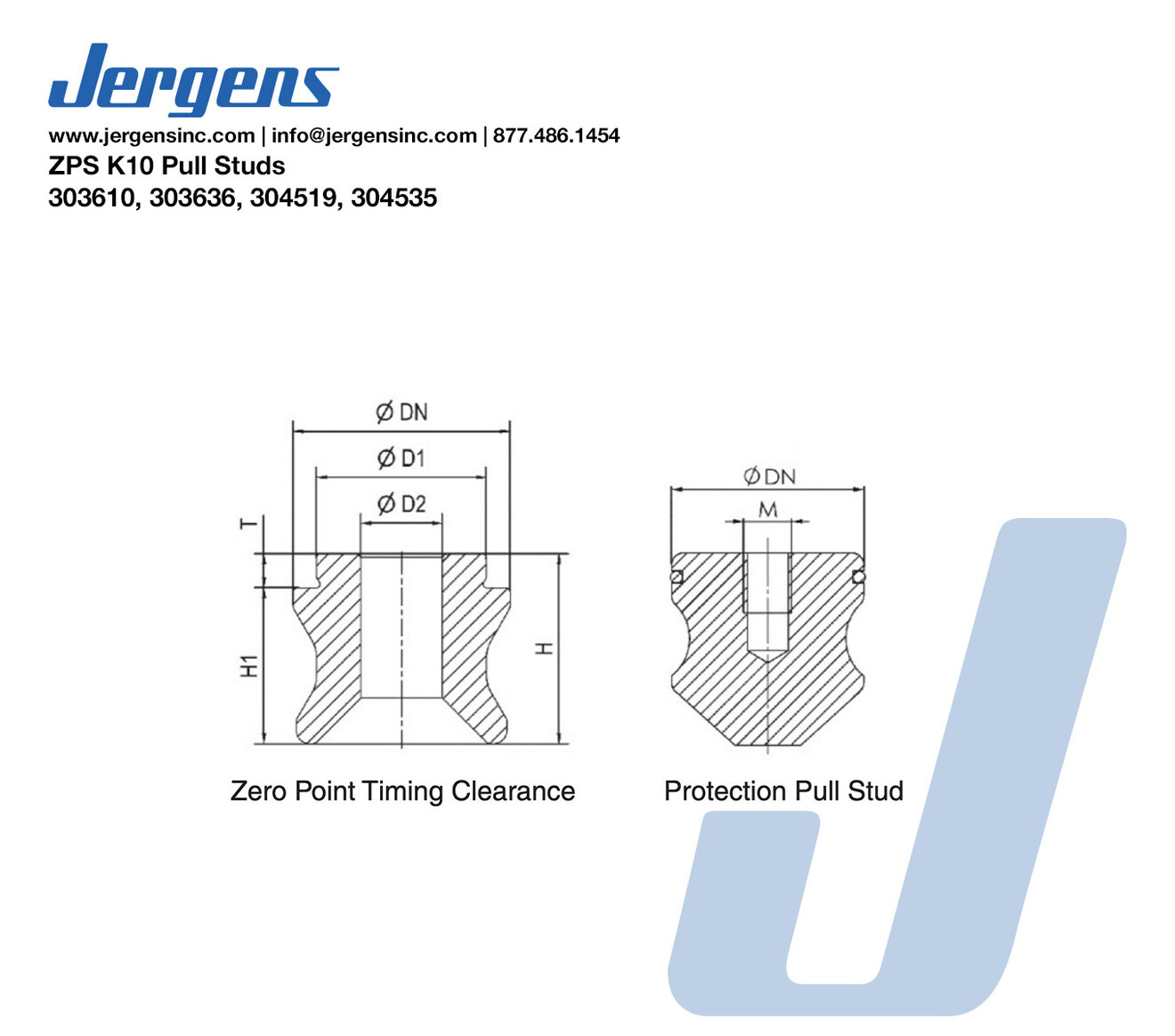

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Size | Description | DN (mm) | D1 (mm) | D2 (mm) | H (mm) | H1 (mm) | M (mm) | T (mm) | Weight (g) | Engagement Screw Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 303610 |
|
Metric | K10 | Zero Point Stud | 22 | 15 | 8 | 19 | 16 | - | 3 | 30 | 303578 |
| 303636 |
|
Metric | K10 | Timing Stud | 22 | 15 | 8 | 19 | 16 | - | 3 | 30 | 303578 |
| 304519 |
|
Metric | K10 | Clearance Stud | 21.8 | 15 | 8 | 19 | 16 | - | 3 | 30 | 303578 |
| 304535 |
|
Metric | K10 | Protection Plug | 21.8 | - | - | 16 | - | M8 | 12 | 30 | - |
