Work Support Jacks

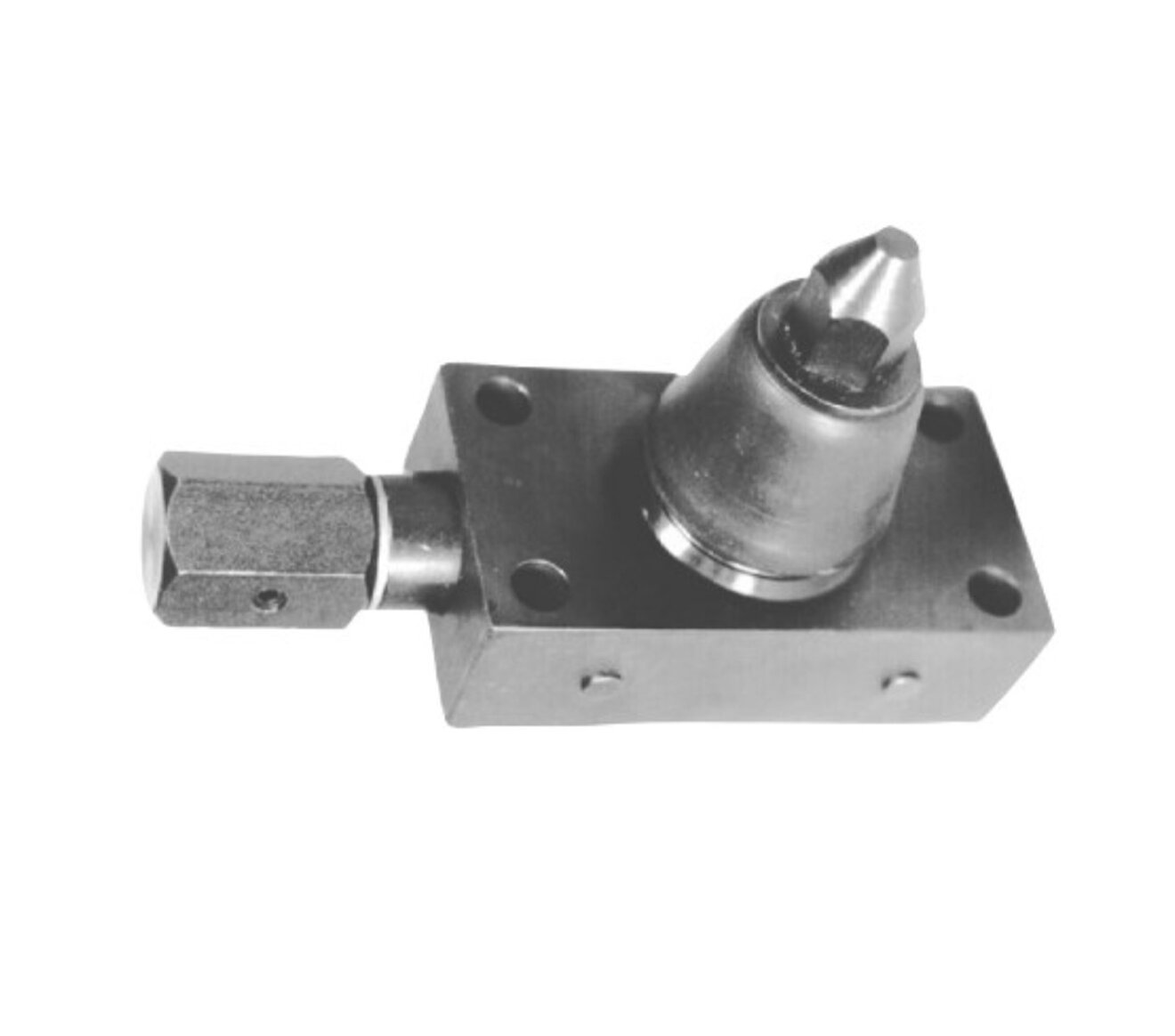

Jergens Work Support Jacks provide consistent support and rigidity to odd-shaped workpieces. They are designed to prevent workpiece deflection under forces created during machining operations. Precision-mated locking jaws grip the jack post from both sides, creating a vise-like action
Features, Benefits, & Product Specifications:
-
Load Capacities: 300-4500 lbs.
-
Rugged design
-
Quality construction
-
Dual jaw-locking action
-
Rubber boot or dust cap models are available
Work Support Jacks

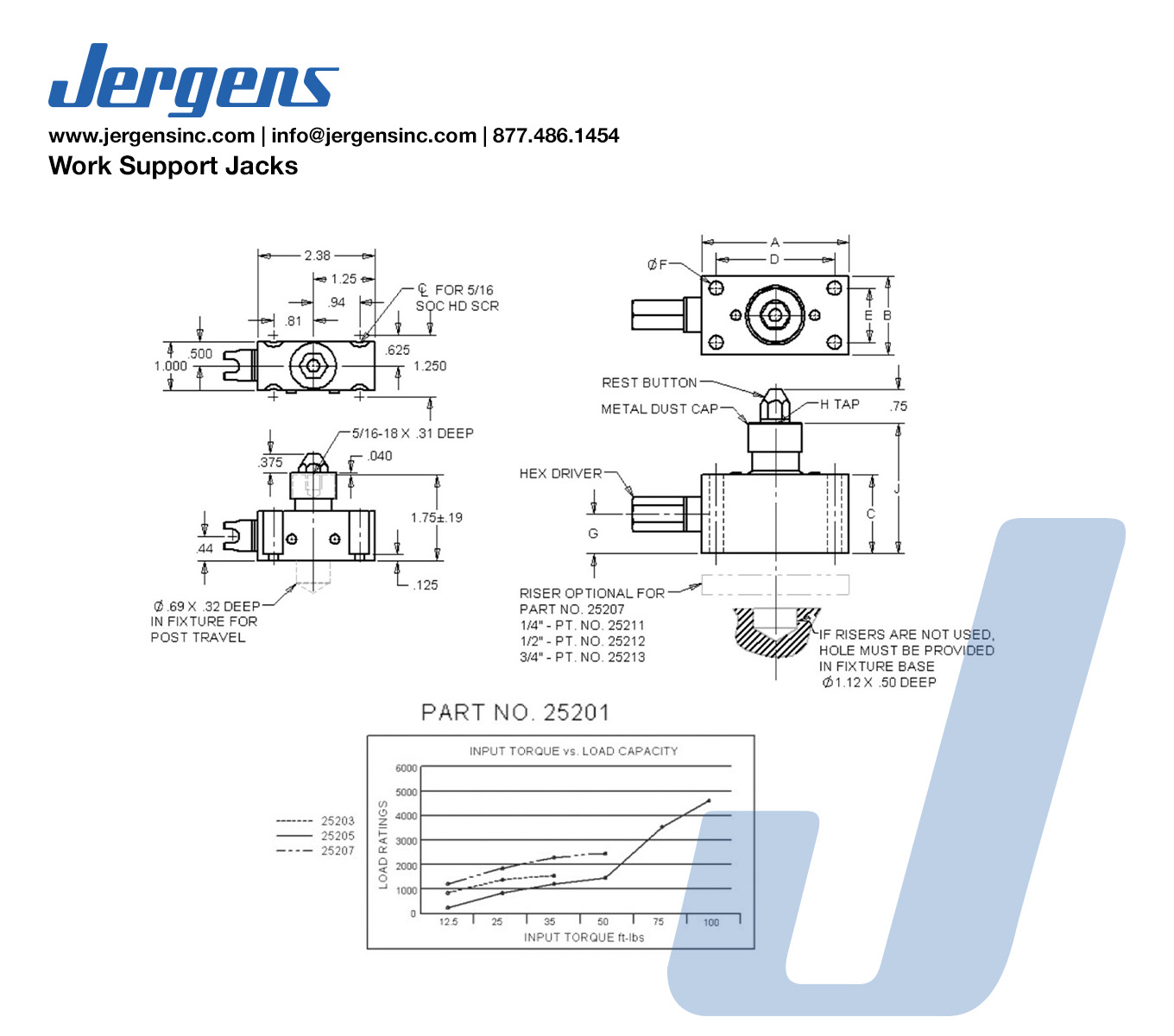

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Load Rating | Type of Dust Protector | Type of Driver | A (In) | B (In) | C (In) | D (In) | E (In) | Diameter F (In) | G (In) | Tap H | Jackpost J Mean Height | Jackpost J Travel | 1/4" Riser Option Part Number | 3/4" Riser Option Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25201 |
|
Inch | 300 lbs | Cap | - | Slotted, See Line Drawing | Slotted, See Line Drawing | Slotted, See Line Drawing | Slotted, See Line Drawing | Slotted, See Line Drawing | Slotted, See Line Drawing | - | - | 1.75 | +/-0.19 | - | - |
| 25203 |
|
Inch | 1400 lbs | Cap | 0.750 Hex | 3.75 | 2.00 | 2.00 | 3.00 | 1.38 | 11/32 | 1.13 | 3/8-16 0.44 Deep | 3.31 | +/-0.25 | - | - |
| 25205 |
|
Inch | 4500 lbs | Cap | 0.937 Hex | 4.54 | 2.50 | 2.50 | 3.50 | 1.88 | 13/32 | 1.63 | 1/2-13 0.59 Deep | 4.13 | +/-0.38 | - | - |
| 25207 |
|
Inch | 2500 lbs | Cap | 0.750 Hex | 3.75 | 2.00 | 1.12 | 3.00 | 1.38 | 11/32 | 0.56 | 3/8-16 0.44 Deep | 2.38 | +/-0.25 | 25211 | 25213 |
