Threaded Leveling Pads
Jergens Tru-Center™ Threaded Leveling Pads provide a greater surface area where heavy loads are to be applied or where heavy pressures must be exerted on flexible or softer materials. Pad face swivels and aligns with no damage to the uneven surfaces.
Our patented Tru-Center™ products are the only pad type on the market to provide true center-line clamping. The center line of the pad and the center line of the nut always intersect at the point of contact between the pad and the workpiece.
Features, Benefits, & Product Specifications:
-
Material: 4140 Steel
-
Finish: Zinc Plated Pad
-
Heat Treat: RC 36-40
-
Thread Class: UNC-2A (Inch); 6g (Metric)
Note(s):
-
Jam nut is furnished.
-
Metric Tru-Center™ Threaded Leveling Pads have (2) flats instead of a hex configuration on the head.
Threaded Leveling Pads
Select a part number for CAD drawings, price and stock availability.

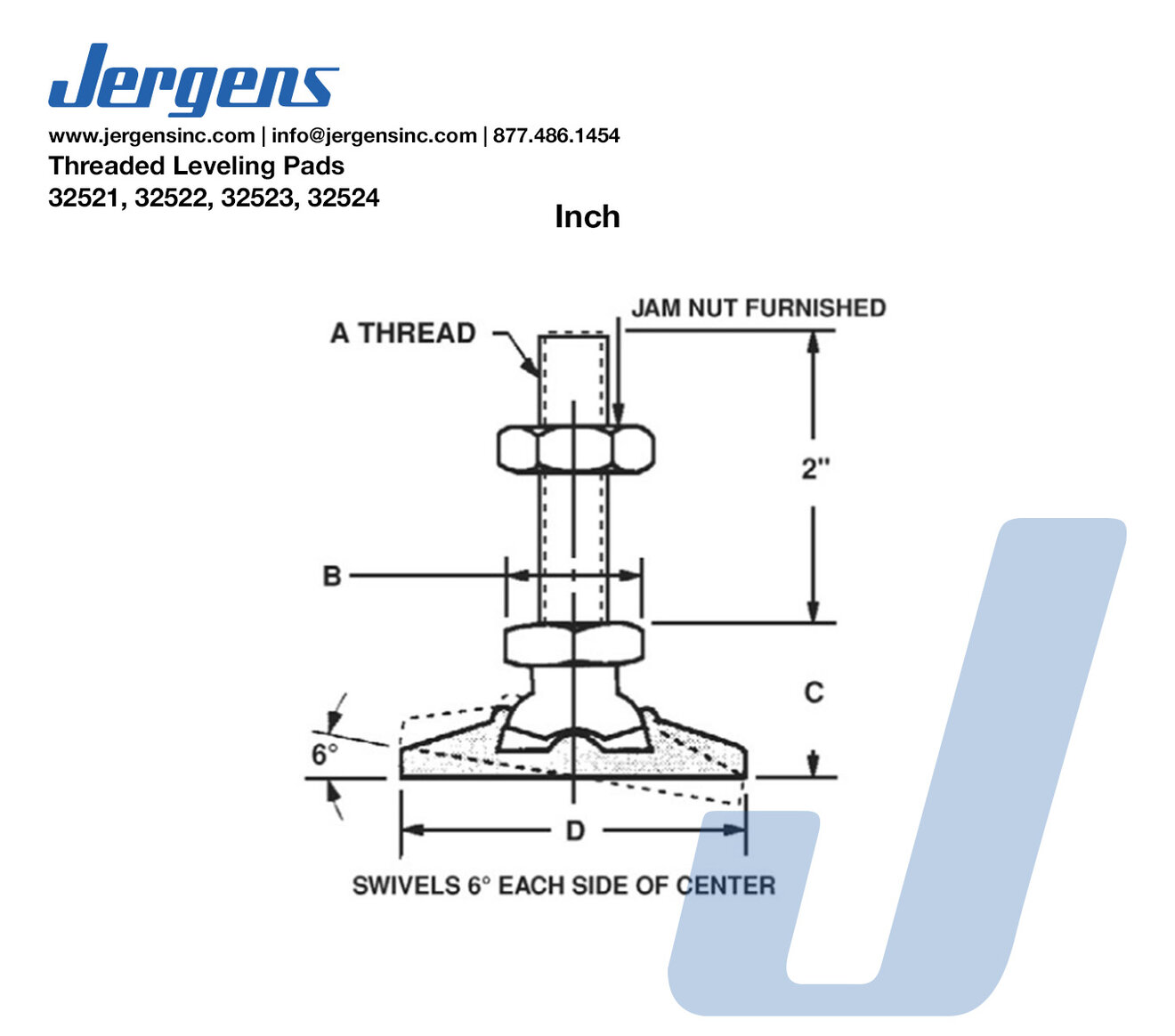

| Part Number | CAD | Unit | Thread Size A | B (In) | C (In) | D (In) | Load Capacity (lbs) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|
| 32521 |
|
Inch | 3/8-16 | 5/8 | 3/4 | 1 1/4 | 2300 | 0.16 |
| 32522 |
|
Inch | 1/2-13 | 3/4 | 1 | 1 7/8 | 4200 | 0.37 |
| 32523 |
|
Inch | 5/8-11 | 7/8 | 1 1/8 | 2 1/4 | 6600 | 0.58 |
| 32524 |
|
Inch | 3/4-10 | 1 1/16 | 1 7/16 | 3 | 10000 | 1.22 |

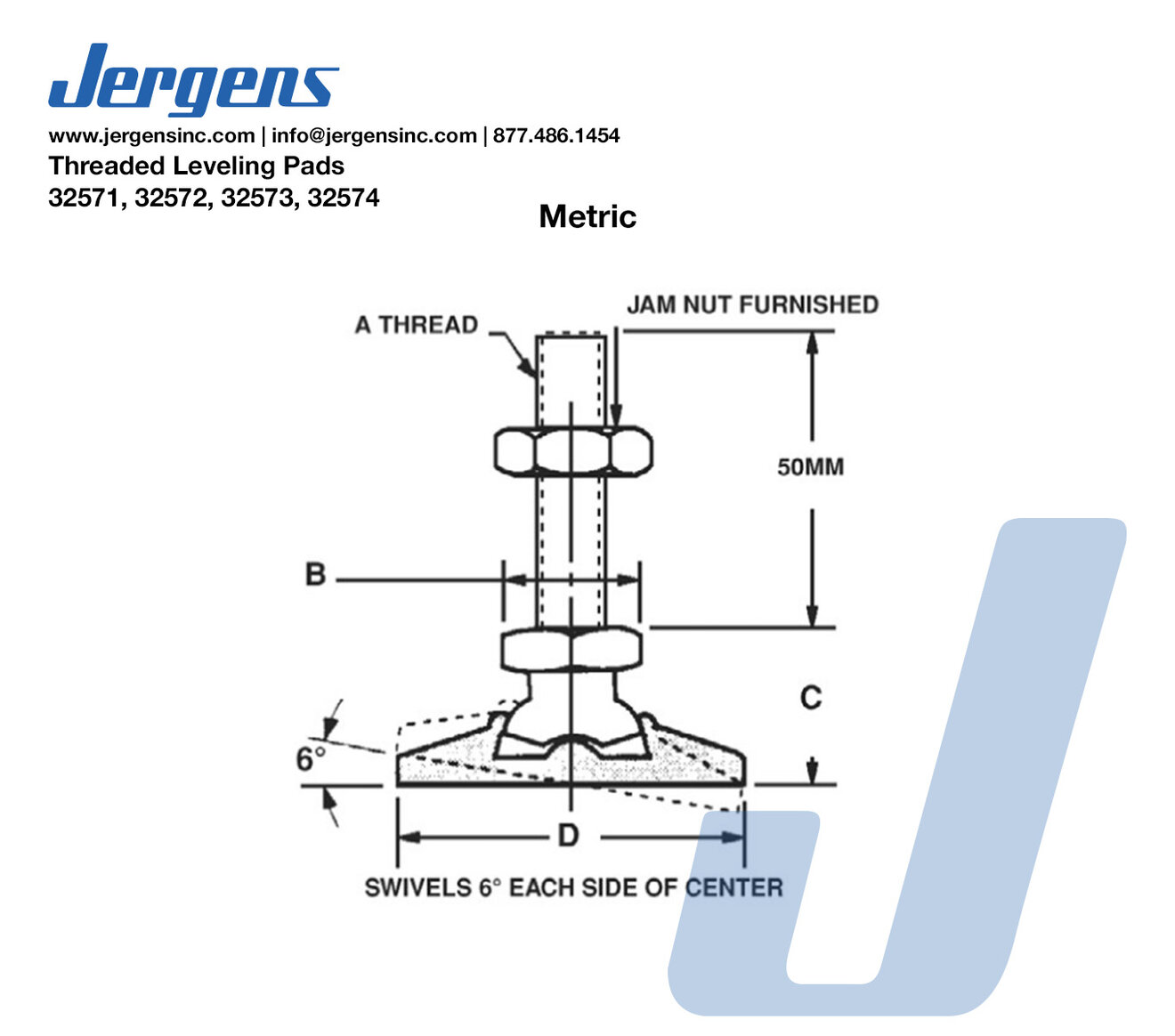

| Part Number | CAD | Unit | Thread Size A | B (mm) | C (mm) | D (mm) | Load Capacity (kgs) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 32571 |
|
Metric | M10 x 1.5 | 16 | 21 | 32 | 1000 | 0.07 |
| 32572 |
|
Metric | M12 x 1.75 | 22 | 27 | 48 | 1900 | 0.17 |
| 32573 |
|
Metric | M16 x 2.0 | 22 | 31 | 57 | 2900 | 0.26 |
| 32574 |
|
Metric | M20 x 2.5 | 30 | 39 | 76 | 4500 | 0.55 |
