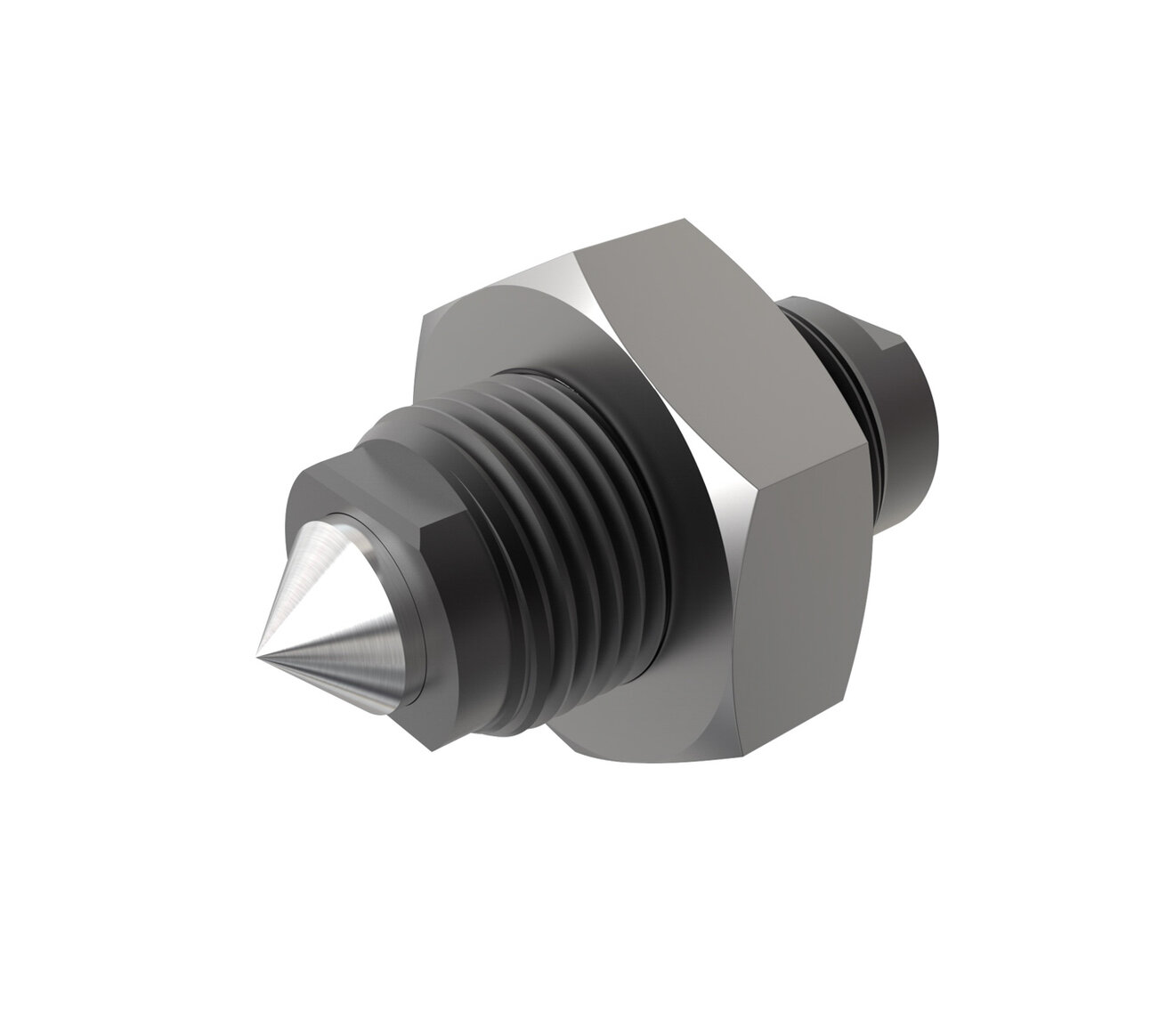

Threaded Body Pressure Point Cylinders
Jergens Threaded Body Pressure Point Cylinders may be used with any power source and are designed for use in restricted areas where space is at a minimum. They can be used to eliminate part distortion during machining operations or to hold large-diameter castings or rings in place while machining the upper surface.
Features, Benefits, & Product Specifications:
-
Tips: Hardened Tool Steel (50-60RC)
-
Jam Nuts are included
Note(s):
Threaded Body Pressure Point Cylinders are not suitable for air operation.
Threaded Body Pressure Point Cylinders

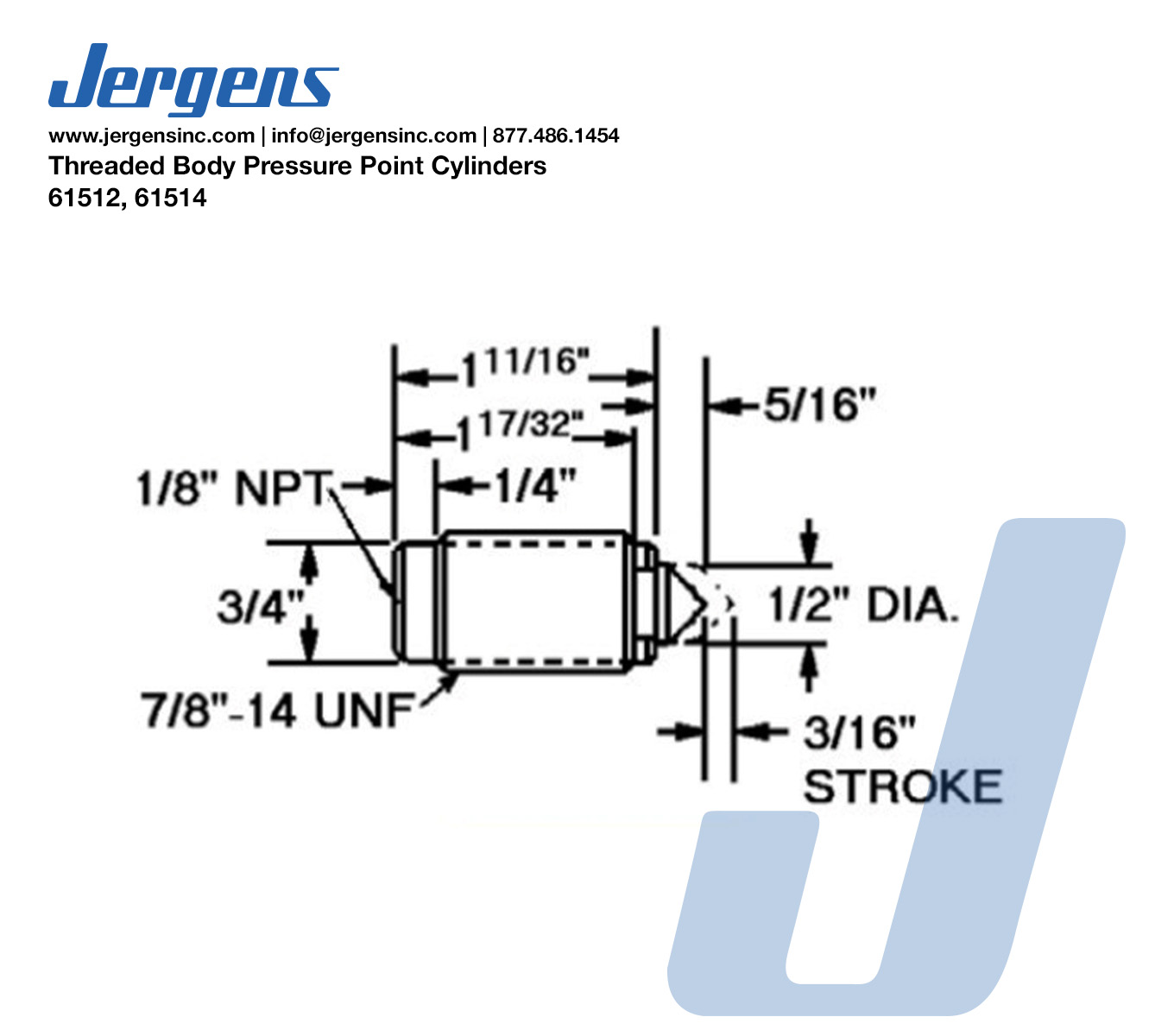

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Operating Stroke (In) | Operating Volume (cu. in.) | Effective Piston Area (sq. in.) | Minimum Operating Pressure (psi) | Maximum Operating Pressure (psi) | Maximum Output Force (lbs) | Pointed | Repair Kit Part Number | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 61512 |
|
Inch | 3/16 | 0.037 | 0.20 | 400 | 5000 | 1000 | Yes | 62134 | 0.5 |
| 61514 |
|
Inch | 3/16 | 0.037 | 0.20 | 400 | 5000 | 1000 | No | 62134 | 0.6 |
