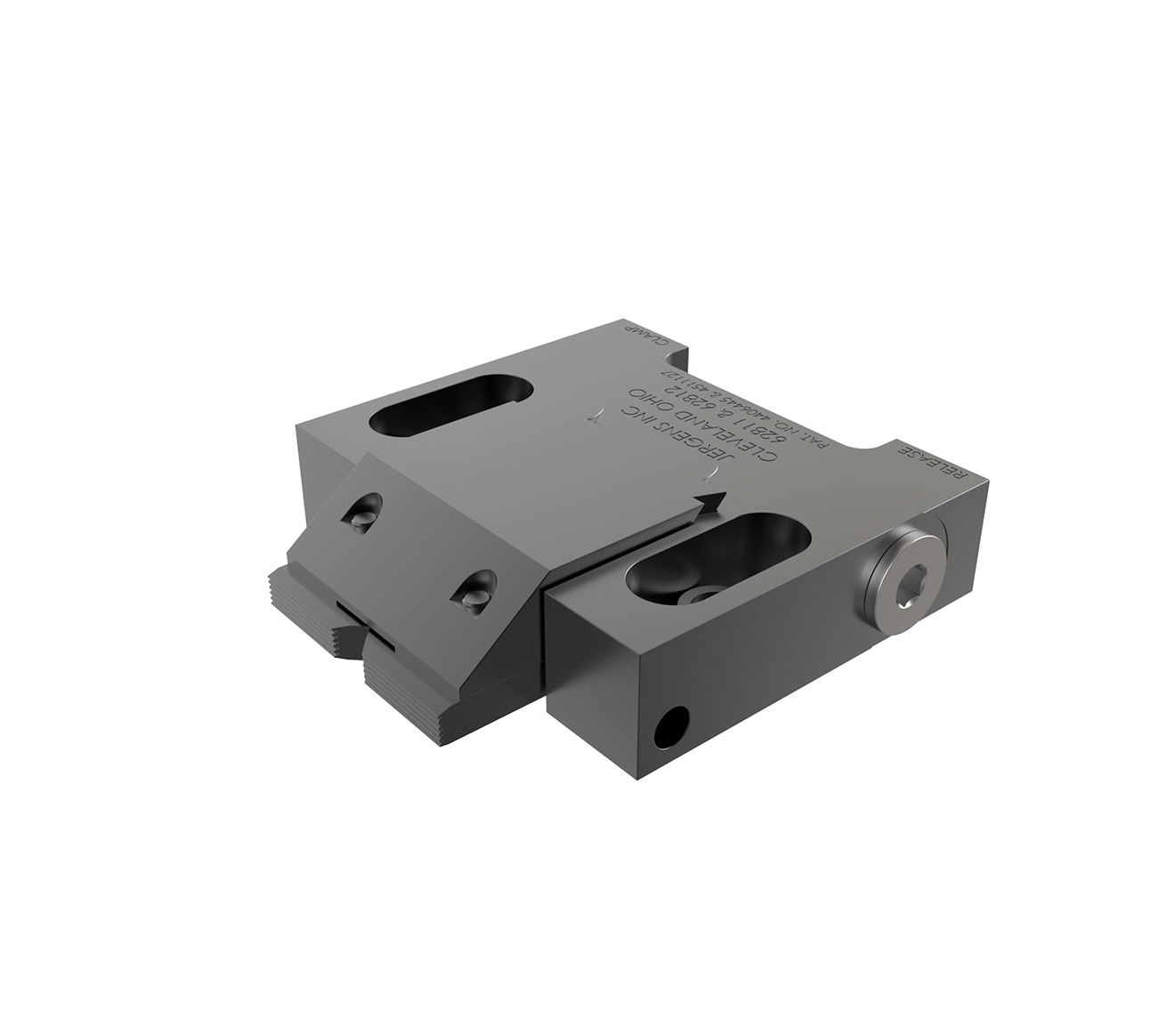

STAYLOCK® Toe Clamps
Jergens STAYLOCK® Toe Clamps are designed for edge gripping of parts when the clamp height must be kept at a minimum, such as in a milling operation.
Features, Benefits, & Product Specifications:
-
Available in Low Toe & High Toe styles
-
Provides (2) directional clamping forces:
- (1) pushes the workpiece against a positive stop
- (1) pushes it down against the table or fixture
-
A brass or steel insert is available on the Low Toe Style (must be ordered separately)
Note(s):
-
STAYLOCK® Toe Clamp Part No. 62811 is supplied without a toe insert.
-
(2) special washers, which prevent damage by the cap screws, are included with each STAYLOCK® Toe Clamp. To order washers separately, order Part No. 60636.
-
The toe is moved back by spring.
STAYLOCK® Toe Clamps
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Style | Operating Volume (cu. in.) | Minimum Operating Pressure (psi) | Maximum Operating Pressure (psi) | Force Pressure Ratio | Clamping Range | Maximum Output Force in A | Maximum Output Force in B | Repair Kit Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 62811 |
|
Inch | Low Toe | 0.5 | 500 | 3000 | 2:1 | 0.09 | 2500 | 1800 | 62183 |
| 62812 |
|
Inch | High Toe | 0.5 | 500 | 3000 | 2:1 | 0.09 | 2500 | 1800 | 62183 |
