Spherical Flanged Assemblies
Jergens Spherical Flanged Assemblies have the same advantages as our Spherical Washers but with the addition of a nut to replace the top section of the washers. The convex bottom of nut nests into the concave bottom section for full floating action.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened
Spherical Flanged Assemblies
Select a part number for CAD drawings, price and stock availability.

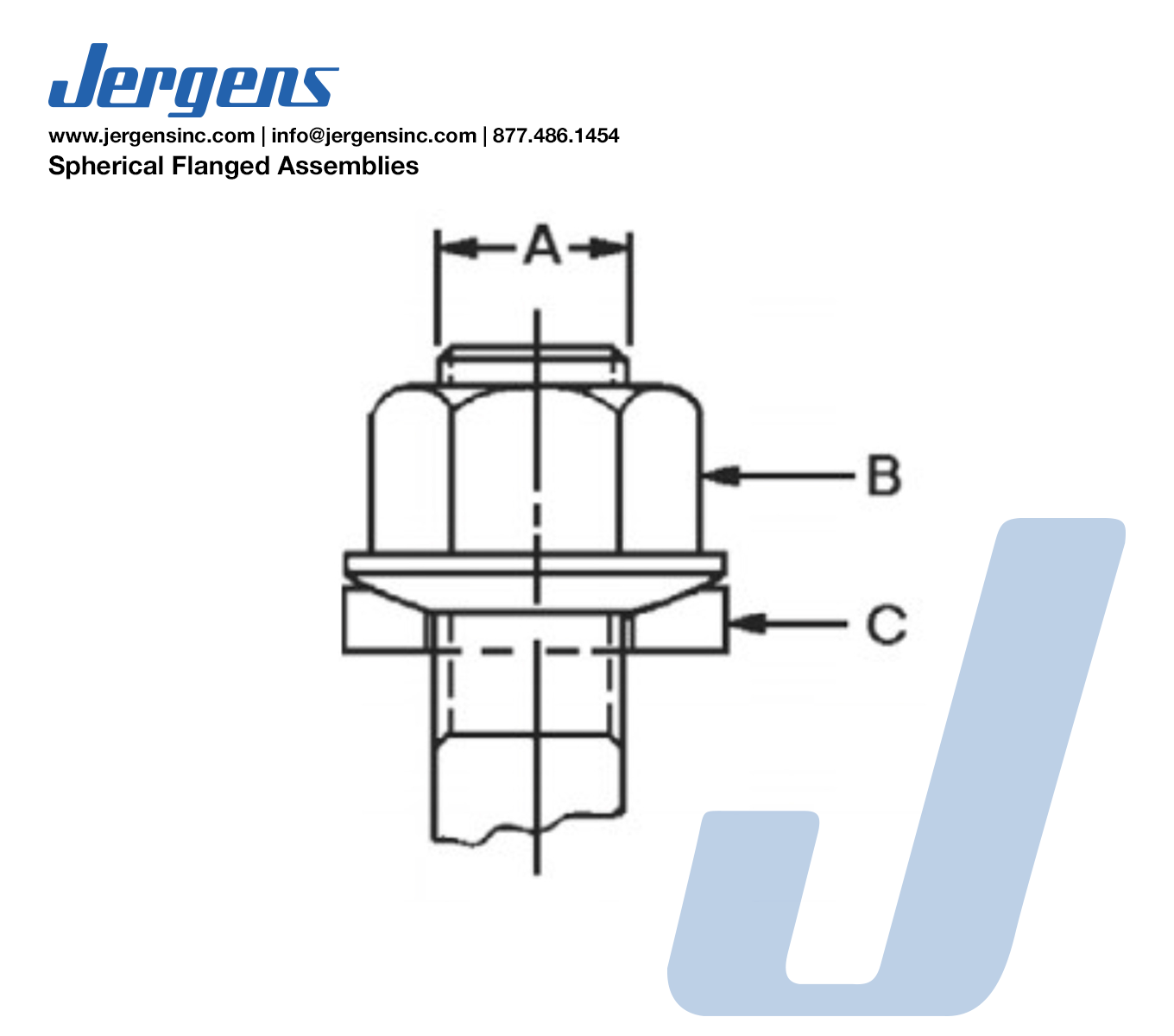

| Part Number | CAD | Unit | A | Nut B Part Number | Washer C Part Number | Weight 10 Pcs (lbs) |
|---|---|---|---|---|---|---|
| 39301 |
|
Inch | 10-24 | 39701 | 41301 | 0.12 |
| 39302 |
|
Inch | 1/4-20 | 39702 | 41302 | 0.16 |
| 39303 |
|
Inch | 5/16-18 | 39703 | 41303 | 0.31 |
| 39304 |
|
Inch | 3/8-16 | 39704 | 41304 | 0.65 |
| 39305 |
|
Inch | 1/2-13 | 39705 | 41305 | 1.45 |
| 39306 |
|
Inch | 5/8-11 | 39706 | 41306 | 2.44 |
| 39307 |
|
Inch | 3/4-10 | 39707 | 41307 | 4.10 |
| 39308 |
|
Inch | 7/8-9 | 39708 | 41308 | 6.00 |
| 39309 |
|
Inch | 1-8 | 39709 | 41309 | 8.10 |
| 39311 |
|
Inch | 1 1/4-7 | 39711 | 41311 | 13.40 |
| 39312 |
|
Inch | 1 1/2-6 | 39712 | 41312 | 15.70 |
| Part Number | CAD | Unit | A | Across Flats B (mm) | Washer C Part Number | Weight 10 Pcs (kgs) |
|---|---|---|---|---|---|---|
| 39352 |
|
Metric | M6 x 1.0 | 10 | 41302 | 0.07 |
| 39353 |
|
Metric | M8 x 1.25 | 13 | 41303 | 0.14 |
| 39354 |
|
Metric | M10 x 1.5 | 17 | 41304 | 0.30 |
| 39355 |
|
Metric | M12 x 1.75 | 19 | 41305 | 0.66 |
| 39356 |
|
Metric | M16 x 2.0 | 24 | 41306 | 1.10 |
| 39357 |
|
Metric | M20 x 2.5 | 30 | 41357 | 1.80 |
