Spherical Flange Nuts
Jergens Spherical Flange Nuts have a convex bottom that nests into the concave bottom section of a washer for full floating action.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened
-
Thread: 2B-UNC (Inch); 6h (Metric)
Spherical Flange Nuts

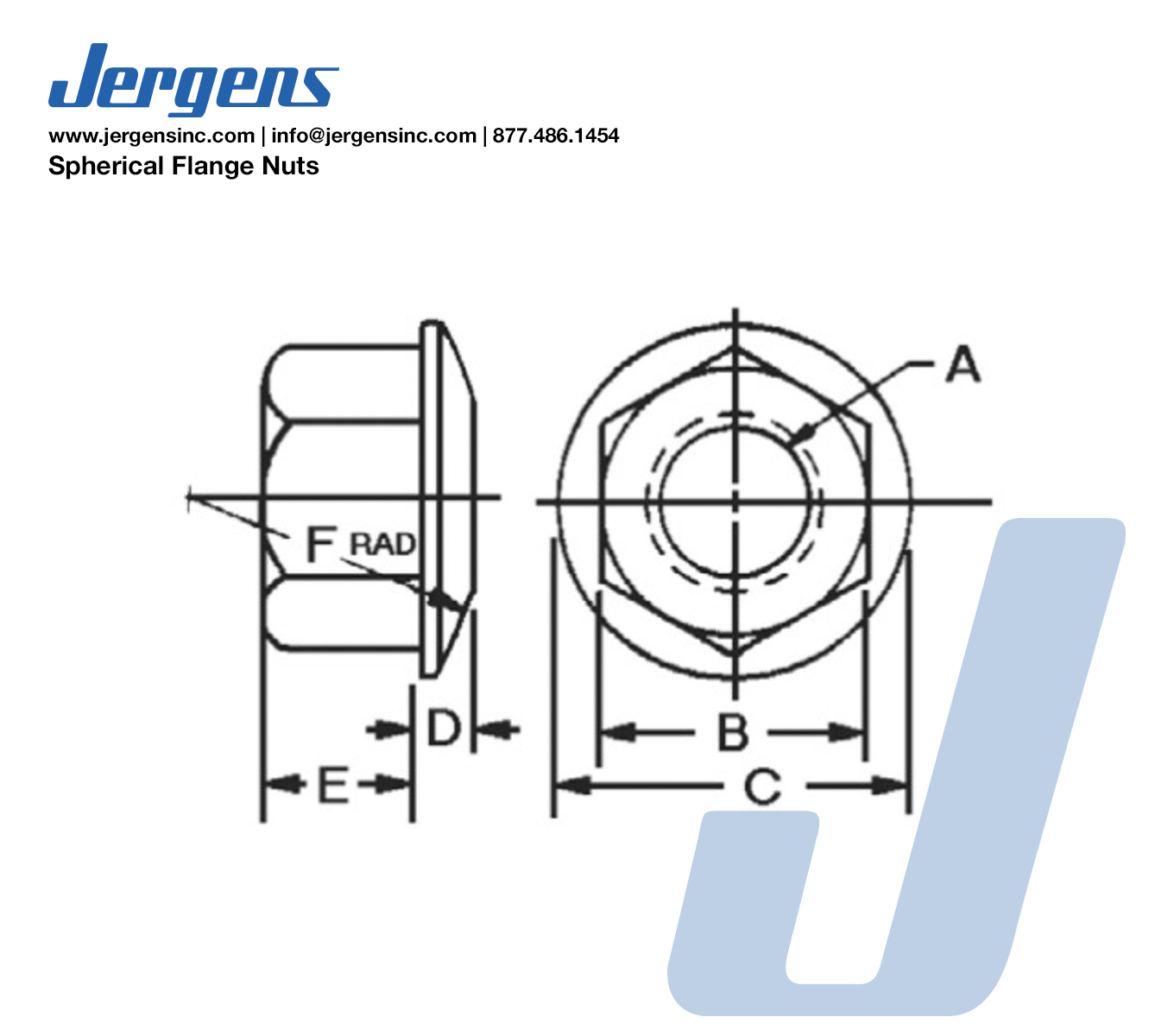

Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | A | B (In) | C (In) | D (In) | E (In) | F (In) | Weight 10 Pieces (lbs) |
---|---|---|---|---|---|---|---|---|---|
39701 | Inch | 10-24 | 3/8 | 1/2 | 3/32 | 1/4 | 3/4 | 0.10 | |
39702 | Inch | 1/4-20 | 1/2 | 5/8 | 3/32 | 1/4 | 1 | 0.12 | |
39703 | Inch | 5/16-18 | 9/16 | 3/4 | 1/8 | 9/32 | 1 | 0.21 | |
39704 | Inch | 3/8-16 | 11/16 | 7/8 | 1/4 | 13/32 | 1 1/2 | 0.50 | |
39705 | Inch | 1/2-13 | 7/8 | 1 1/8 | 5/16 | 1/2 | 2 | 1.00 | |
39706 | Inch | 5/8-11 | 1 1/16 | 1 3/8 | 23/64 | 5/8 | 2 1/4 | 1.82 | |
39707 | Inch | 3/4-10 | 1 1/4 | 1 5/8 | 27/64 | 3/4 | 2 1/2 | 3.10 | |
39708 | Inch | 7/8-9 | 1 7/16 | 1 3/4 | 3/8 | 7/8 | 2 1/2 | 4.35 | |
39709 | Inch | 1-8 | 1 5/8 | 2 | 29/64 | 1 | 3 1/2 | 5.90 | |
39711 | Inch | 1 1/4-7 | 1 13/16 | 2 1/4 | 5/16 | 1 1/16 | 4 | 7.20 | |
39712 | Inch | 1 1/2-6 | 2 3/16 | 2 3/4 | 5/16 | 1 3/16 | 4 1/2 | 11.60 |
Part Number | CAD | Unit | A | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight 10 Pieces (kgs) |
---|---|---|---|---|---|---|---|---|---|
39752 | Metric | M6x1.0 | 10 | 16 | 2 | 6 | 25 | 0.05 | |
39753 | Metric | M8x1.25 | 13 | 19 | 3 | 7 | 25 | 0.10 | |
39754 | Metric | M10x1.5 | 17 | 22 | 4 | 10 | 38 | 0.23 | |
39755 | Metric | M12x1.75 | 19 | 25 | 5 | 13 | 50 | 0.50 | |
39756 | Metric | M16x2.0 | 24 | 32 | 6 | 16 | 57 | 0.83 | |
39757 | Metric | M20x2.5 | 30 | 38 | 6 | 19 | 64 | 1.41 |
