Small Swing Cylinders
Jergens Small Swing Cylinders are versatile and can be used as single or double-acting rotating clamps or push/pull cylinders. The piston in the Swing Cylinders rotates 90° to the right, but may easily be changed to 90° left rotation or no rotation at all.
Features, Benefits, & Product Specifications:
-
Standard with an arm
-
Can be mounted using (4) #10 cap screws or the 1-12" thread on the O.D. of the cylinder
-
Optional components are shown in the second table
-
Can be used as a non-rotating clamp
-
The Max. recommended flow rate is 20 cu. in./minute per clamp (approximately 1 second clamp time)
Note(s):
-
Arm length can affect clamping pressures (see graph in Workholding Catalog).
-
WARNING: All Swing Cylinders must be used with Flow Limit Valves to dampen the rotating action.

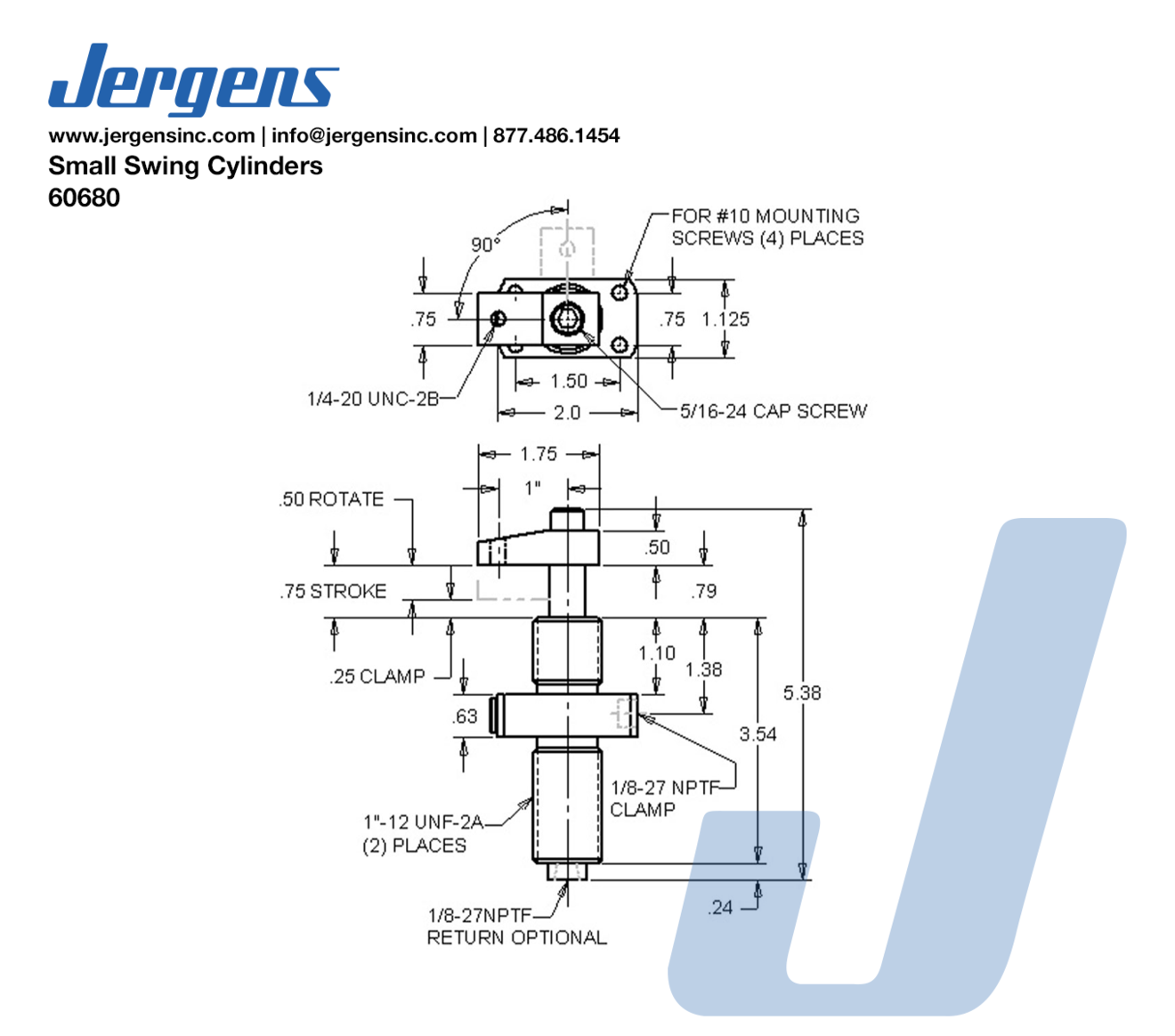

Small Swing Cylinders
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Pull Operating Volume | Pull Effective Piston Area | Pull Minimum Operating Pressure | Push Operating Volume | Push Effective Piston Area | Maximum Operating Pressure (psi) | Pull Maximum Output Force | Push Maximum Output Force | Stroke Full | Stroke Rotating | Stroke Clamping | Weight | Repair Kit Part Number | Hex Jam Nut Part Number | Optional Double Arm Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60680 | Inch | 0.18 (Cu. in) | 0.24 in2 | 120 psi | 0.33 (Cu. in) | 0.44 in2 | 3000 psi | 730 lbs | 1320 lbs | 0.75 in | 0.5 in | 0.25 in | 1 lbs | 62190 | 60964 | 60923 |
