Single Acting Cylinders
Jergens Single Acting Cylinders are especially applicable to large circuits where cylinders are plumbed into the air side of the circuit and used to align parts in the fixture before hydraulic clamping. These applications are primarily pushing-type operations where the cylinder return spring pulls only the piston rod.
Features, Benefits, & Product Specifications:
-
Will operate on air or oil
-
All cylinders have a 1" stroke
Note(s):
Single Acting Cylinders are not recommended for applications where coolant or chips are prevalent. Use our Double Acting Cylinders for these applications (see Related Products below).
Single Acting Cylinders
Select a part number for CAD drawings, price and stock availability.

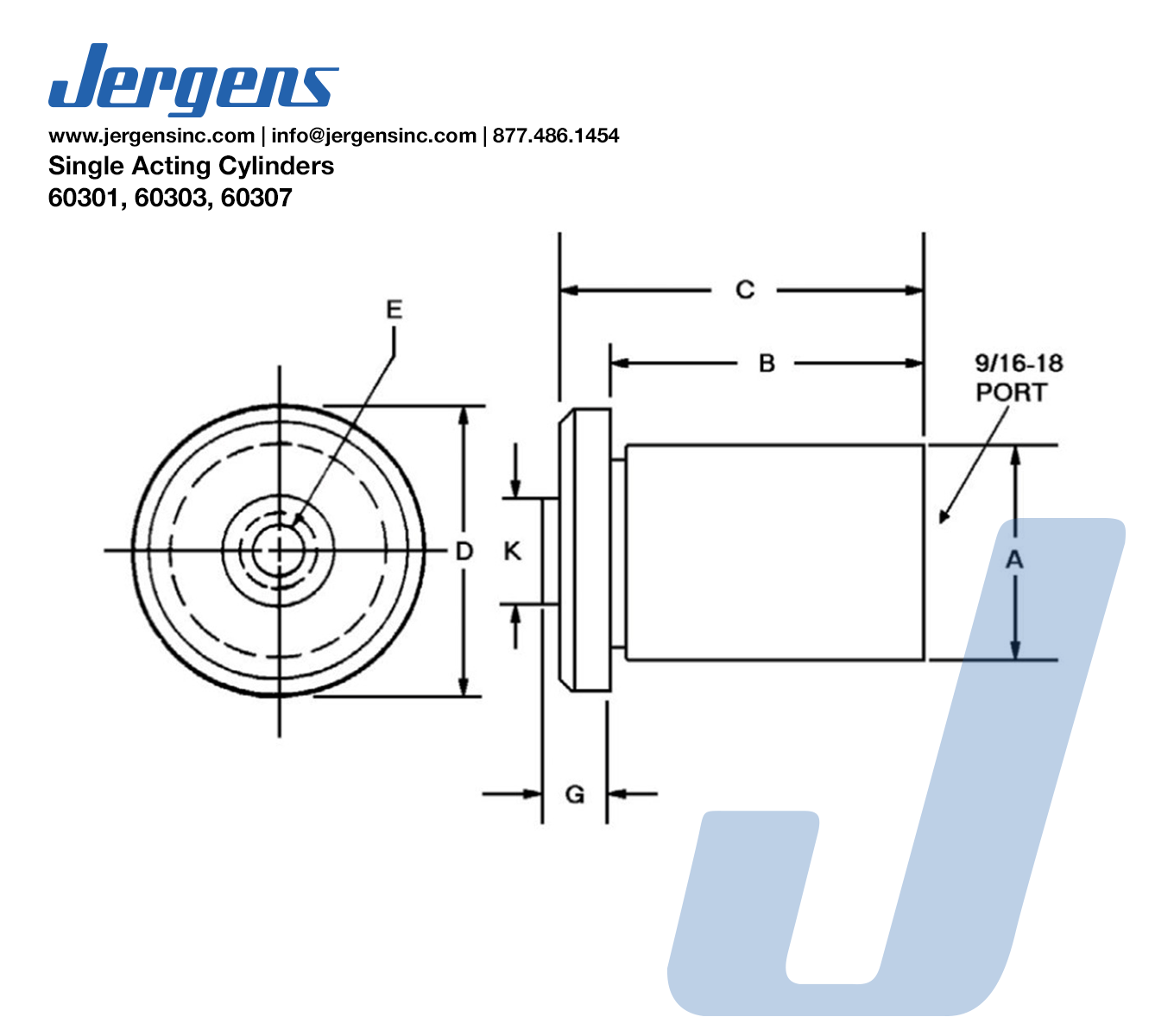

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | Tap E | G (In) | K (In) | Operating Stroke (In) | Operating Volume (cu. in.) | Effective Piston Area (sq. in.) | Minimum Operating Pressure (psi) | Maximum Operating Pressure (psi) | Maximum Output Force (lbs) | Repair Kit Part Number | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60301 |
|
Inch | 1.000 | 2 3/8 | 2 5/8 | 1 15/64 | 1/4-20 x 1/2 | 7/16 | 3/8 | 1 | 0.44 | 0.44 | 32 | 3000 | 1320 | 62101 | 0.5 |
| 60303 |
|
Inch | 2.500 | 2 3/8 | 2 5/8 | 2 47/64 | 3/8-16 x 3/4 | 7/16 | 3/4 | 1 | 3.14 | 3.14 | 25 | 3000 | 9300 | 62103 | 3 |
| 60307 |
|
Inch | 1.500 | 2 3/8 | 2 5/8 | 1 47/64 | 3/8-16 x 3/4 | 7/16 | 1/2 | 1 | 1.22 | 1.22 | 25 | 3000 | 3660 | 62102 | 1 |
