Rotary Couplers
Jergens Single and Dual Passage Rotary Couplers are used to transmit power through a rotating joint. Single Passage Rotary Couplers have (1) passage for transfer, while Dual Passage Rotary Couplers have (2) passages for simultaneous transmission.
Features, Benefits, & Product Specifications:
-
Low friction & high-precision transmission
-
Smooth & uninterrupted rotation
Documents
Rotary Couplers

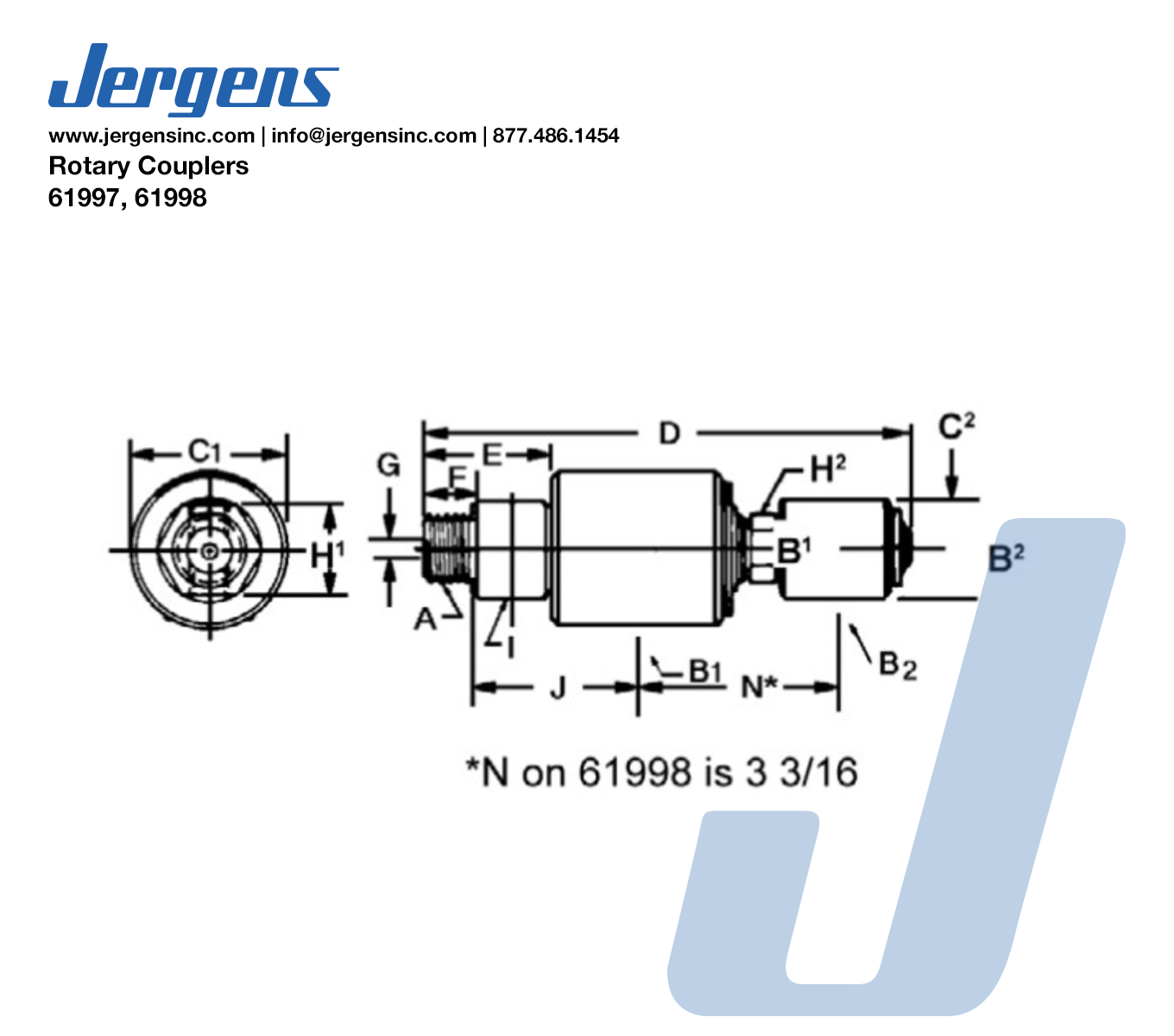

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Rotor Thread A | Tap B1 | C1 | D | E | F | Rotor Port G | Hex H1 | Lockup J | Maximum Air Pressure | Maximum Vacuum | Maximum Hydraulic Pressure | Maximum Temperature | Maximum Speed | Seal Kit Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 61997 | Inch | 3/8 NPT | 1/4 NPT | 1 1/2 | 3 1/4 | 1 1/8 | 5/8 | 5/16 | 7/8 | 1 25/32 | 150 | 28 (Hg.) in | 3000 psi | 250 F F | 250 | 62165 | |
| 61998 | Inch | 3/4 NPT | 1/2 NPT | 2 3/4 | 7 11/16 | 1 15/16 | 7/8 | 1/4 | 1 3/8 | 2 7/8 | 150 | 28 (Hg.) in | 3000 psi | 250 F F | 250 | 62166 |
