Quick-Loc™ Pull Studs
Jergens Quick-Loc™ Pull Studs clamp top tooling or a workpiece directly to the top surface of our Quick-Loc™ Receivers.
Features, Benefits, & Product Specifications:
-
Material: A2 Tool Steel
-
Finish: Black Oxide
-
Heat Treat: Thru Hardened, RC 50-54
Quick-Loc™ Pull Studs

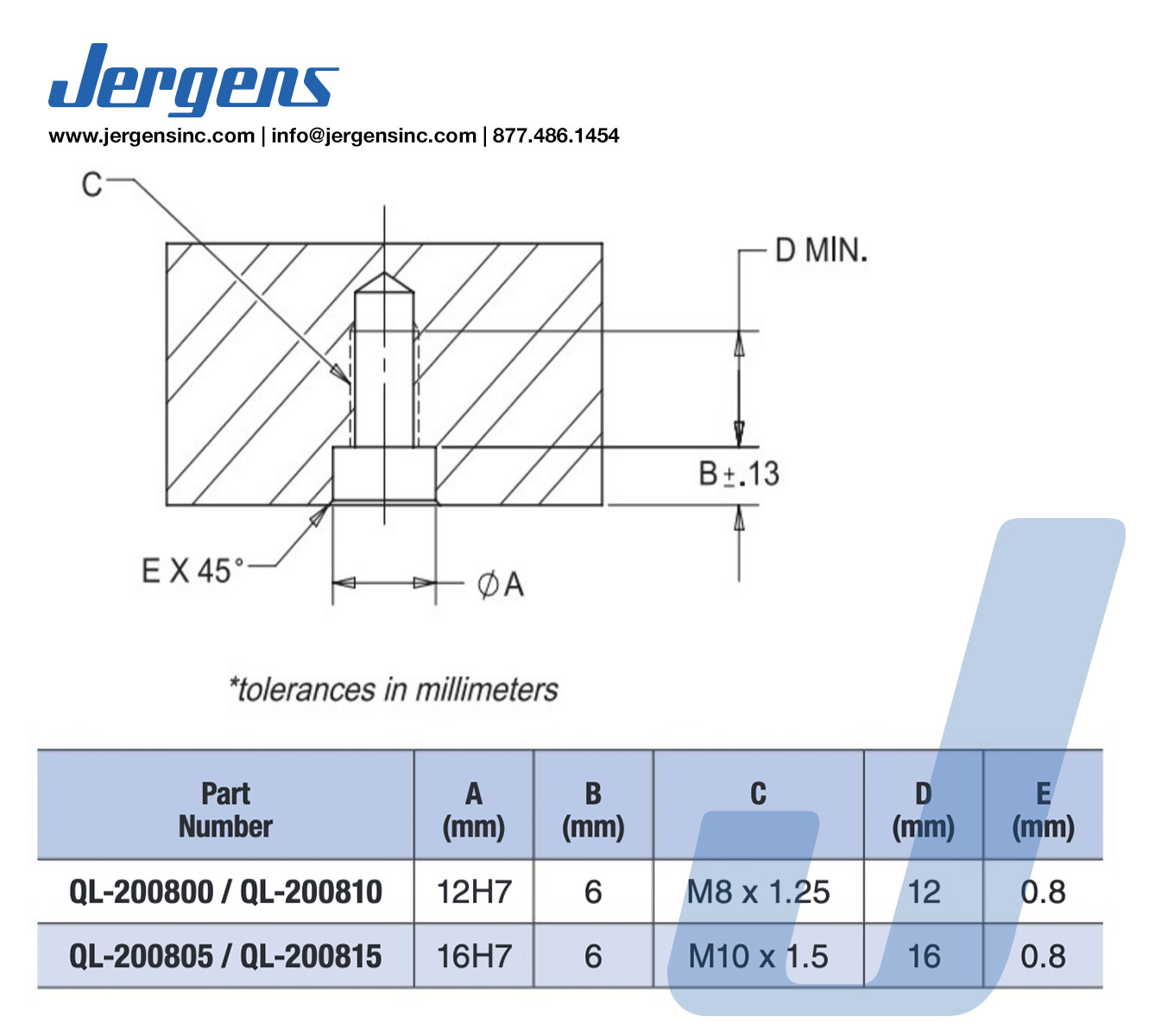

Select a part number for CAD drawings, price and stock availability.

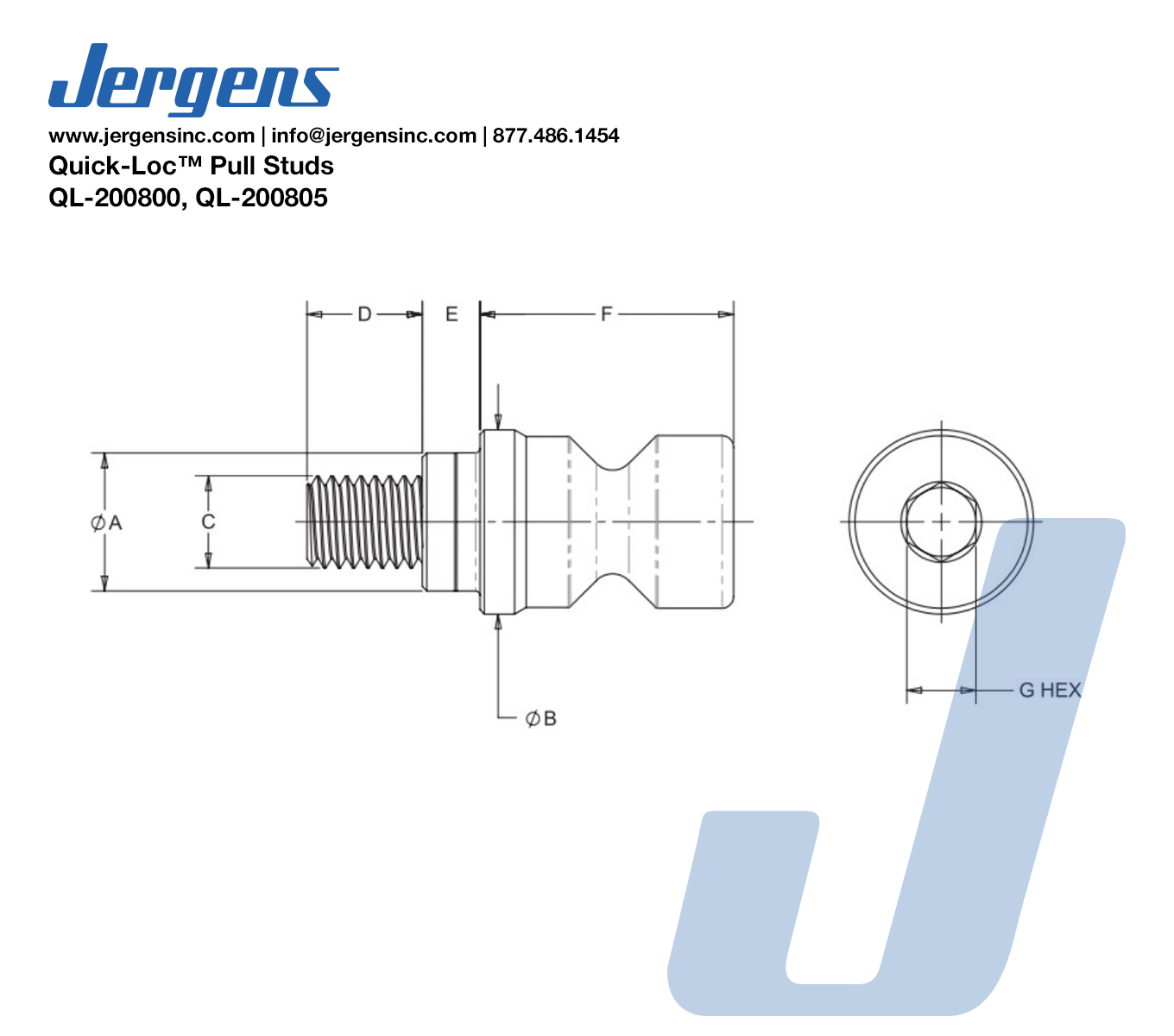

| Part Number | CAD | Unit | A (mm) | B (mm) | C | D (mm) | E (mm) | F (mm) | G (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|
| QL-200800 |
|
Metric | 12 | 16 | M8 x 1.25 | 10 | 5 | 22 | 6 | 0.03 |
| QL-200805 |
|
Metric | 16 | 20 | M10 x 1.5 | 14 | 5 | 22 | 8 | 0.05 |
