Quick-Loc™ 52-96mm Combination Receivers
Now a pallet with both mounting patterns for both 52mm and 96mm top tooling!
Jergens Quick-Loc™ is a modular quick change system that lets users achieve fast and repeatable fixture changes. The system allows for various types of top tooling to be interchanged on base receivers. The basis of the system is a 4-pull stud interface on either a 52mm or 96mm grid pattern. Top tooling is located and clamped to a base receiver in a single step when the pull studs are inserted into the receiver and the clamping screw is tightened.
|
Features, Benefits, & Product Specifications:
|
 |
Quick-Loc™ 52-96mm Combination Receivers
| Part Number | CAD | Unit | Maximum Torque (Nm) | Pull Stud Part Number | Weight (kg) | |
|---|---|---|---|---|---|---|

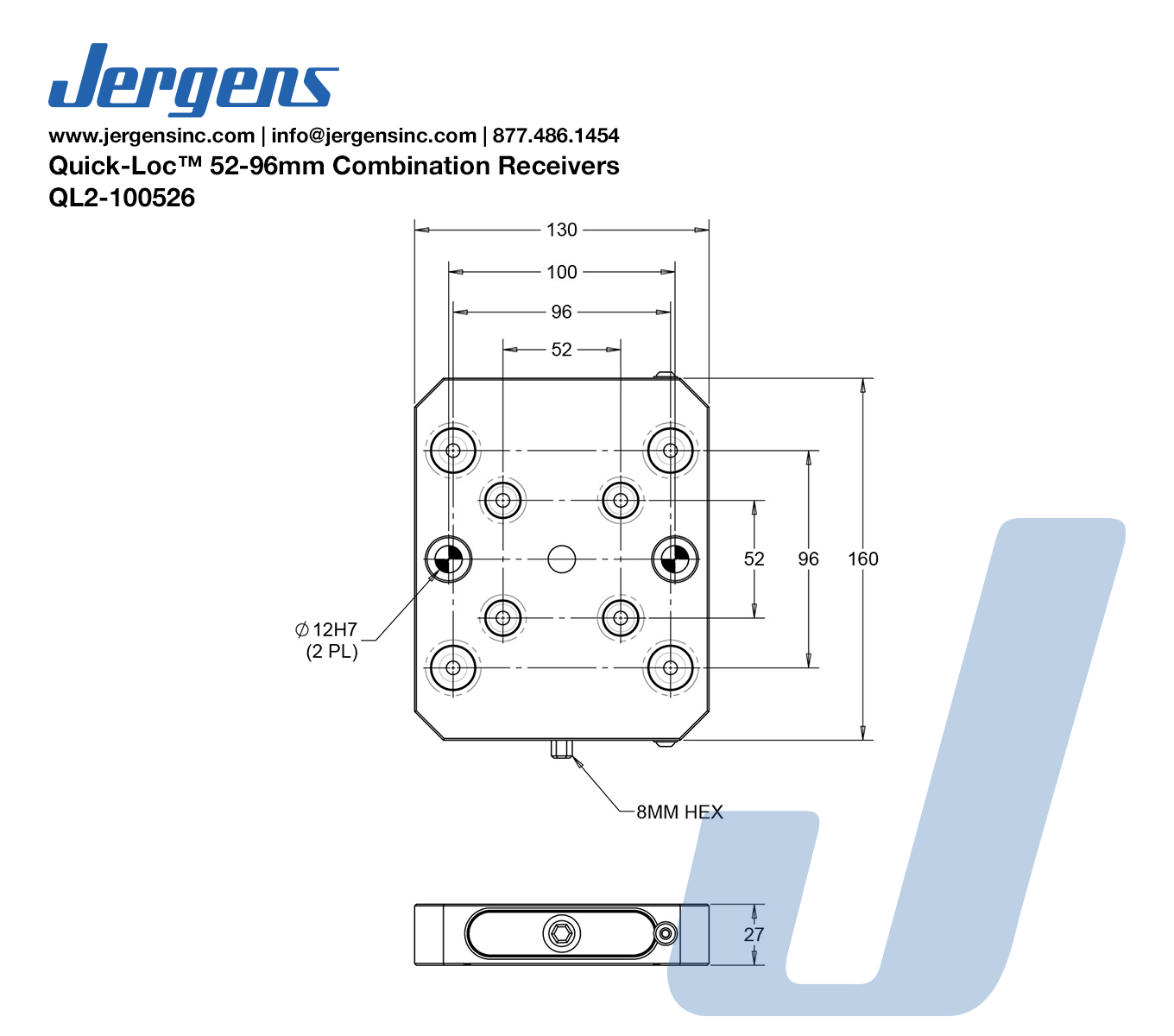

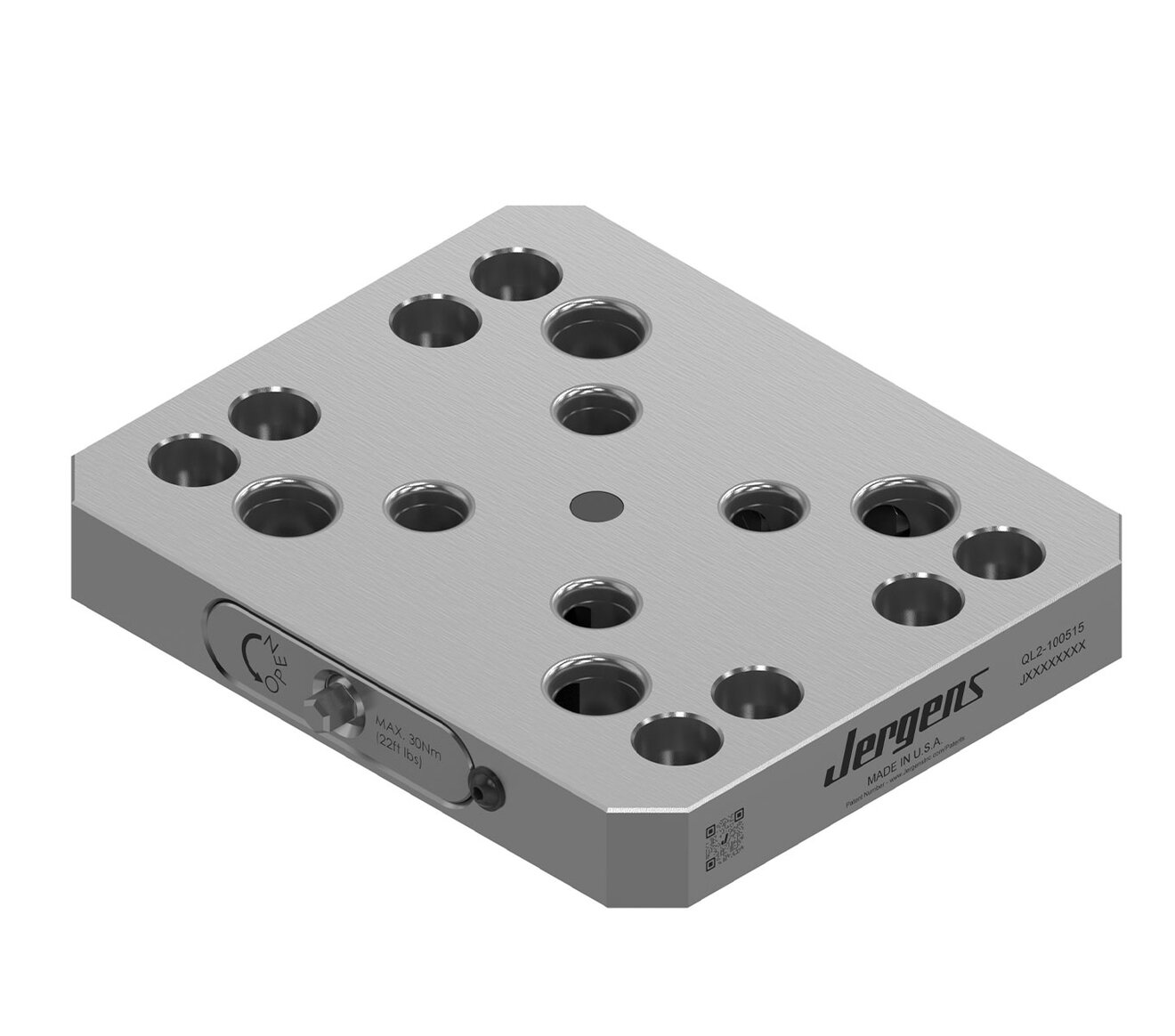

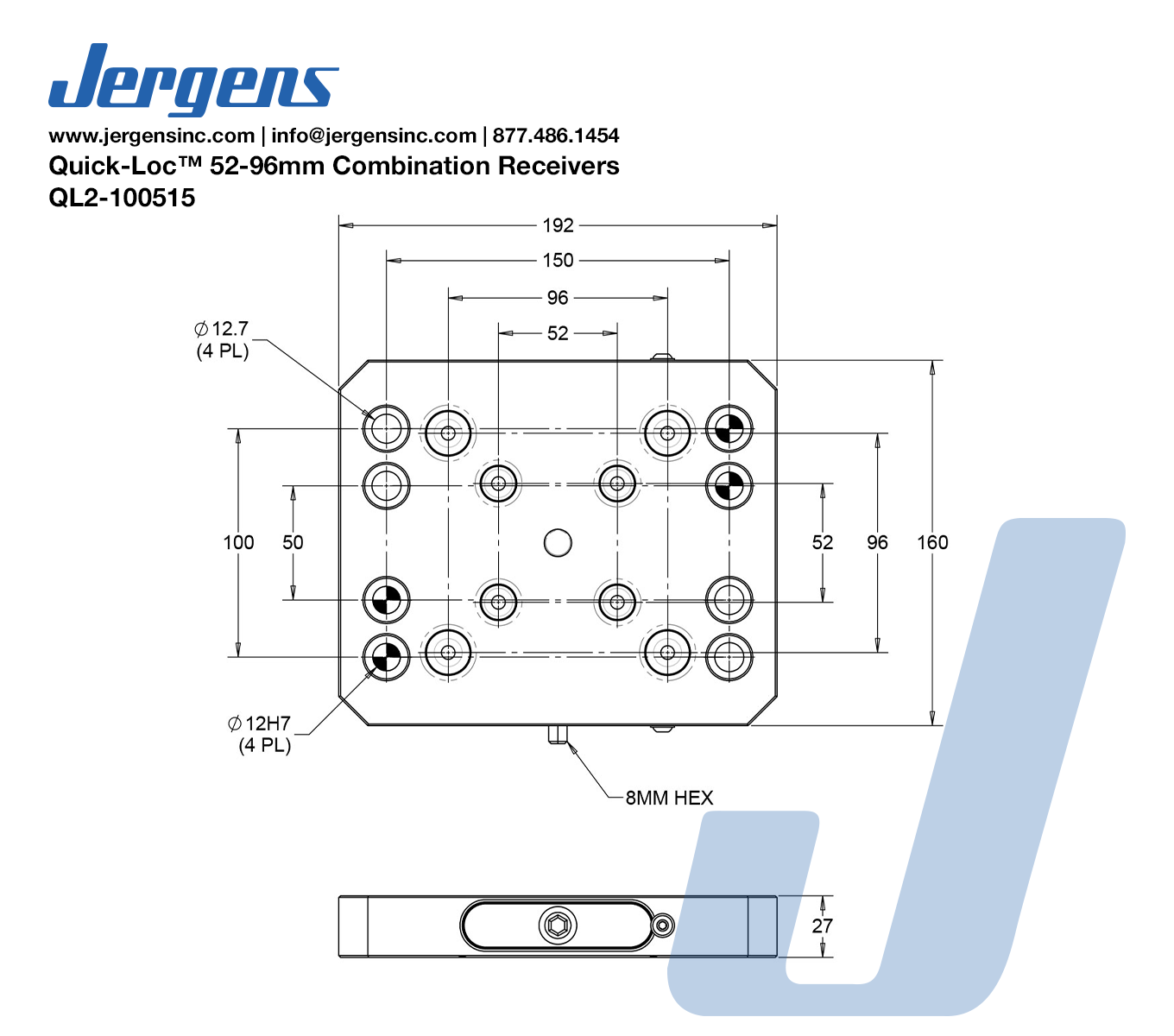

| QL2-100515 | Metric | 30 | QL-200800, QL-200805 | 5.3 | ||
| QL2-100526 | Metric | 30 | QL-200800, QL-200805 | 3.5 |
