Miniature Cylinders
Jergens Miniature Cylinders feature small, fully-threaded bodies ensuring easy mounting and simple length adjustments. Their hardened piston rods, steel bodies, alloy springs, and Teflon® back-up rings ensure trouble-free operation and long life.
Features, Benefits, & Product Specifications:
-
Small size provides high workholding forces in tight places
-
Jam Nuts are included
-
For mounting, see Related Products
Note(s):
Our Miniature Cylinders are not suitable for air operation.
Miniature Cylinders

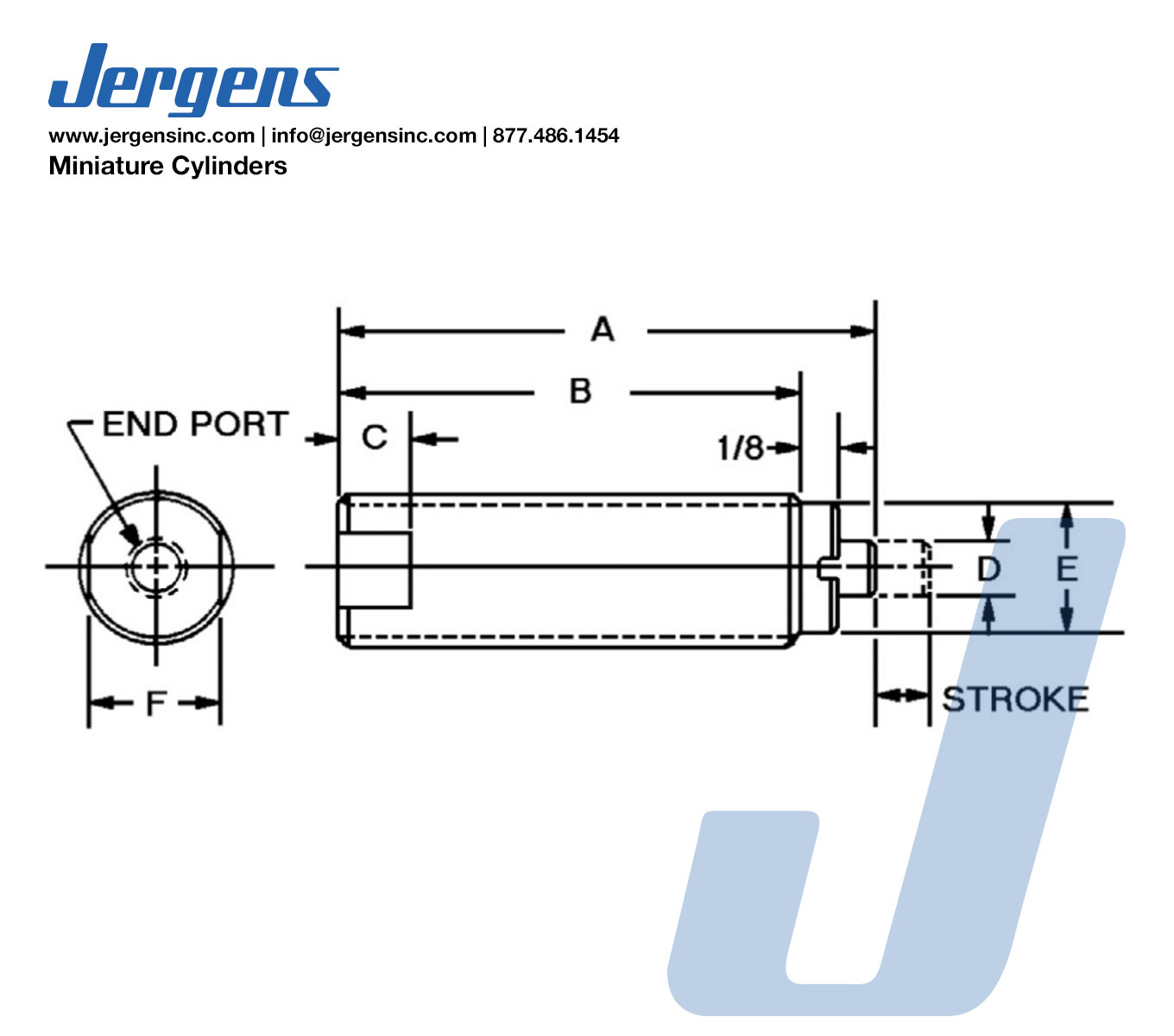

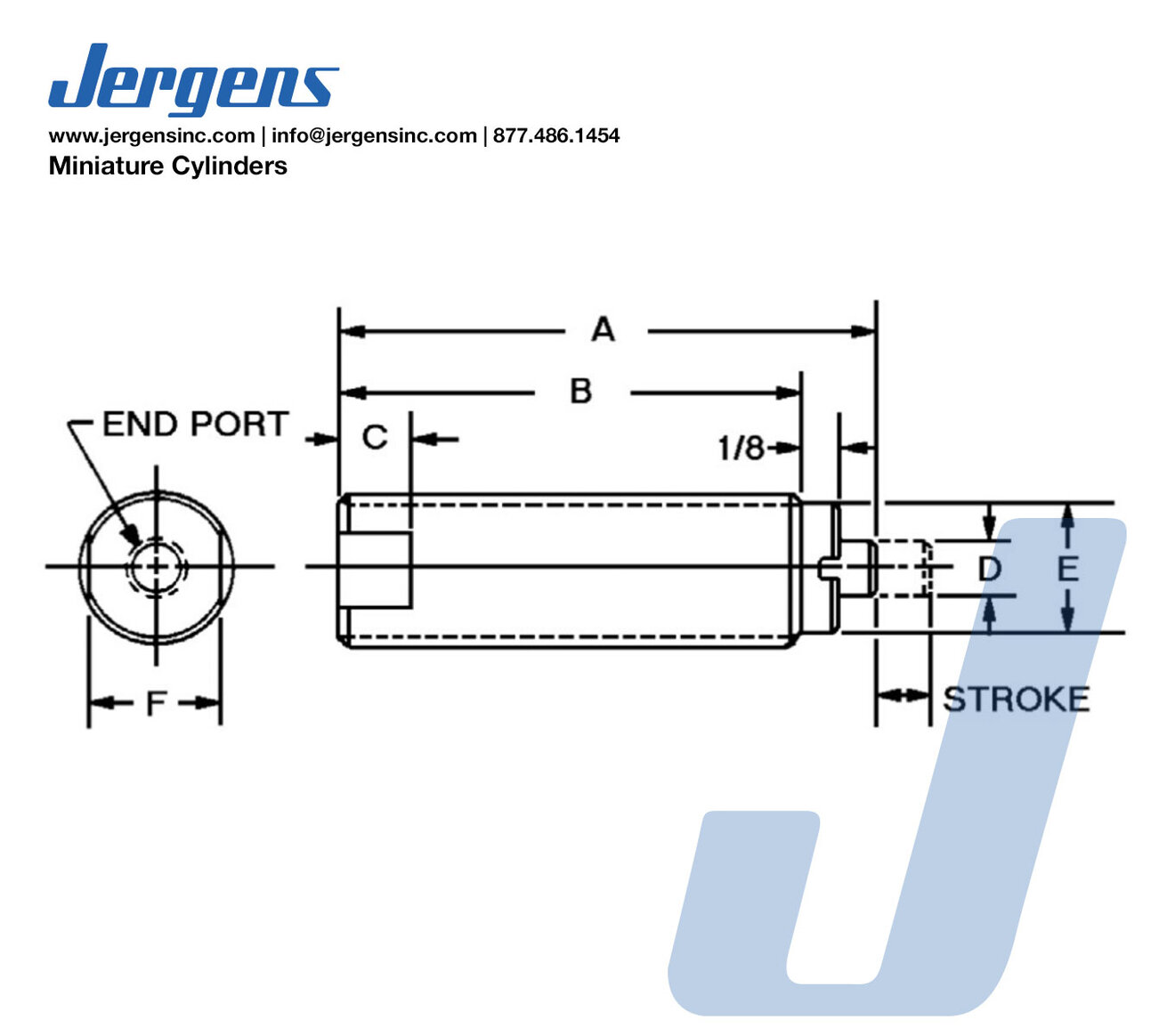

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Operating Stroke (In) | Effective Operating Volume (cu. in.) | Piston Area (sq. in.) | Minimum Operating Pressure (psi) | Maximum Operating Pressure (psi) | Output Force (lbs) | Body Thread | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | End Port | Repair Kit Part Number | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60461 |
|
Inch | 3/16 | 0.018 | 0.096 | 200 | 10,000 | 960 | 1/2-20 | 1 13/16 | 1 9/16 | 1/4 | 3/16 | 3/8 | 7/16 | 1/16-27 NPTF | 62125 | 0.5 |
| 60462 |
|
Inch | 1/2 | 0.049 | 0.196 | 300 | 10,000 | 1960 | 3/4-16 | 2 3/8 | 2 | 5/16 | 1/4 | 21/32 | 5/8 | 1/8-27 NPTF | 62126 | 0.7 |
