Manifold Mount Pressure Point Cylinders
Features, Benefits, & Product Specifications:
- Provides for clean installation
- Eliminates exposed fittings & plumbing
- Well suited for use in custom design fixtures
- Tips: Hardened Tool Steel (50-60RC)
Manifold Mount Pressure Point Cylinders

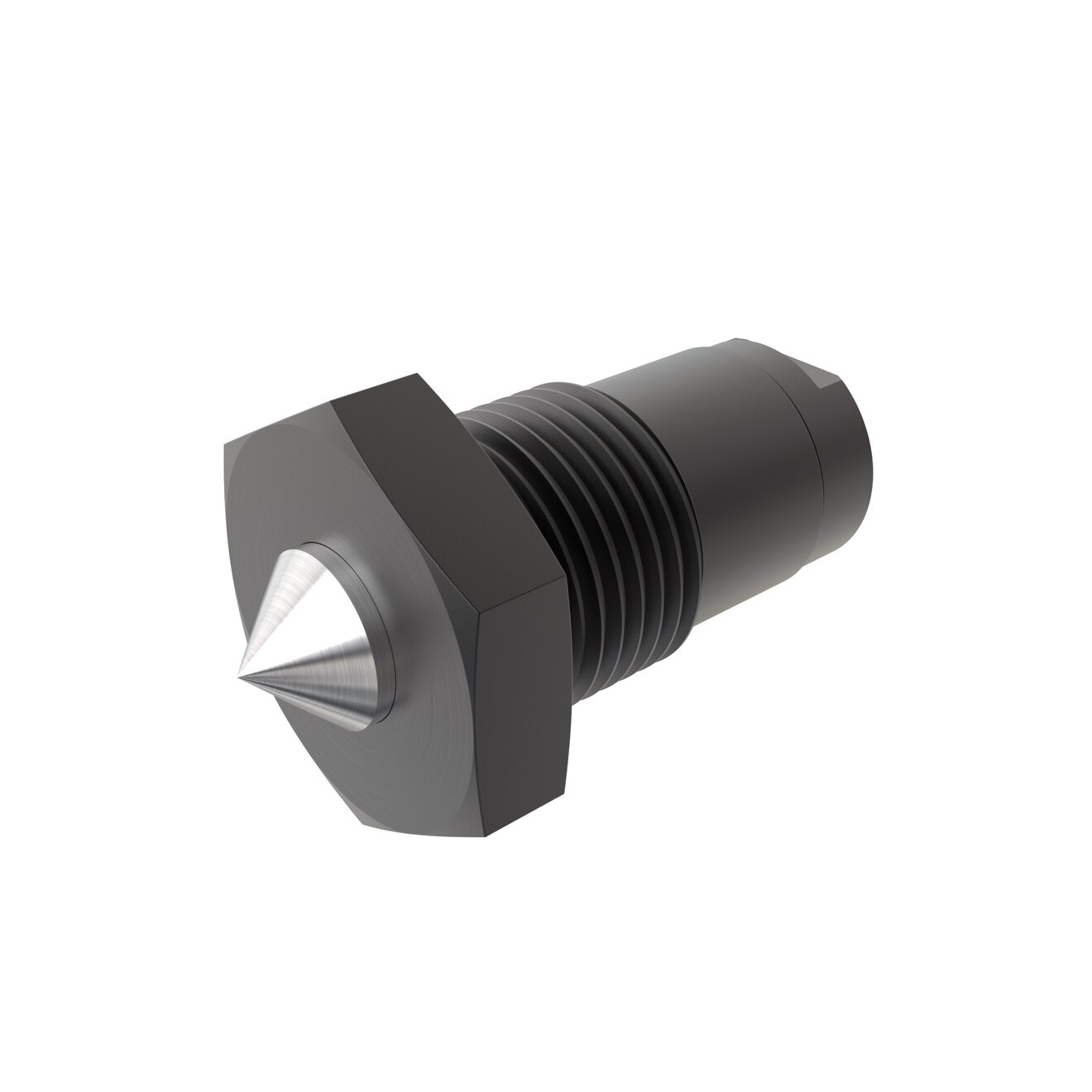

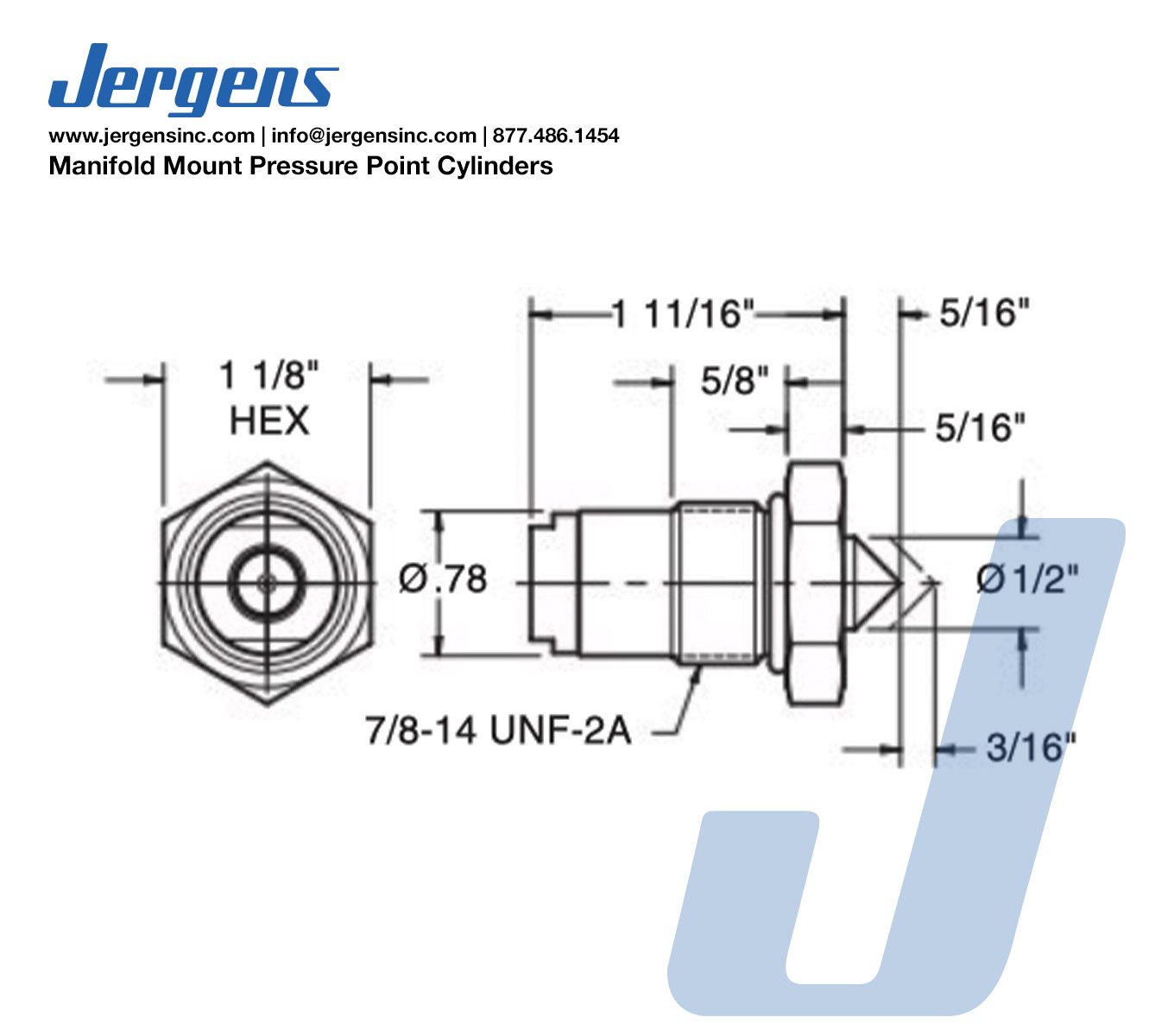

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Operating Stroke (In) | Operating Volume (cu. in.) | Effective Piston Area (sq. in.) | Minimum Operating Pressure (psi) | Maximum Operating Pressure (psi) | Maximum Output Force (lbs) | Pointed | Repair Kit Part Number | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 61522 |
|
Inch | 3/16 | 0.049 | 0.261 | 400 | 5000 | 1305 | Yes | 62157 | 0.5 |
| 61524 |
|
Inch | 3/16 | 0.049 | 0.261 | 400 | 5000 | 1305 | No | 62157 | 0.5 |
