Intensifier Cylinders
Jergens Intensifier Cylinders are combination air-hydraulic cylinders. An air-powered cylinder is driven into a small oil reservoir which produces a nominal 8:1 or 30:1 power boost ratio, depending on air pressure and the cylinder used. These miniature, self-contained power sources are ideal where fast action (100 operations per minute), a short stroke, and high power are needed.
Features, Benefits, & Product Specifications:
-
8:1 and 30:1 power boost ratios available
-
Self-contained
-
Fast acting
-
Air controlled
-
Easy recharge without disassembly
Intensifier Cylinders

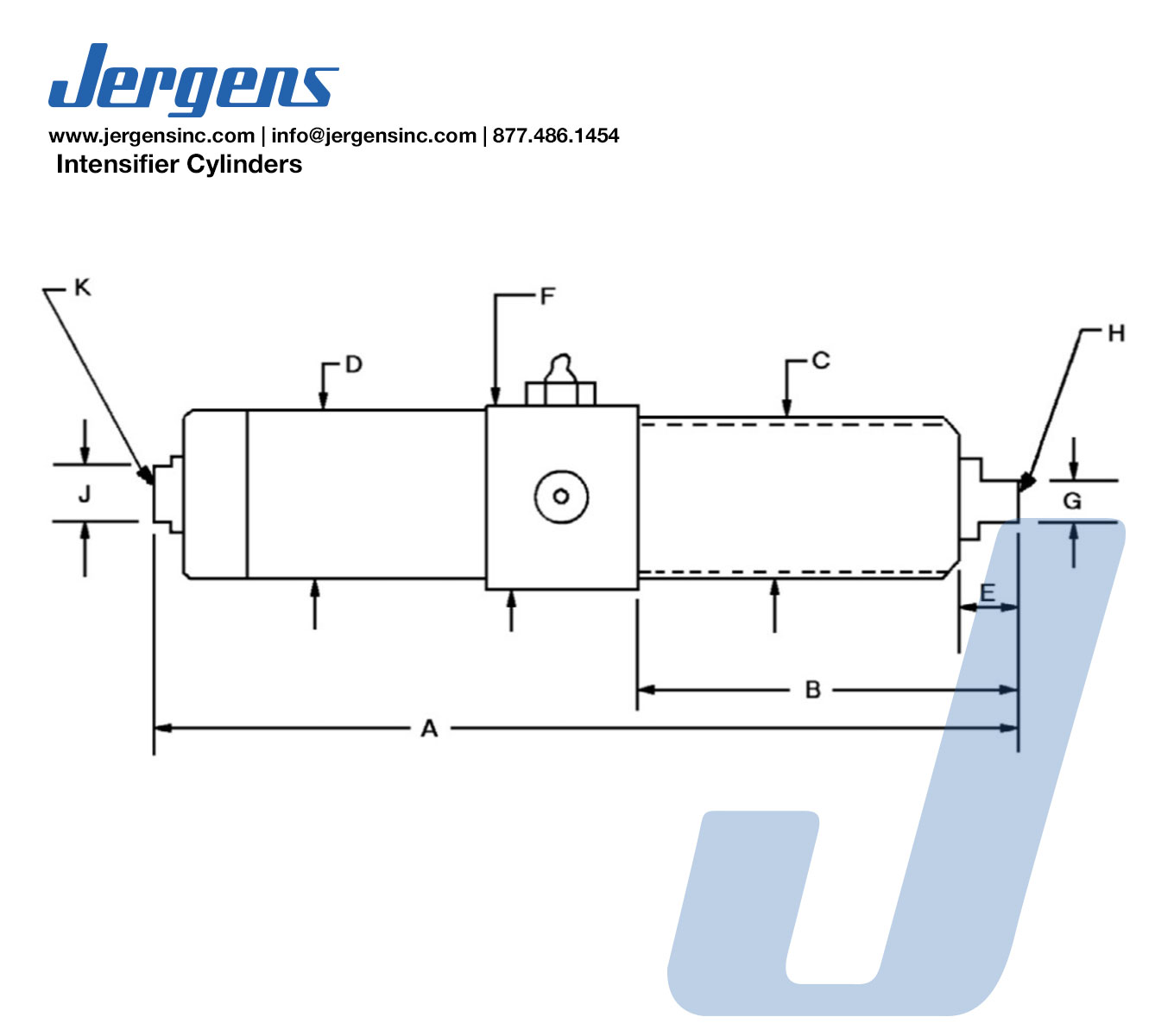

Select a part number for CAD drawings, price and stock availability.
Part Number | CAD | Unit | Operating Stroke | Ratio | A (In) | B (In) | Thread C | D (in) | E (in) | F (in) | Force at 25 psi min | Force at 50 psi | Force at 75 psi | Force at 100 psi | Force at 125 psi | Across Flats G (in) | Tap H | Across Flats J (in) | Port K | Repair Kit Part Number | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
60596 | Inch | 1/4 | 8:1 | 7 1/4 | 2 13/16 | 1 9/16-16 | 1 3/4 | 23/32 | 2 | 50 | 250 | 450 | 700 | 950 | 3/4 | 5/16-24 x 1/2 | 7/8 | 9/16-18 | 62177 | ||
60598 | Inch | 1/4 | 30:1 | 9 5/16 | 3 5/16 | 1 7/8-16 | 2 1/2 | 23/32 | 2 1/2 | 450 | 1300 | 2100 | 2900 | 3700 | 3/4 | 5/16-24 x 1/2 | 7/8 | 9/16-18 | 62179 |
