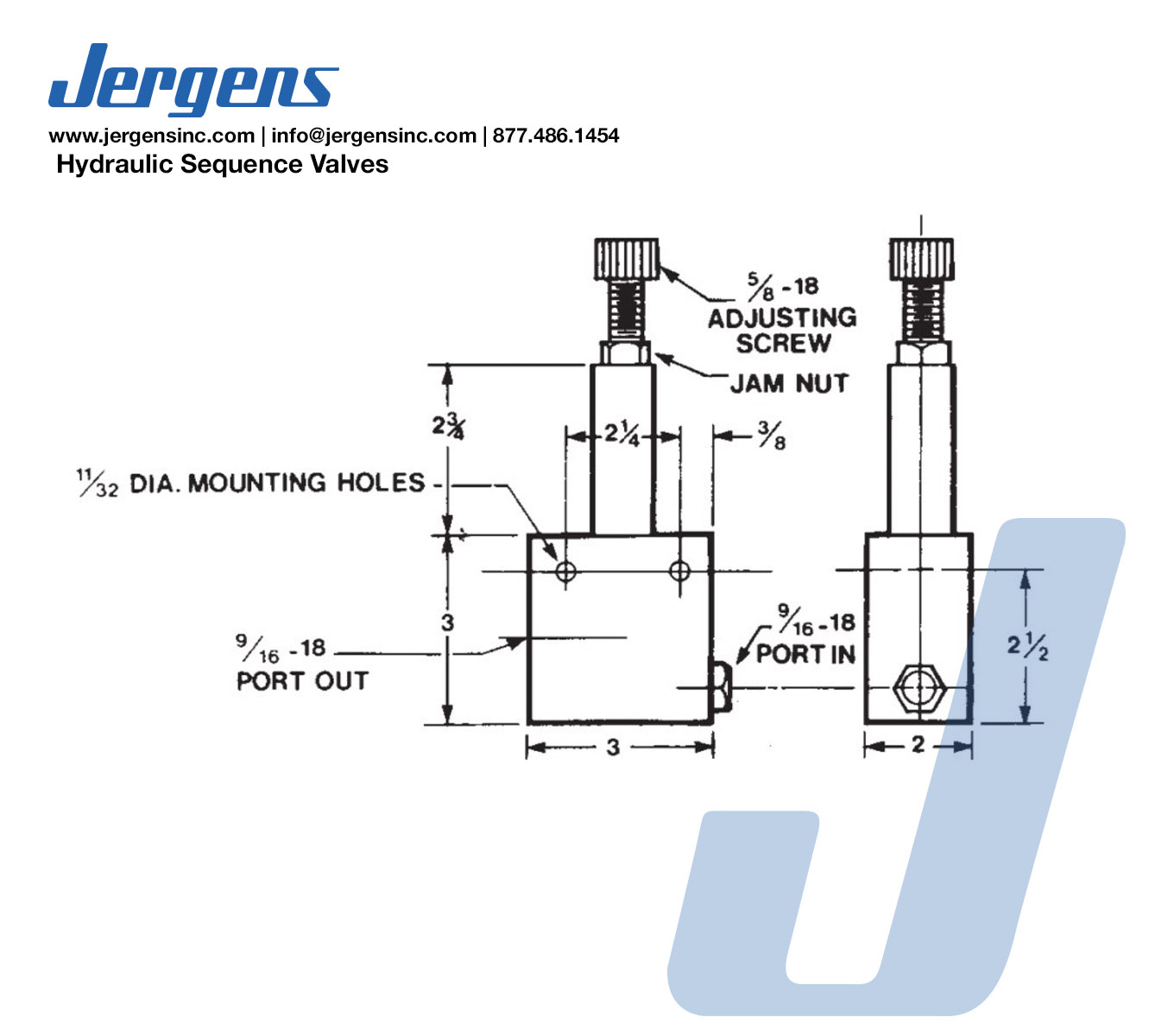

Hydraulic Sequence Valves
With adjustable opening pressure, Jergens Hydraulic Sequence Valves may be used to control the sequence of work devices in a common circuit.
Note(s):
Factory adjusted to sequence at 1000 psi.
Documents
Hydraulic Sequence Valves
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Port Size | Pressure Rating | Squence Range | Maintenance Kit |
|---|---|---|---|---|---|---|
| 61640 |
|
Inch | 9/16-18 | 5000 psi | 500-3000 psi | 62164 |
