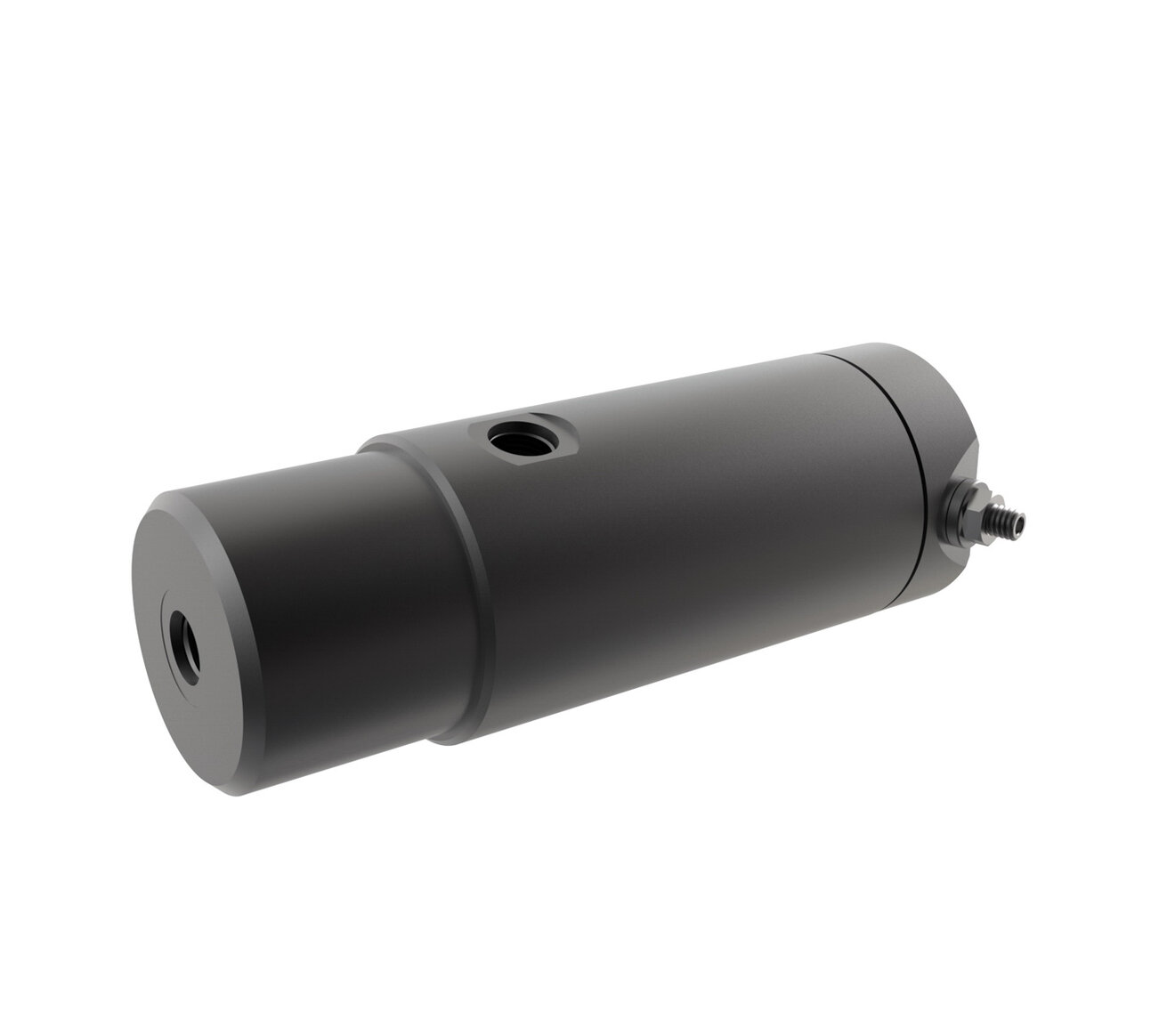

Hydraulic Intensifiers
Jergens Hydraulic Intensifiers are designed to be used on any machine tool with its hydraulic system where higher pressures are needed. Hydraulic Intensifiers will pre-fill your circuit at approximately 200 PSI maximum. Once the Hydraulic Intensifier sequences over to its high-pressure mode, it will deliver one cubic inch of working oil at seven times the input pressure.
Note(s):
Not recommended with the High Volume Air Powered Breadbox™ Pump.
Documents
Hydraulic Intensifiers
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | High Pressue Volume | Minimum Input (psi) | Maximum Input (psi) | Boost Ratio | Maximum Output (psi) | Prefill Adjustments | Repair Kit Part Number |
|---|---|---|---|---|---|---|---|---|---|
| 61701 |
|
Inch | 1 | 50 psi | 710 psi | 7:1 | 7000 psi | 50-200 psi | 62132 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
