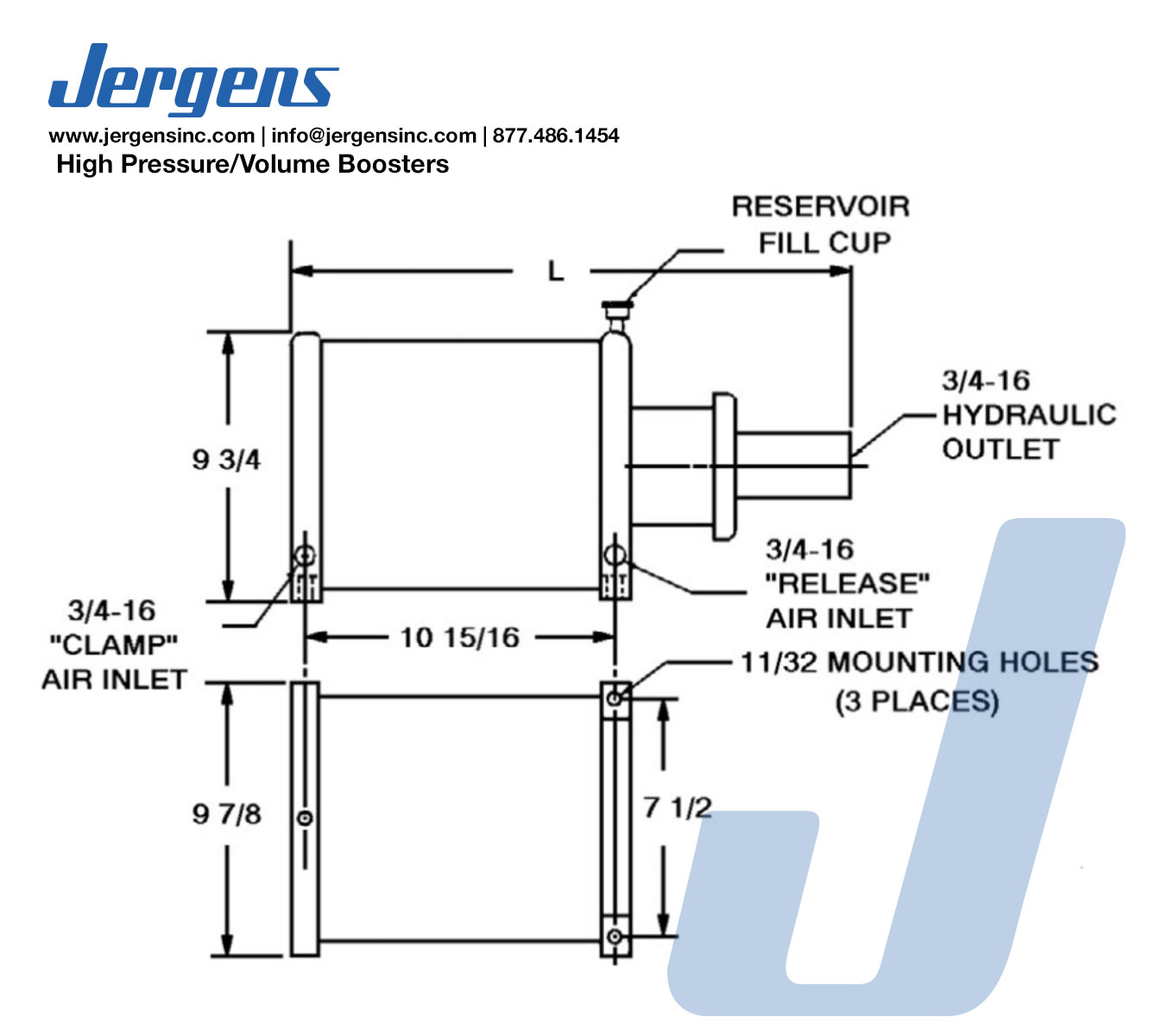

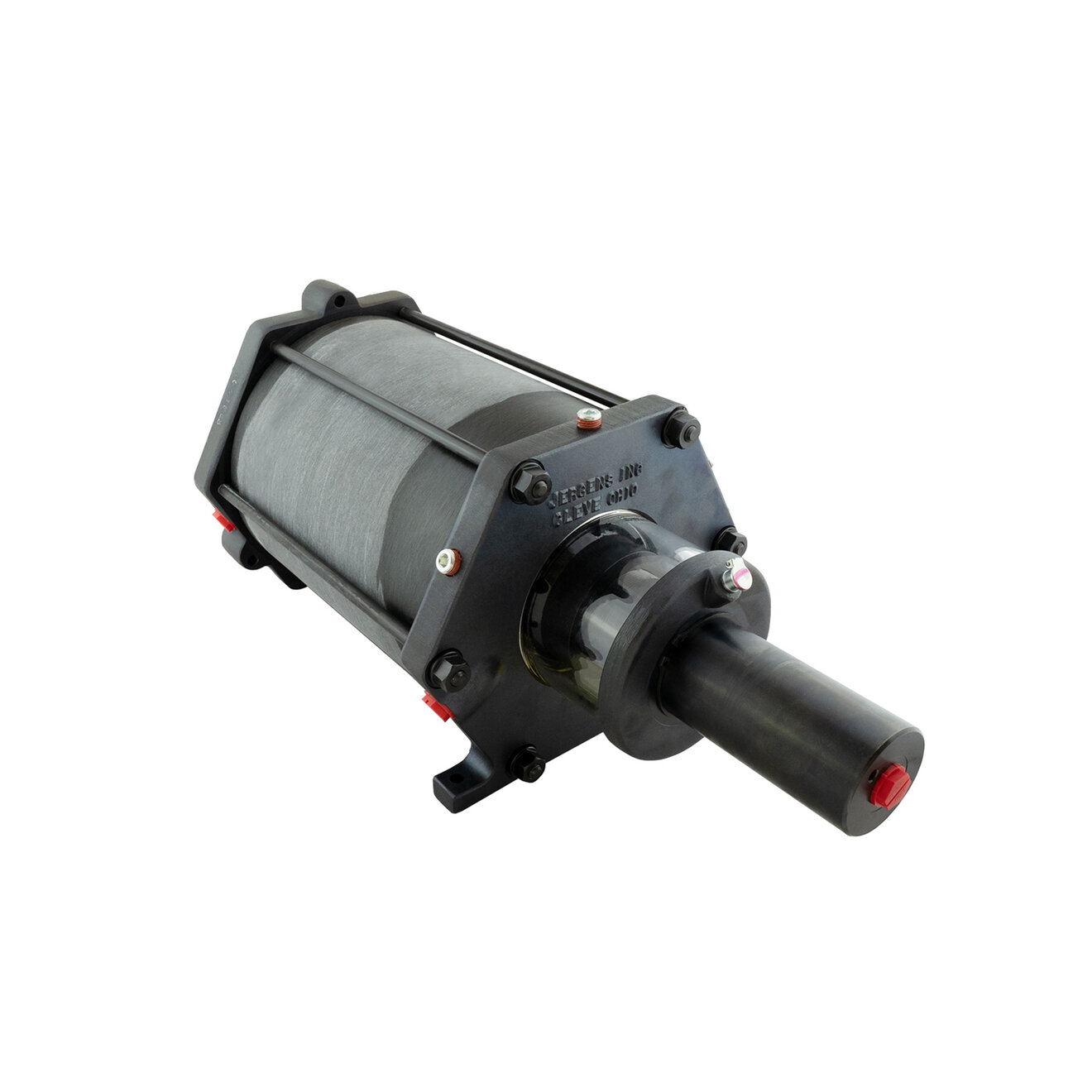

High Pressure/Volume Boosters
Jergens High Pressure/Volume Boosters are available in 26:1, 37:1, and 64:1 boost ratios.
Features, Benefits, & Product Specifications:
-
High output pressure
-
High pressure volume
Note(s):
High Pressure/Volume Boosters must be used only in the horizontal position.
High Pressure/Volume Boosters
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Reservoir Capacity (cu. in.) | High Pressure Volume | High Pressure Volume (cu. in.) | Minimum Input (psi) | Maximum Input (psi) | Boost Ratio | Maximum Output (psi) | Length (L) | Weight (lbs) | Repair Kit Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 61720 |
|
Inch | 17 | 12.9 | 12.9 | 10 | 125 | 26:1 | 3250 | 19 11/16 | 28 | 62173 |
| 61721 |
|
Inch | 17 | 9.1 | 9.1 | 10 | 125 | 37:1 | 4625 | 19 5/8 | 28 | 62174 |
| 61722 |
|
Inch | 17 | 5.3 | 5.3 | 10 | 125 | 64:1 | 8000 | 19 1/2 | 28 | 62175 |
Documents and Videos
Operating Manual- Operating Manual - 81600 ONLY
