Ergostyle® Control Levers by ELESA®

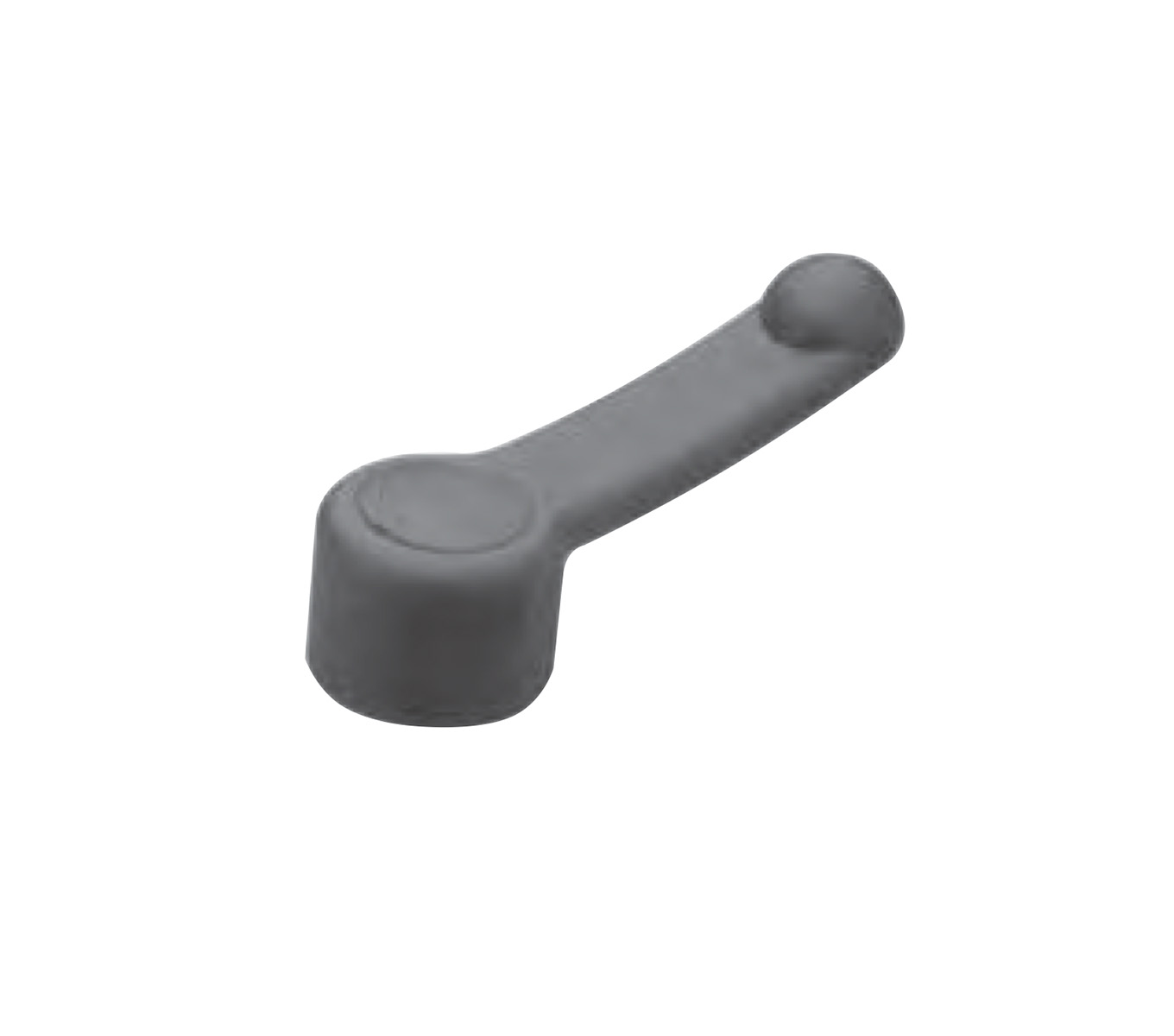

Jergens Ergostyle® Control Levers by ELESA® are built durable and comfortable for performing adjustment and positioning operations across any industry.
Features, Benefits, & Product Specifications:
-
Material: Glass-Fibre Reinforced Polyamide-Based (PA) Technopolymer
-
Finish & Color: Matte, Grey/Black
-
Boss Cap: Press-fit assembly, supplied, removable by a screwdriver
-
Adaptable for click positioning applications
- A limited maneuver angle is possible by fitting stop pins in the rear guide slot.
-
Optional boss cap colors available upon request (Black, Grey, Yellow, Blue & Red)
-
Resistant to solvents, oils, greases, and other chemical agents
Ergostyle® Control Levers by ELESA®

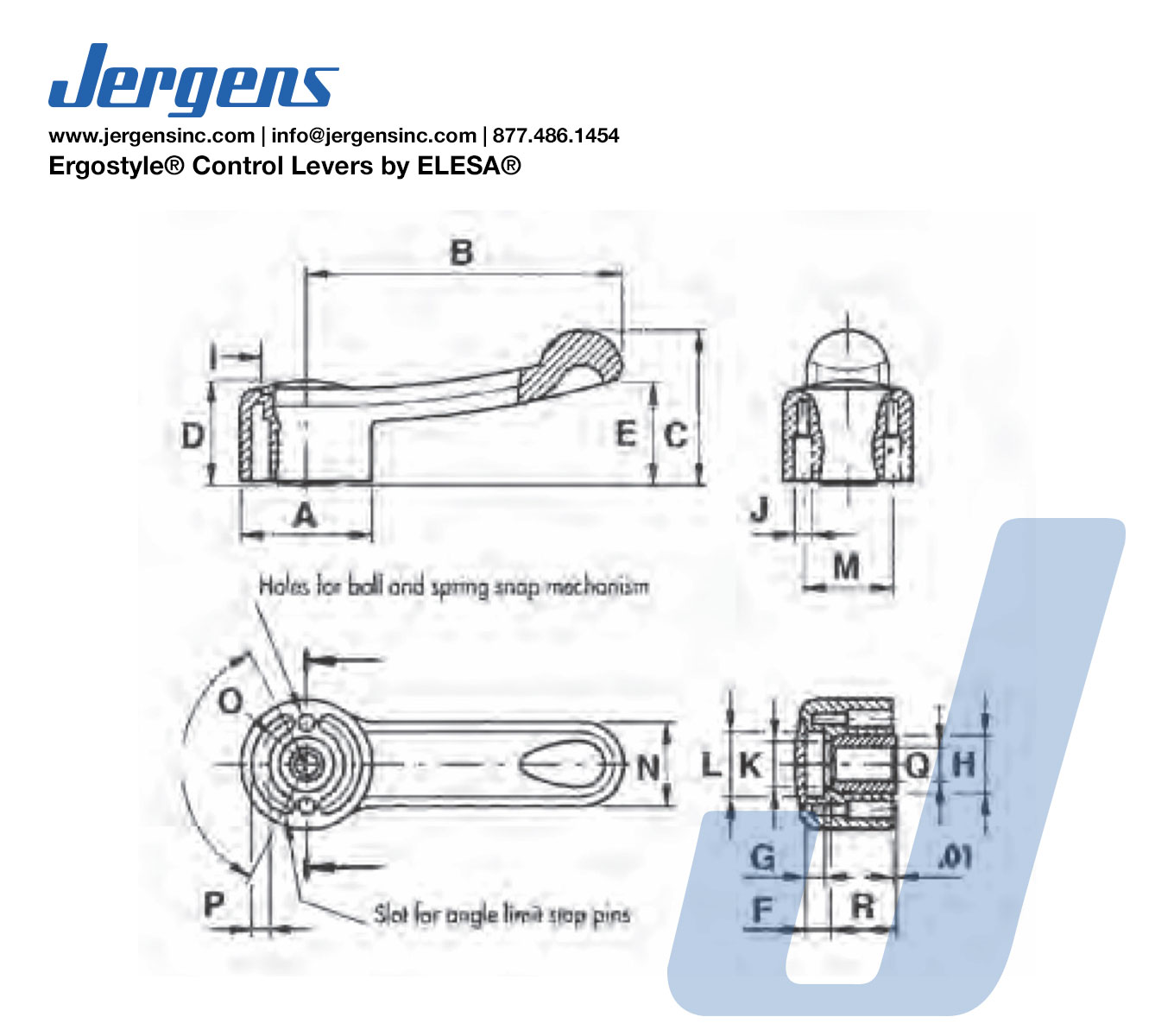

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J (In) | K (In) | L (In) | M (In) | N (In) | O (In) | P (In) | Q (In) | R (In) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 34460 |
|
Inch | 1.46 | 3.35 | 1.56 | 1.04 | 1.02 | 0.30 | 0.20 | 0.71 | 1.02 | 0.20 | 0.53 | 0.79 | 1.02 | 0.91 | 0.54 | 0.17 | 0.315 | 1.02 |
| 34461 |
|
Inch | 1.81 | 4.33 | 2.13 | 1.38 | 1.42 | 0.39 | 0.31 | 0.87 | 1.24 | 0.24 | 0.67 | 1.00 | 1.26 | 1.14 | 0.69 | 0.26 | 0.472 | 1.26 |
