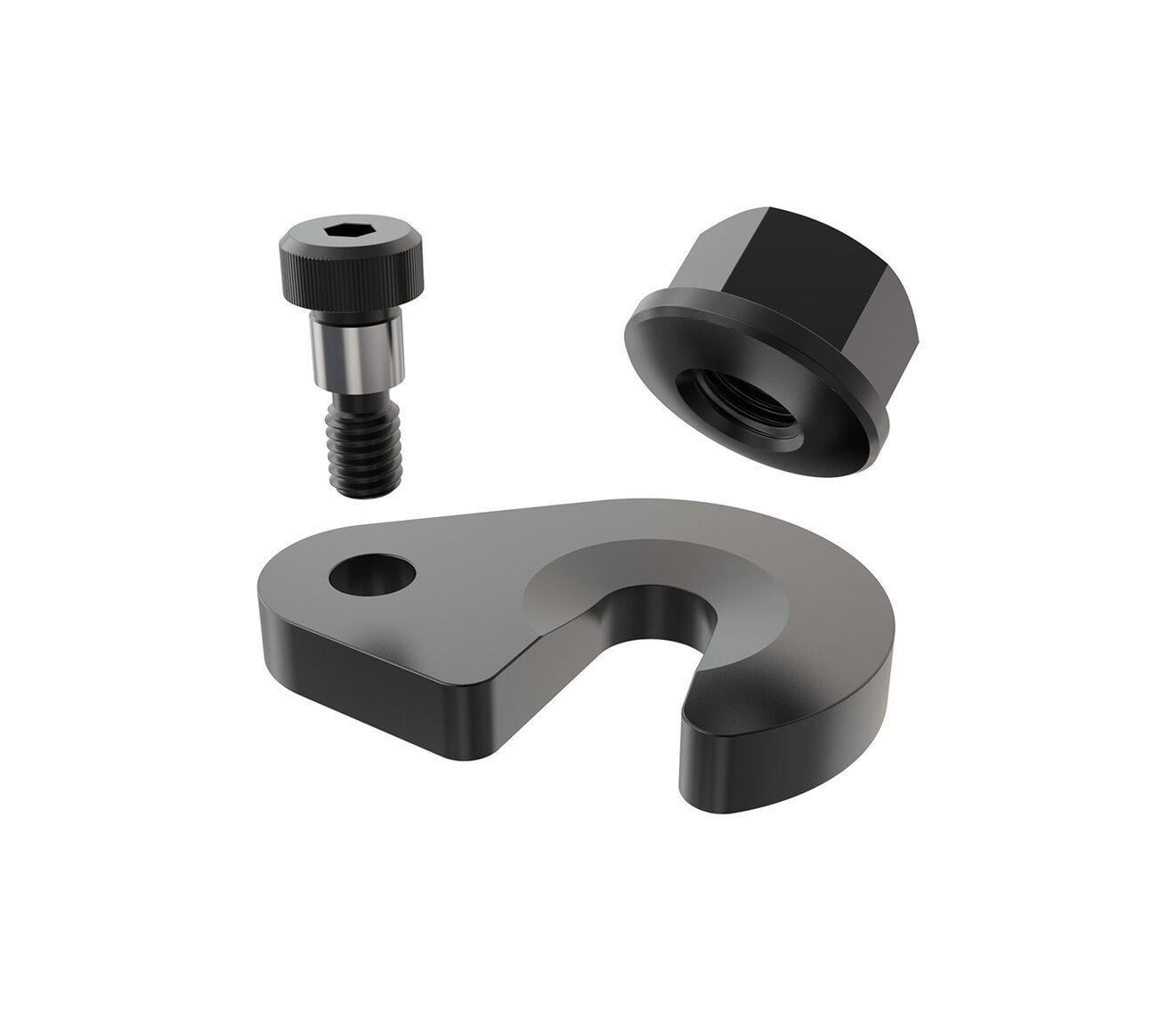

Equalizing Swing C Assembly Washers
Jergens Equalizing Swing C Assembly Washers have a concave center for self-locating around the stud, which prevents creeping while tightening, and allows acceptance of the mating spherical flange nuts. The spherical flange nut assures that the washer cannot back out either during clamping or due to vibration during the operation. The shoulder screw has a nylon lock to prevent the loosening of the screw during operation.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened
Equalizing Swing C Assembly Washers
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | Stud Size B (In) | C (In) | D (In) | E | F (In) | G (In) | R (In) | Flange Nut Part Number | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 37301 |
|
Inch | 1 | 3/8 | 1/4 | 13/16 | 5/16-18 | 1/2 | 3/8 | 3/4 | 39704 | 0.12 |
| 37302 |
|
Inch | 1 1/4 | 1/2 | 3/8 | 1 1/8 | 5/16-18 | 1/2 | 1/2 | 1 | 39705 | 0.30 |
| 37303 |
|
Inch | 1 1/2 | 5/8 | 3/8 | 1 5/16 | 3/8-16 | 5/8 | 9/16 | 1 1/8 | 39706 | 0.39 |
| 37304 |
|
Inch | 1 3/4 | 3/4 | 1/2 | 1 9/16 | 3/8-16 | 5/8 | 5/8 | 1 1/4 | 39707 | 0.72 |
