Double Acting Cylinders
Jergens Double Acting Cylinders can be used for clamping, holding, positioning, staking, punching, or anywhere that a heavy-duty cylinder is needed. If the cylinder is mounted in the fixture (as opposed to using mounting brackets), the fixture should be bored to between 0.0005" and 0.0010" over the “A” dimension. Doing so will prevent an out-of-round condition of the cylinder body, which could damage the piston. They may be returned by air or by hydraulic pressure.
Double Acting Cylinders
Select a part number for CAD drawings, price and stock availability.

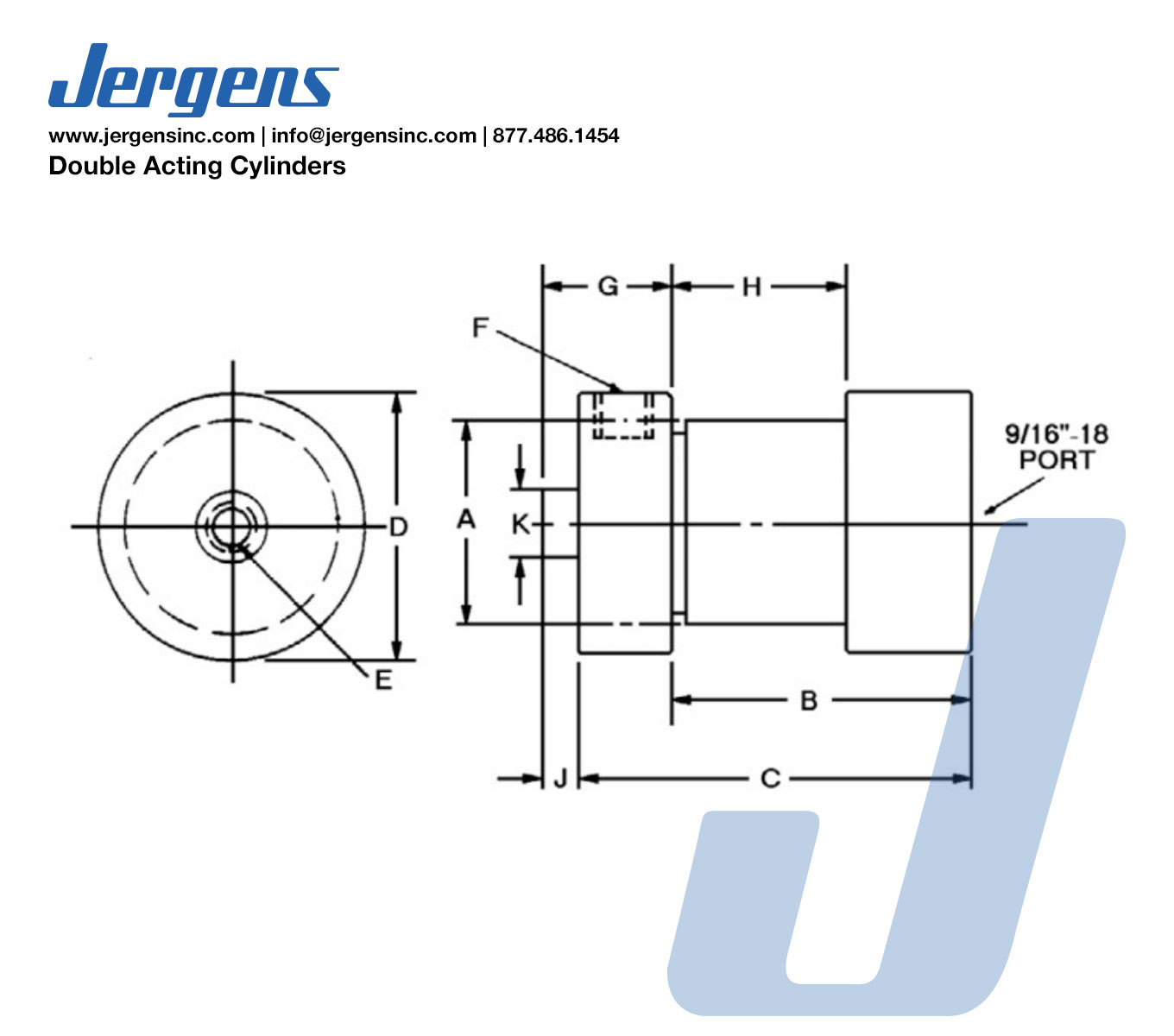

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | Tap E | F | G (In) | H (In) | J (In) | K (In) | Operating Stroke (In) | Operating Volume (cu. in.) | Effective Piston Area +Push | Effective Piston Area +Pull | Minimum Operating Pressure (psi) | Maximum Operating Pressure (psi) | Maximum Output Force (lbs) | Repair Kit Part Number | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60341 |
|
Inch | 2.5 | 2 11/16 | 3 3/8 | 2.96875 | 3/8-16x3/4 | 7/16-20 | 31/32 | 1 9/32 | 1/4 | 3/4 | 1 | 3.14 | 3.14 | 2.699 | 20 | 3000 | 9300 | 62105 | 4.5 |
| 60345 |
|
Inch | 1.5 | 2 7/16 | 3 1/8 | 2.46875 | 3/8-16x3/4 | 7/16-20 | 31/32 | 1 9/32 | 1/4 | 1/2 | 1 | 1.1 | 1.1 | 0.912 | 20 | 3000 | 3300 | 62189 | 2.5 |
| 60350 |
|
Inch | 1.5 | 3 1/2 | 4 1/2 | 2.46875 | 1/4-20x1/2 | 9/16-18 | 1 7/32 | 2 11/32 | 1/4 | 7/16 | 2 | 2.2 | 1.1 | 0.956 | 20 | 3000 | 3000 | 62120 | 3.5 |
| 60351 |
|
Inch | 2.5 | 3 3/4 | 4 23/32 | 2 31/32 | 3/8-16x3/4 | 9/16-18 | 1 3/16 | 2 11/32 | 1/4 | 3/4 | 2 | 6.28 | 3.14 | 2.699 | 20 | 3000 | 9300 | 62121 | 6.0 |
| 60360 |
|
Inch | 1.5 | 4 1/2 | 5 1/2 | 2 15/32 | 1/4-20x1/2 | 9/16-18 | 1 7/32 | 3 11/32 | 1/4 | 7/16 | 3 | 3.31 | 1.1 | 0.956 | 20 | 3000 | 3000 | 62120 | 4.75 |
| 60361 |
|
Inch | 2.5 | 4 3/4 | 5 23/32 | 2 31/32 | 3/8-16x3/4 | 9/16-18 | 1 3/16 | 3 11/32 | 1/4 | 3/4 | 3 | 9.42 | 3.14 | 2.699 | 20 | 3000 | 9300 | 62121 | 6.2 |
