Cast Iron Cross Tooling Columns
Jergens Cast Iron Tooling Columns are fully customizable to provide the optimum workholding solution for your unique application. Incorporate one of our industry-leading “Quick-Change” systems, including Ball Lock® and ZPS, for maximum productivity. Contact our Technical Sales Engineering Team to request a quote for your custom configuration or project.
Features, Benefits, & Product Specifications:
-
Material: Stress Relieved Class 40 Cast Iron
-
Rigid single-piece construction
-
Base and sides milled flat, perpendicular, & parallel within 0.001” per ft.
-
Includes mounting holes for popular 400mm & 500mm pallets
-
Custom sizes & configurations available upon request
-
Included hardware:
- Top coverplate
- (2) Jergens Center Pull Hoist Rings

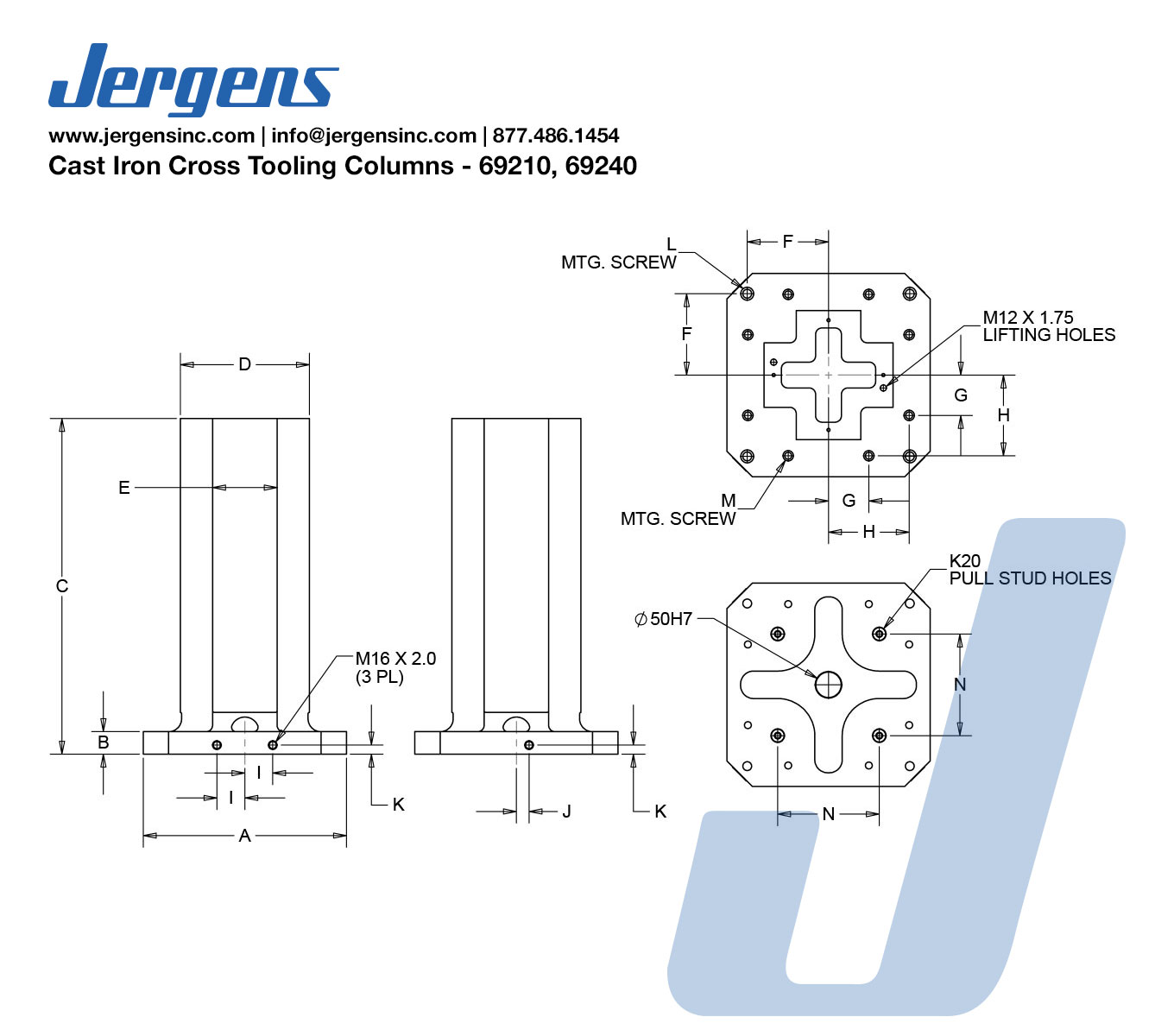

Cast Iron Cross Tooling Column_LineArt
Cast Iron Cross Tooling Columns
| Part Number | CAD | Unit | A (mm) | B (In) | C (In) | D (in) | E (in) | F (in) | G (in) | H (in) | I (in) | J (in) | K (in) | L | M | N (in) | Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 69210 |
|
Inch | 400 | 1.75 | 26.00 | 10.00 | 5.00 | 6.30 | 3.125 | 6.25 | 2.165 | 0.984 | 0.709 | 5/8" (M16) | 1/2" (M12) | 7.874 | 460 | |
| 69240 |
|
Inch | 500 | 1.75 | 30.00 | 12.50 | 6.00 | 7.874 | 4.00 | 8.00 | 2.953 | 0.984 | 0.709 | 5/8" (M16) | 1/2" (M12) | 7.874 | 705 |
