Single Acting Horizontal Block Cylinders
Jergens Single Acting Horizontal Block Cylinders feature a compact design for simple mounting.
Note(s):
Single Acting Horizontal Block Cylinders are not recommended for applications where coolant or chips are prevalent.
Single Acting Horizontal Block Cylinders

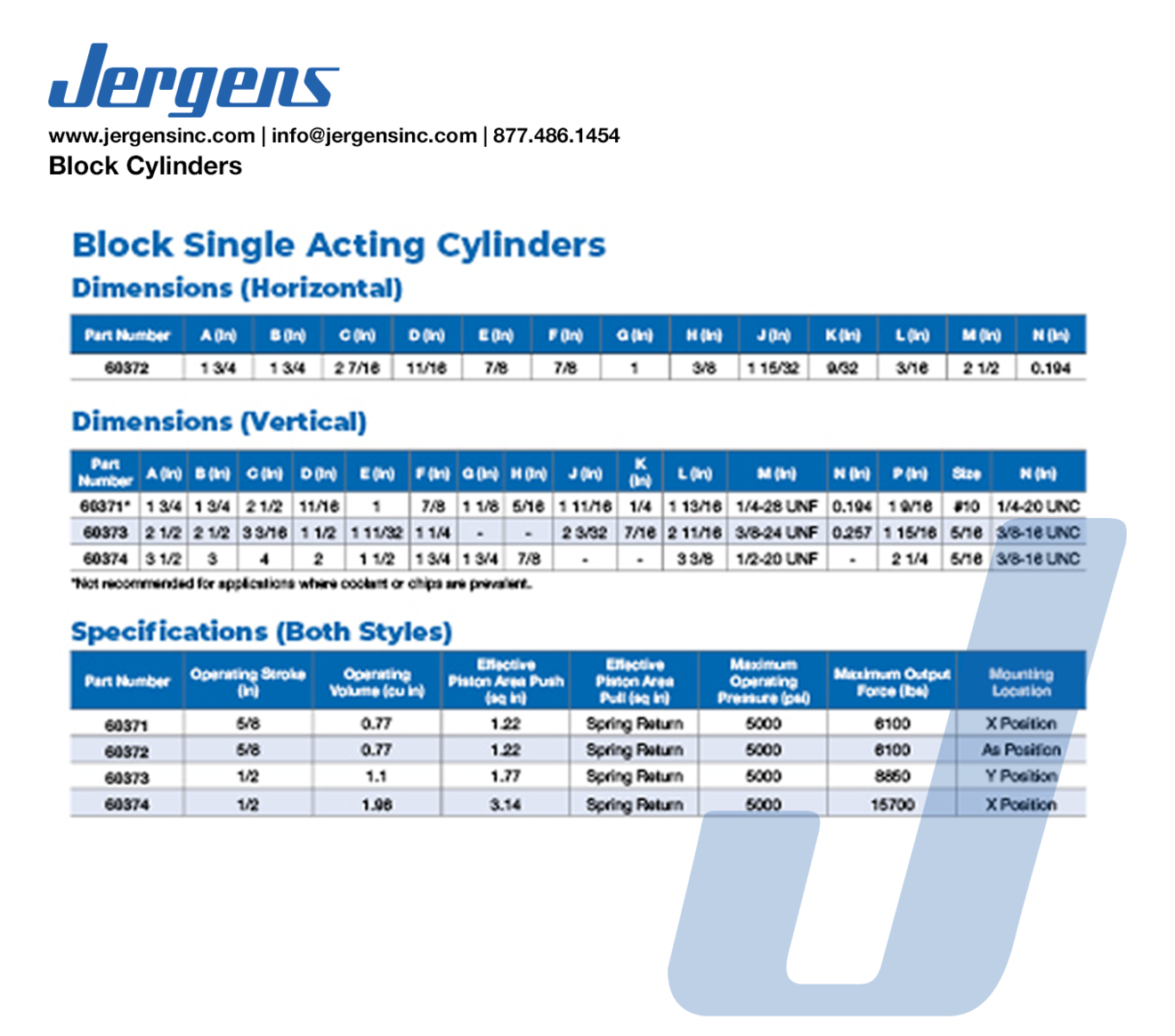

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A | B | C | D | E | F | G | H | J | K | L | M | N | Operating Stroke (In) | Operating Volume (cu. in.) | Push Effective Piston Area | Pull Effective Piston Area | Maximum Operating Pressure (psi) | Maximum Output Force (lbs) | Mounting Location | Repair Kit Part Number | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60372 |
|
Inch | 1 3/4 | 1 3/4 | 2 7/16 | 11/16 | 7/8 | 7/8 | 1 | 3/8 | 1 15-32 | 9/32 | 3/16 | 2 1/2 | 0.194 | 5/8 | 0.77 | 1.22 | Spring Return | 5000 | 6100 | As Position | 62167 | 2 |
