Block Heavy Duty Double Acting Cylinders
Jergens Block Heavy Duty Double Acting Cylinders are great for punching, pressing, and assembly operations.
Features, Benefits, & Product Specifications:
-
Simple mounting
-
Compact design
-
High output forces
Block Heavy Duty Double Acting Cylinders
Select a part number for CAD drawings, price and stock availability.

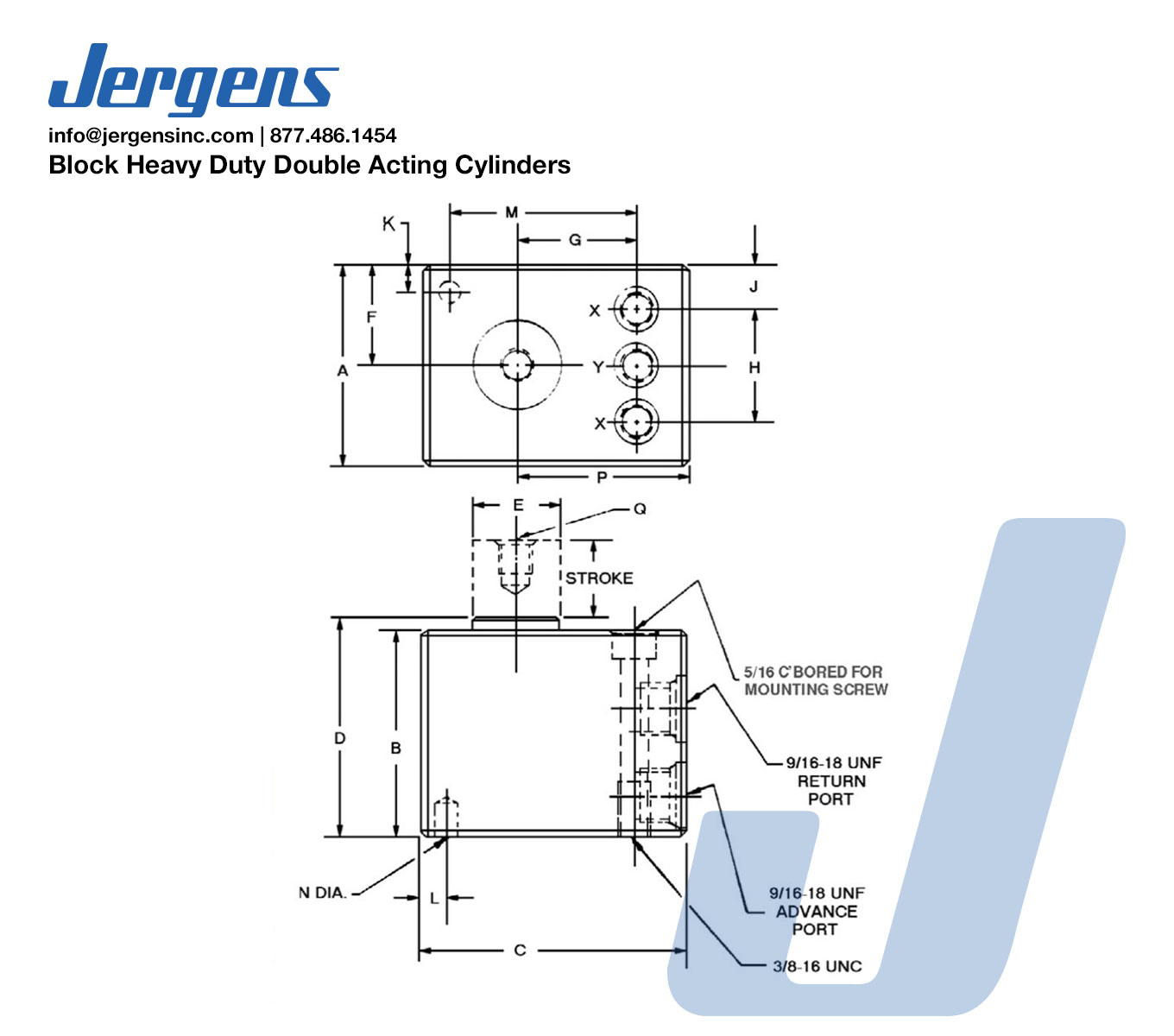

| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | J (In) | K (In) | L (In) | M (In) | N (In) | P (In) | Q | Operating Stroke (In) | Operating Volume (cu. in.) | Effective Piston Area +Push | Effective Piston Area +Pull | Minimum Operating Pressure (psi) | Maximum Operating Pressure (psi) | Maximum Output Force (lbs) | Mounting Location | Repair Kit Part Number | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60381 |
|
Inch | 2 1/4 | 2 5/16 | 3 | 2 7/16 | 1 | 1 1/8 | 1 11/32 | - | - | 5/16 | 5/16 | 2 3/32 | 0.257 | 1 15/16 | 3/8-24 UNF-2B | 1/2 | 0.88 | 1.77 | 0.98 | 20 | 5000 | 8850 | Y | 62170 | 4 |
| 60382 |
|
Inch | 2 1/4 | 2 13/16 | 3 | 2 15/16 | 1 | 1 1/8 | 1 11/32 | - | - | 5/16 | 5/16 | 2 3/32 | 0.257 | 1 15/16 | 3/8-24 UNF-2B | 1 | 1.77 | 1.77 | 0.98 | 20 | 5000 | 8850 | Y | 62170 | 4.8 |
| 60383 |
|
Inch | 3 1/4 | 3 1/4 | 3 3/4 | 3 3/8 | 1 1/2 | 1 5/8 | 1 1/2 | 1 3/4 | 3/4 | - | - | - | - | 2 1/4 | 1/2-20 UNF-2B | 1/2 | 1.57 | 3.14 | 1.37 | 20 | 5000 | 15700 | X | 62171 | 10.5 |
| 60384 |
|
Inch | 3 1/4 | 3 3/4 | 3 3/4 | 3 7/8 | 1 1/2 | 1 5/8 | 1 1/2 | 1 3/4 | 3/4 | - | - | - | - | 2 1/4 | 1/2-20 UNF-2B | 1 | 3.14 | 3.14 | 1.37 | 20 | 5000 | 15700 | X | 62171 | 12.1 |
