Ball Lock® Subplates for Tooling Columns
Subplate mounting holes can be provided per customer specification. Supplied with (4) Ball Lock® Receiver Bushings installed.
Features, Benefits, & Product Specifications:
-
Material: Fremax™ 15 steel plate or equivalent
-
Thickness: 1-1/8" ±0.005" (Inch), 28.57mm ±0.13mm (Metric)
-
Parallel within 0.001" (0.025mm)
Ball Lock® Subplates for Tooling Columns
Select a part number for CAD drawings, price and stock availability.

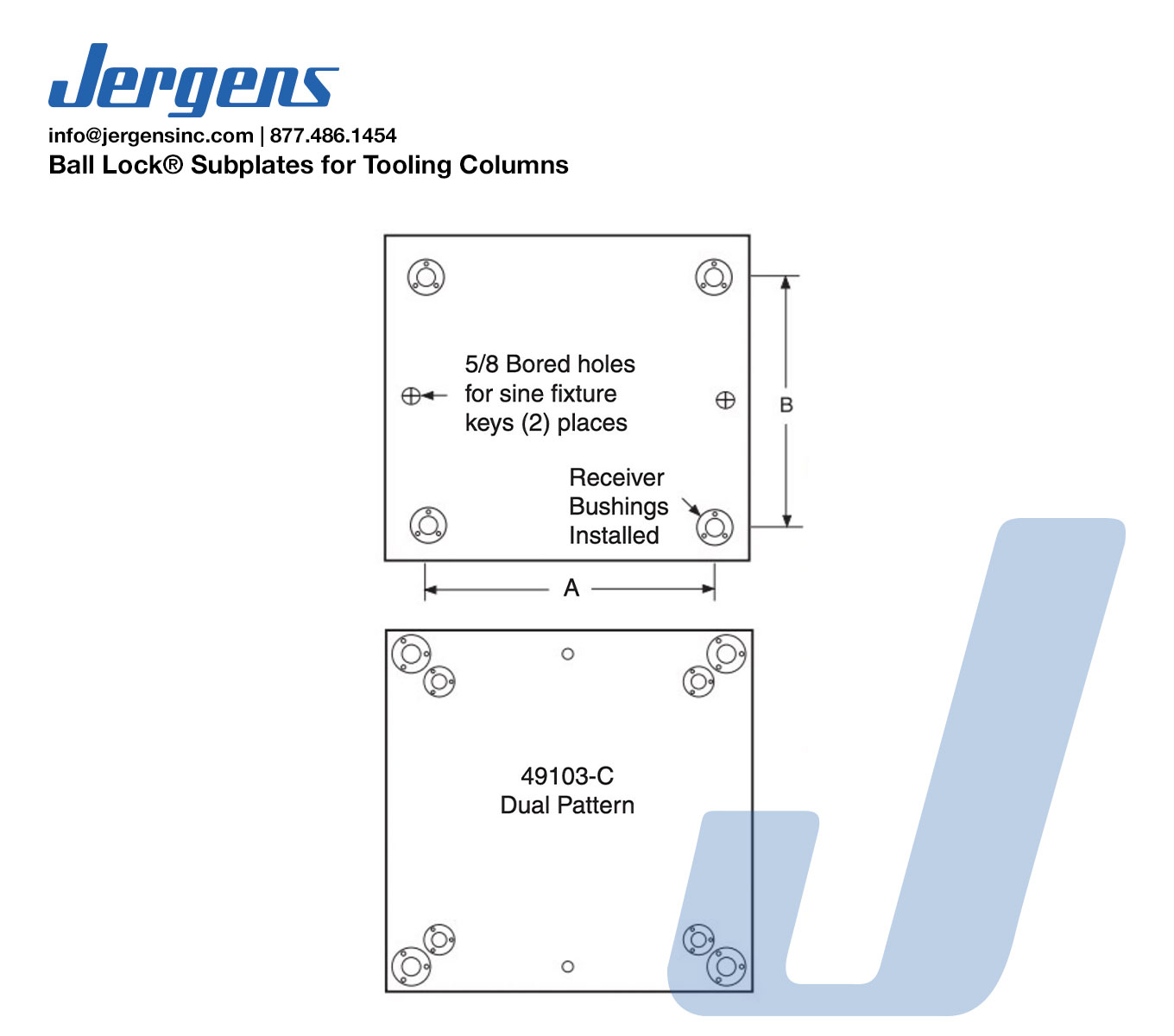

| Part Number | CAD | Unit | Pallet Size (mm) | Subplate Thickness (In) | Ball Lock Receiver (mm) | Receiver Bushing Center Distance A x B (In) | 2-Sided Tooling Column Part Number | 4-Sided Tooling Column Part Number | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 49102 |
|
Inch | 400 | 1.125 | 20 | 14 x 14 | 69101 | 69001 | 79 |
| 49103 |
|
Inch | 500 | 1.25 | 25 | 17 x 17 | 69111, 69112 | 69011 | 137 |
| 49103-C |
|
Inch | 500 | 1.25 | 20/25 Dual | 14/17 x 14/17 Dual | 69101, 69111, 69112 | 69001, 69011 | 137 |
| 49104 |
|
Inch | 630 | 1.375 | 35 | 21 x 21 | 69121 | 69021 | 240 |
| Part Number | CAD | Unit | Pallet Size (mm) | Subplate Thickness (mm) | Ball Lock Receiver (mm) | Receiver Bushing Center Distance A x B (mm) | 2-Sided Tooling Column Part Number | 4-Sided Tooling Column Part Number | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|
| 59102 |
|
Metric | 400 | 28.57 | 20 | 350 x 350 | 69151 | 69051 | 31 |
| 59103 |
|
Metric | 500 | 31.75 | 25 | 425 x 425 | 69161 | 69061 | 59 |
| 59103-C | Metric | 500 | 31.75 | 20/25 Dual | 350/425 x 350/425 Dual | 69151, 69161 | 69051, 69061 | 59 | |
| 59104 | Metric | 630 | 34.92 | 35 | 525 x 525 | 69171 | 69071 | 124 |
