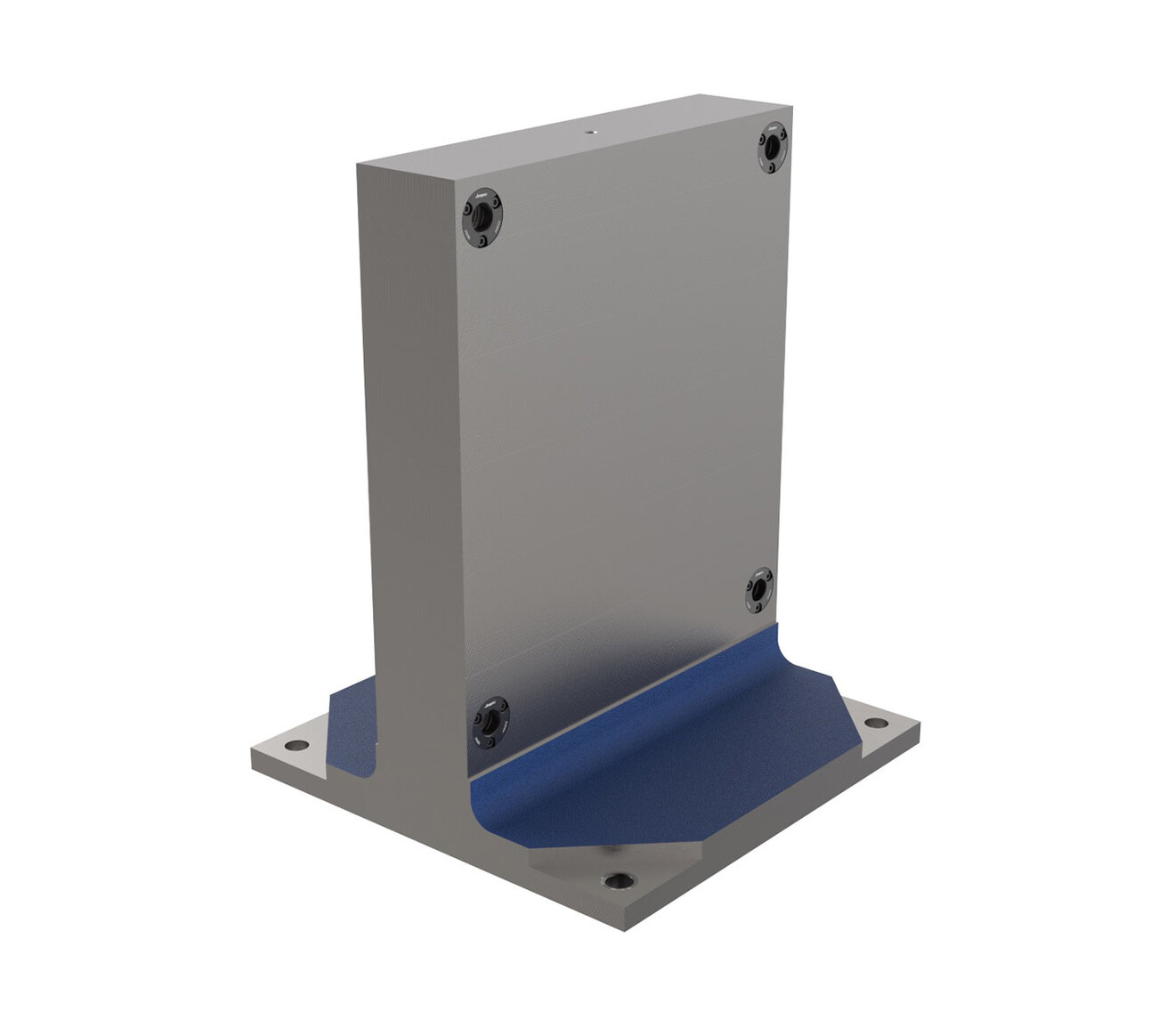

Ball Lock® 2-Sided Tooling Columns
Jergens Ball Lock® Tooling Columns provide an accurate fixturing base for CNC machining centers.
Features, Benefits, & Product Specifications:
-
Material: Class 40 Cast Iron (also available in Aluminum)
-
Ball Lock® Receiver Bushings & Liners installed
-
Perpendicularity is 0.001" per foot (0.025mm per 250mm)
-
Order Hoist Ring (Part No. 23411) for lifting & handling
Custom Sizes Available with or without Ball Lock®
We are able to quote you on your special requirement with or without the Ball Lock® Mounting System. Call 1 (877) 426-2504 for design specification information.
Ball Lock® 2-Sided Tooling Columns
Select a part number for CAD drawings, price and stock availability.

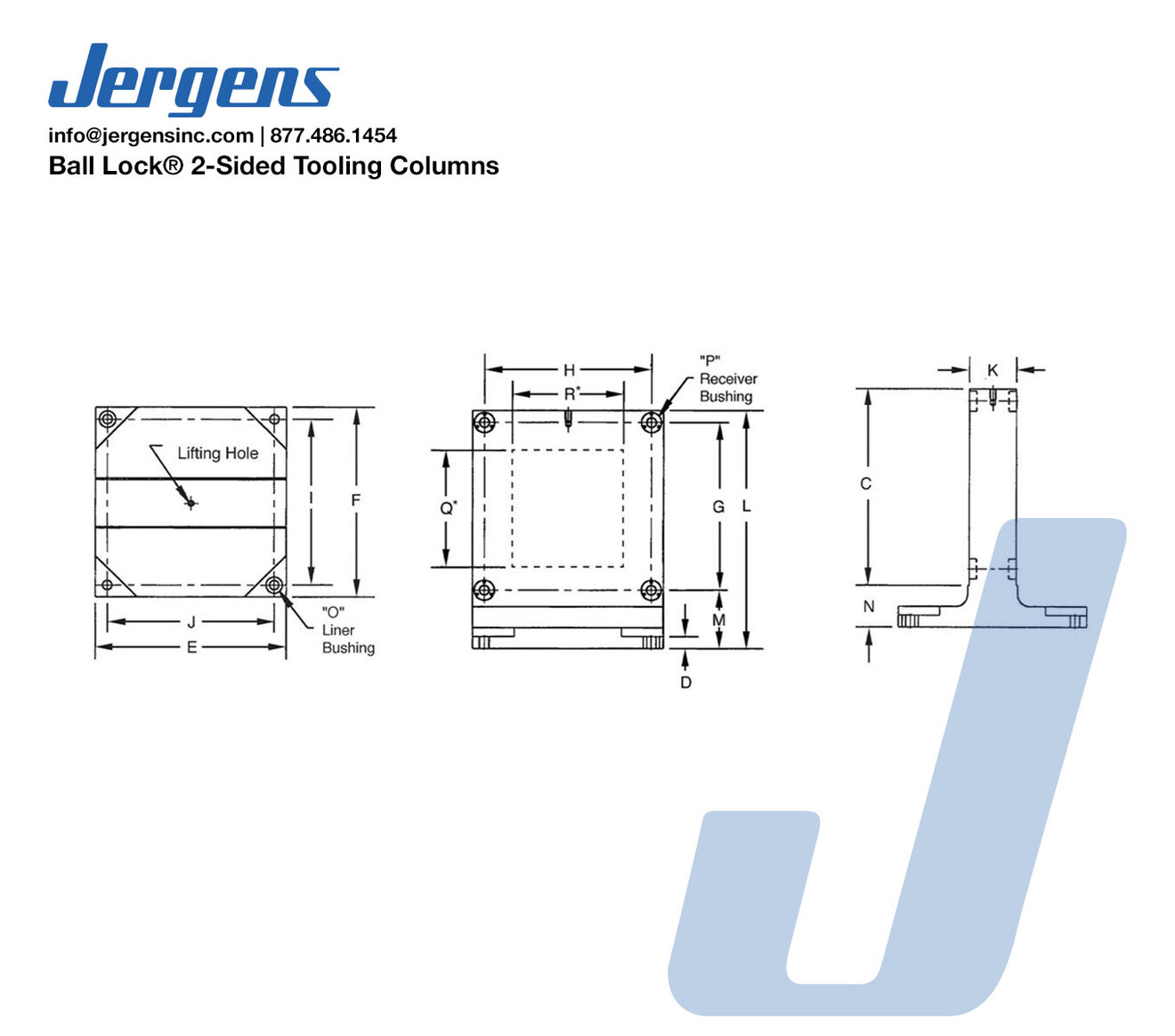

| Part Number | CAD | Unit | Pallet Size (mm) | C (In) | D (In) | E (In) | F (In) | G (In) | H (In) | I (In) | J (In) | K (In) | L (In) | M (In) | N (In) | O (In) | P (In) | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 69101 |
|
Inch | 400 | 16.375 | 1 | 15.75 | 15.75 | 14 | 14 | 14 | 14 | 4 | 19.875 | 4.875 | 3.5 | 20 | 20 | 425 |
| 69102 | Inch | 400 | 16.375 | 1 | 15.75 | 15.75 | 12 | 12 | 12 | 12 | 4 | 19.875 | 5.875 | 3.5 | 20 | 20 | 425 | |
| 69111 |
|
Inch | 500 | 22.375 | 1 | 20 | 20 | 19 | 17 | 17 | 17 | 4.7 | 25.875 | 5.375 | 3.5 | 25 | 25 | 700 |
| 69112 | Inch | 500 | 22.375 | 1 | 19.68 | 19.68 | 17 | 17 | 17 | 17 | 4.7 | 25.875 | 7.375 | 3.5 | 25 | 25 | 700 | |
| 69121 |
|
Inch | 630 | 26.375 | 1.5 | 25 | 25 | 23 | 22 | 21 | 21 | 4 | 29.875 | 5.375 | 3.5 | 35 | 25 | 1125 |
| Part Number | CAD | Unit | Pallet Size (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | K (mm) | L (mm) | M (mm) | N (mm) | O (mm) | P (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 69151 | Metric | 400 | 410 | 25 | 400 | 400 | 350 | 350 | 350 | 350 | 100 | 500 | 125 | 90 | 20 | 20 | 190 | |
| 69161 | Metric | 500 | 560 | 25 | 500 | 500 | 475 | 425 | 425 | 425 | 120 | 650 | 137.5 | 90 | 25 | 25 | 310 | |
| 69171 | Metric | 630 | 660 | 40 | 630 | 630 | 575 | 550 | 525 | 525 | 100 | 750 | 137.5 | 90 | 35 | 25 | 500 |
