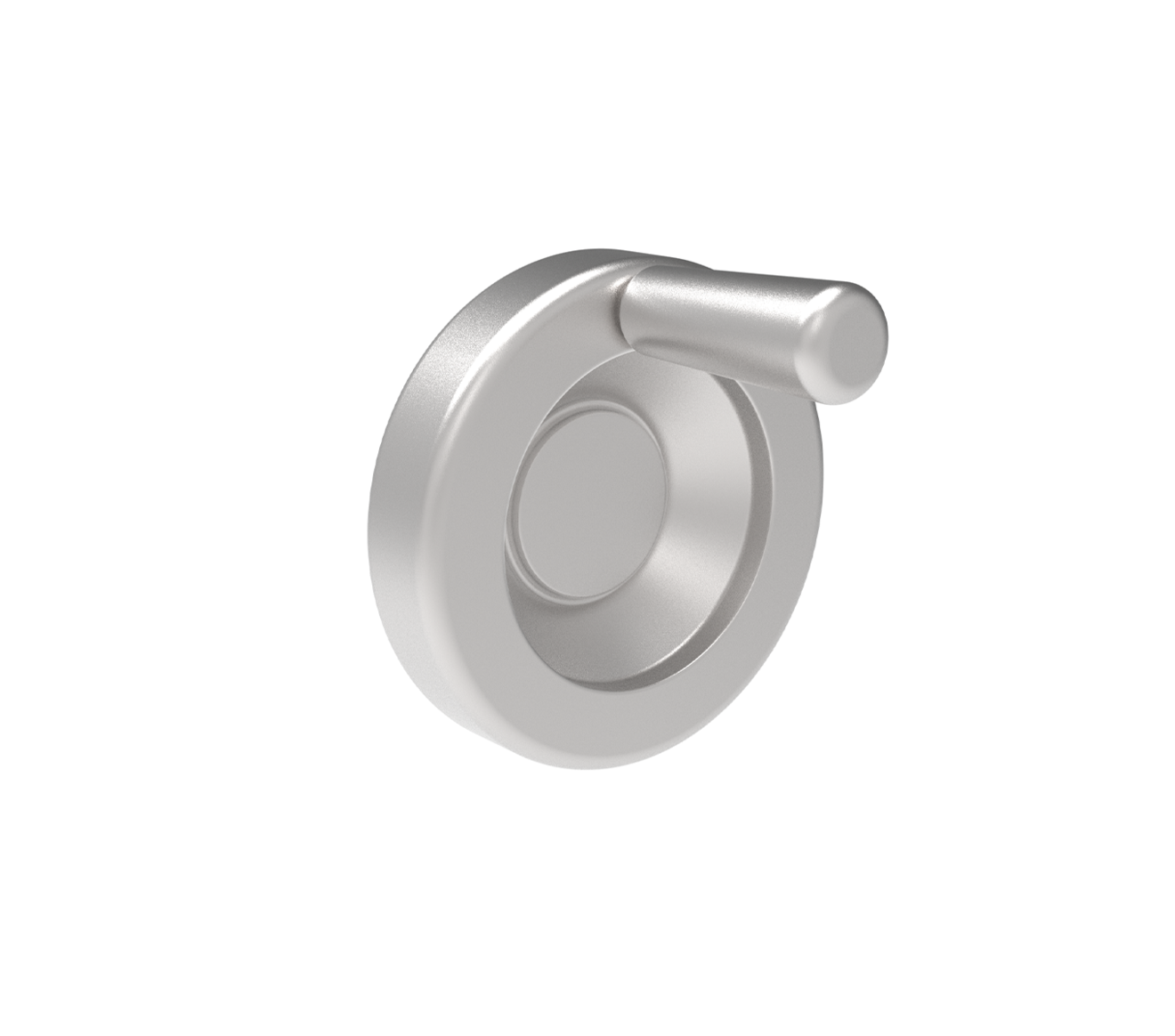

Aluminum Angular Solid Handwheels
Jergens Aluminum Angular Solid Handwheels are ideal for making adjustments and clamping via rotating mechanisms in a variety of applications in industries such as metalworking, industrial, and packaging equipment.
Features, Benefits, & Product Specifications:
-
Material: Lightweight, 319 Aluminum Alloy
-
Diameters range from 3" to 12" (75mm to 300mm)
-
Rims are machined to run concentric with a center drill
-
Available with or without a handle
-
Special bores and keyways quoted upon request
Note(s):
-
Finger grips formed behind solid wheel rim for Part No.'s 22705, 22706, 22707, 22708, 22505, 22506, 22507, & 22508.
-
All Handwheel Only Part No.'s are not tapped for a handle.
Aluminum Angular Solid Handwheels
Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | A (In) | B (In) | C (In) | D (In) | E (In) | F (In) | G (In) | Handle | Handle Only Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22502 | Inch | 3 | 1 11/16 | 5/8 | 1 5/8 | 1/4 | 1 7/32 | 1 1/4 | No | - | |
| 22503 | Inch | 4 | 1 7/8 | 5/8 | 1 5/8 | 3/16 | 1 7/16 | 1 1/2 | No | - | |
| 22504 | Inch | 5 | 2 | 11/16 | 2 1/16 | 3/16 | 1 1/4 | 1 1/2 | No | - | |
| 22505 | Inch | 6 | 2 | 3/4 | 2 9/16 | 3/16 | 1 3/8 | 1 1/2 | No | - | |
| 22506 | Inch | 8 | 2 1/2 | 7/8 | 2 15/16 | 3/16 | 1 3/4 | 2 | No | - | |
| 22507 | Inch | 10 | 3 1/4 | 1 | 3 5/16 | 3/16 | 2 7/32 | 2 5/16 | No | - | |
| 22508 | Inch | 12 | 3 1/2 | 1 | 3 5/16 | 1/4 | 2 1/4 | 2 1/2 | No | - | |
| 22702 |
|
Inch | 3 | 1 11/16 | 5/8 | 1 5/8 | 1/4 | 1 7/32 | 1 1/4 | Yes | 21902 |
| 22703 |
|
Inch | 4 | 1 7/8 | 5/8 | 1 5/8 | 3/16 | 1 7/16 | 1 1/2 | Yes | 21902 |
| 22704 |
|
Inch | 5 | 2 | 11/16 | 2 1/16 | 3/16 | 1 1/4 | 1 1/2 | Yes | 21903 |
| 22705 |
|
Inch | 6 | 2 | 3/4 | 2 9/16 | 3/16 | 1 3/8 | 1 1/2 | Yes | 21904 |
| 22706 |
|
Inch | 8 | 2 1/2 | 7/8 | 2 15/16 | 3/16 | 1 3/4 | 2 | Yes | 21905 |
| 22707 |
|
Inch | 10 | 3 1/4 | 1 | 3 5/16 | 3/16 | 2 7/32 | 2 5/16 | Yes | 21906 |
| 22708 |
|
Inch | 12 | 3 1/2 | 1 | 3 5/16 | 1/4 | 2 1/4 | 2 1/2 | Yes | 21906 |
| Part Number | CAD | Unit | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Handle | Handle Only Part Number |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22502 | Metric | 75 | 42 | 16 | 41 | 6 | 30 | 31 | No | - | |
| 22503 | Metric | 100 | 47 | 16 | 41 | 5 | 36 | 38 | No | - | |
| 22504 | Metric | 125 | 50 | 17 | 52 | 5 | 31 | 38 | No | - | |
| 22505 | Metric | 150 | 50 | 19 | 64 | 5 | 34 | 38 | No | - | |
| 22506 | Metric | 200 | 63 | 22 | 73 | 5 | 44 | 50 | No | - | |
| 22507 | Metric | 250 | 81 | 25 | 83 | 5 | 55 | 58 | No | - | |
| 22508 | Metric | 300 | 88 | 25 | 83 | 6 | 56 | 63 | No | - | |
| 22752 |
|
Metric | 75 | 42 | 16 | 41 | 6 | 30 | 31 | Yes | 21952 |
| 22754 |
|
Metric | 125 | 50 | 17 | 52 | 5 | 31 | 38 | Yes | 21953 |
| 22755 |
|
Metric | 150 | 50 | 19 | 64 | 5 | 34 | 38 | Yes | 21954 |
| 22756 |
|
Metric | 200 | 63 | 22 | 73 | 5 | 44 | 50 | Yes | 21955 |
| 22757 |
|
Metric | 250 | 81 | 25 | 83 | 5 | 55 | 58 | Yes | 21956 |
