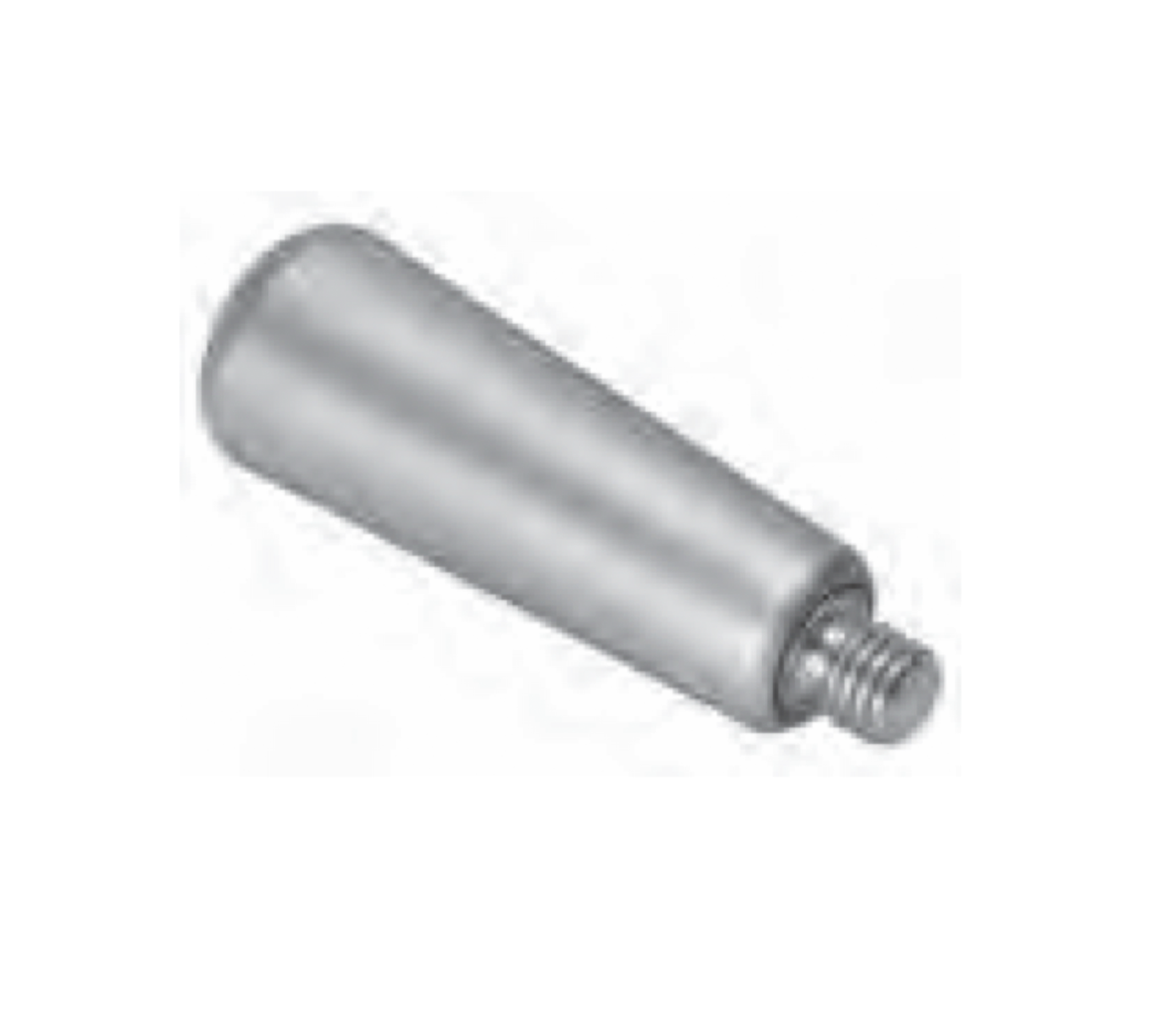

Aluminum Revolving and Solid Handles
Jergens Specialty Fasteners maintains a large inventory of several varieties of knobs, handles, handwheels, and cranks. Whether you’re looking for prototype or production quantities, we can help!
Features, Benefits, & Product Specifications:
-
Handle Material: 2024 Aluminum
-
Stem Material: Low Carbon Steel
-
Finishes:
-
Revolving Handle: Available in Clear or Black Anodize
-
Stem for Revolving Handle: Zinc Plate
-
Solid Handle: Plain
-
-
Thread: 2A-UNC for Inch, Class 6g for Metric
Aluminum Revolving and Solid Handles

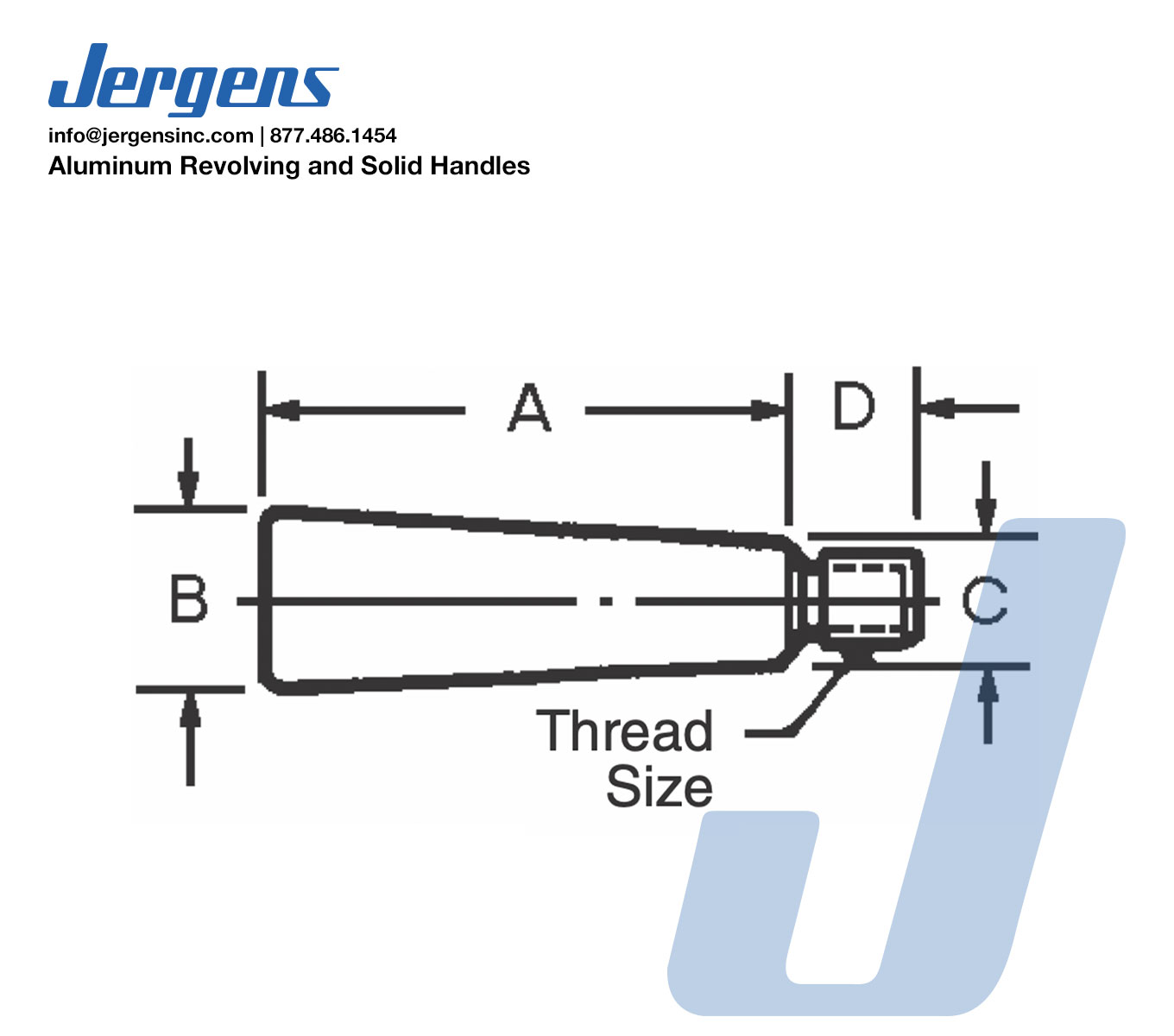

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Type | A (In) | B (In) | C (In) | Thread Size | D (In) | Finish | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 10301 |
|
Inch | Solid | 1 9/16 | 5/8 | 1/2 | 7/16 | 1/4-20 | Plain | 0.03 |
| 10302 |
|
Inch | Solid | 2 | 7/8 | 9/16 | 5/16-18 | 1/2 | Plain | 0.10 |
| 10303 |
|
Inch | Solid | 2 1/2 | 1 | 3/4 | 1/2 | 3/8-16 | Plain | 0.15 |
| 10304 |
|
Inch | Solid | 3 1/4 | 1 1/4 | 15/16 | 1/2-13 | 1/2 | Plain | 0.31 |
| 21901 |
|
Inch | Revolving | 1 1/8 | 7/16 | 3/8 | 10-24 | 3/8 | Clear | 0.02 |
| 21902 | Inch | Revolving | 1 9/16 | 5/8 | 1/2 | 7/16 | 1/4-20 | Clear | 0.03 | |
| 21903 |
|
Inch | Revolving | 2 | 7/8 | 9/16 | 5/16-18 | 1/2 | Clear | 0.08 |
| 21904 |
|
Inch | Revolving | 2 1/2 | 1 | 3/4 | 3/8-16 | 1/2 | Clear | 0.19 |
| 21905 |
|
Inch | Revolving | 2 7/8 | 1 1/8 | 15/16 | 1/2-13 | 1/2 | Clear | 0.23 |
| 21906 |
|
Inch | Revolving | 3 1/4 | 1 1/4 | 15/16 | 1/2-13 | 1/2 | Clear | 0.39 |
| 21911 |
|
Inch | Revolving | 1 1/8 | 7/16 | 3/8 | 10-24 | 3/8 | Black | 0.02 |
| 21912 |
|
Inch | Revolving | 1 9/16 | 5/8 | 1/2 | 1/4-20 | 7/16 | Black | 0.03 |
| 21913 |
|
Inch | Revolving | 2 | 7/8 | 9/16 | 5/16-18 | 1/2 | Black | 0.08 |
| 21914 |
|
Inch | Revolving | 2 1/2 | 1 | 3/4 | 3/8-16 | 1/2 | Black | 0.19 |
| 21915 |
|
Inch | Revolving | 2 7/8 | 1 1/8 | 15/16 | 1/2-13 | 1/2 | Black | 0.23 |
| 21916 |
|
Inch | Revolving | 3 1/4 | 1 1/4 | 15/16 | 1/2-13 | 1/2 | Black | 0.39 |
| Part Number | CAD | Unit | Type | A (mm) | B (mm) | C (mm) | D (mm) | Thread Size | Finish | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 10301 |
|
|||||||||
| 10302 |
|
|||||||||
| 10303 |
|
|||||||||
| 10304 |
|
|||||||||
| 21951 |
|
Metric | Revolving | 28 | 11 | 9 | 9 | M5 | Clear | 0.01 |
| 21952 |
|
Metric | Revolving | 39 | 16 | 13 | 11 | M6 | Clear | 0.02 |
| 21953 |
|
Metric | Revolving | 50 | 22 | 14 | 13 | M8 | Clear | 0.05 |
| 21954 |
|
Metric | Revolving | 63 | 25 | 19 | 13 | M10 | Clear | 0.09 |
| 21955 |
|
Metric | Revolving | 72 | 28 | 23 | 13 | M12 | Clear | 0.145 |
| 21956 |
|
Metric | Revolving | 82 | 31 | 23 | 13 | M12 | Clear | 0.18 |
| 21961 |
|
Metric | Revolving | 28 | 11 | 9 | 9 | M5 | Black | 0.01 |
| 21963 |
|
Metric | Revolving | 50 | 22 | 14 | 13 | M8 | Black | 0.05 |
| 21964 |
|
Metric | Revolving | 63 | 25 | 19 | 13 | M10 | Black | 0.09 |
| 21965 |
|
Metric | Revolving | 72 | 28 | 23 | 13 | M12 | Black | 0.15 |
