Adjustable Jack Screws
Whether you’re building your own fixtures or customizing existing workholding devices, Jergens Locating Components has all you need to ensure fast, accurate locating.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Screw/Stem Case Hardened 87-92 R15N

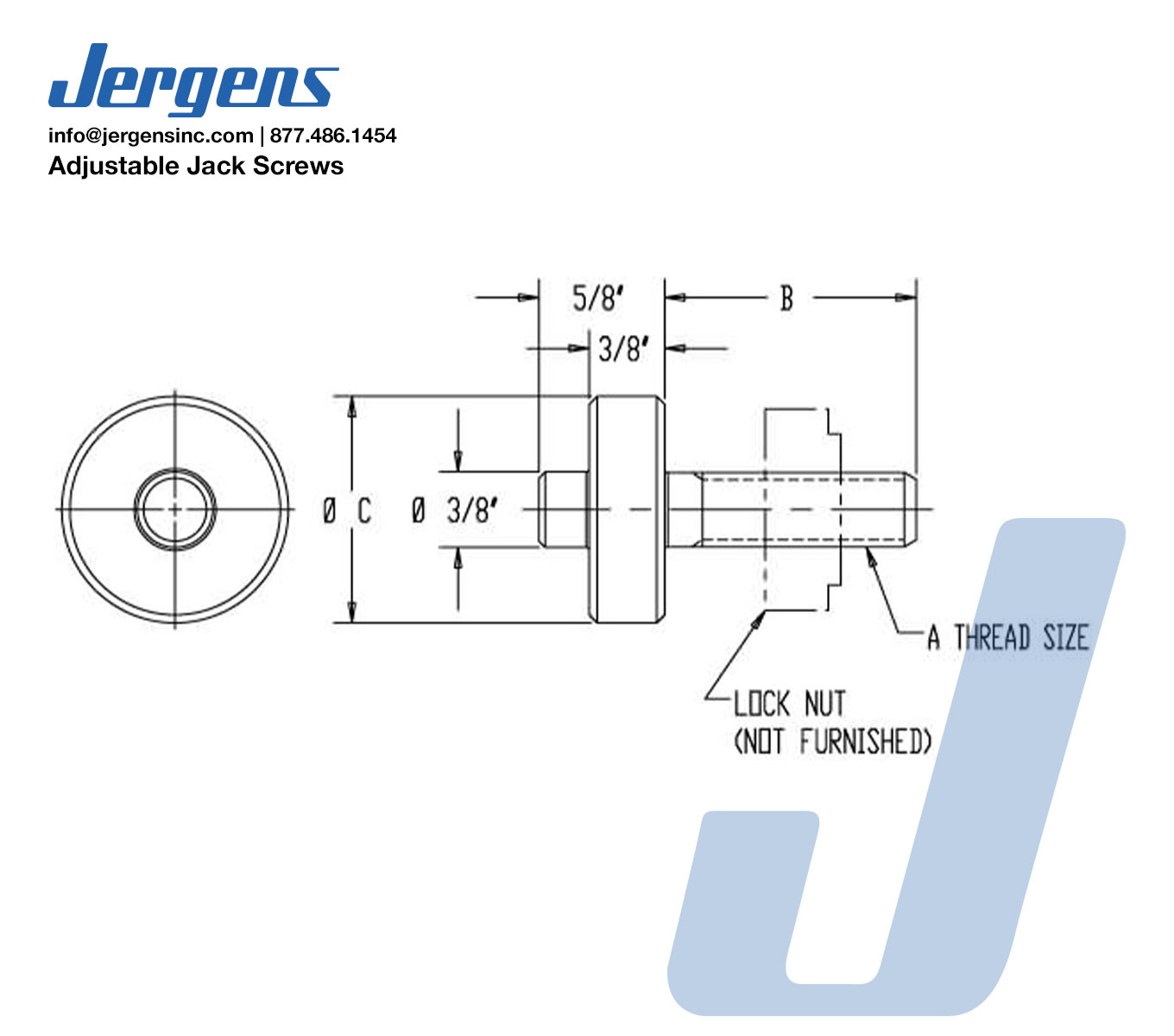

Adjustable Jack Screws_LineArt
Adjustable Jack Screws
| Part Number | CAD | Unit | A | B (In) | C (In) | Weight (lbs) | Lock Nut (not included) | |
|---|---|---|---|---|---|---|---|---|
| 25001 |
|
Inch | 3/8-16 | 1 1/4 | 1 1/8 | 0.15 | 28101 | |
| 25003 |
|
Inch | 3/8-16 | 2 | 1 1/8 | 0.18 | 28101 | |
| 25005 |
|
Inch | 1/2-13 | 1 5/8 | 1 1/8 | 0.20 | 28102 | |
| 25007 |
|
Inch | 1/2-13 | 2 1/2 | 1 1/8 | 0.25 | 28102 | |
| 25009 |
|
Inch | 5/8-11 | 2 | 1 3/8 | 0.34 | 28103 | |
| 25011 |
|
Inch | 5/8-11 | 3 | 1 3/8 | 0.43 | 28103 |
