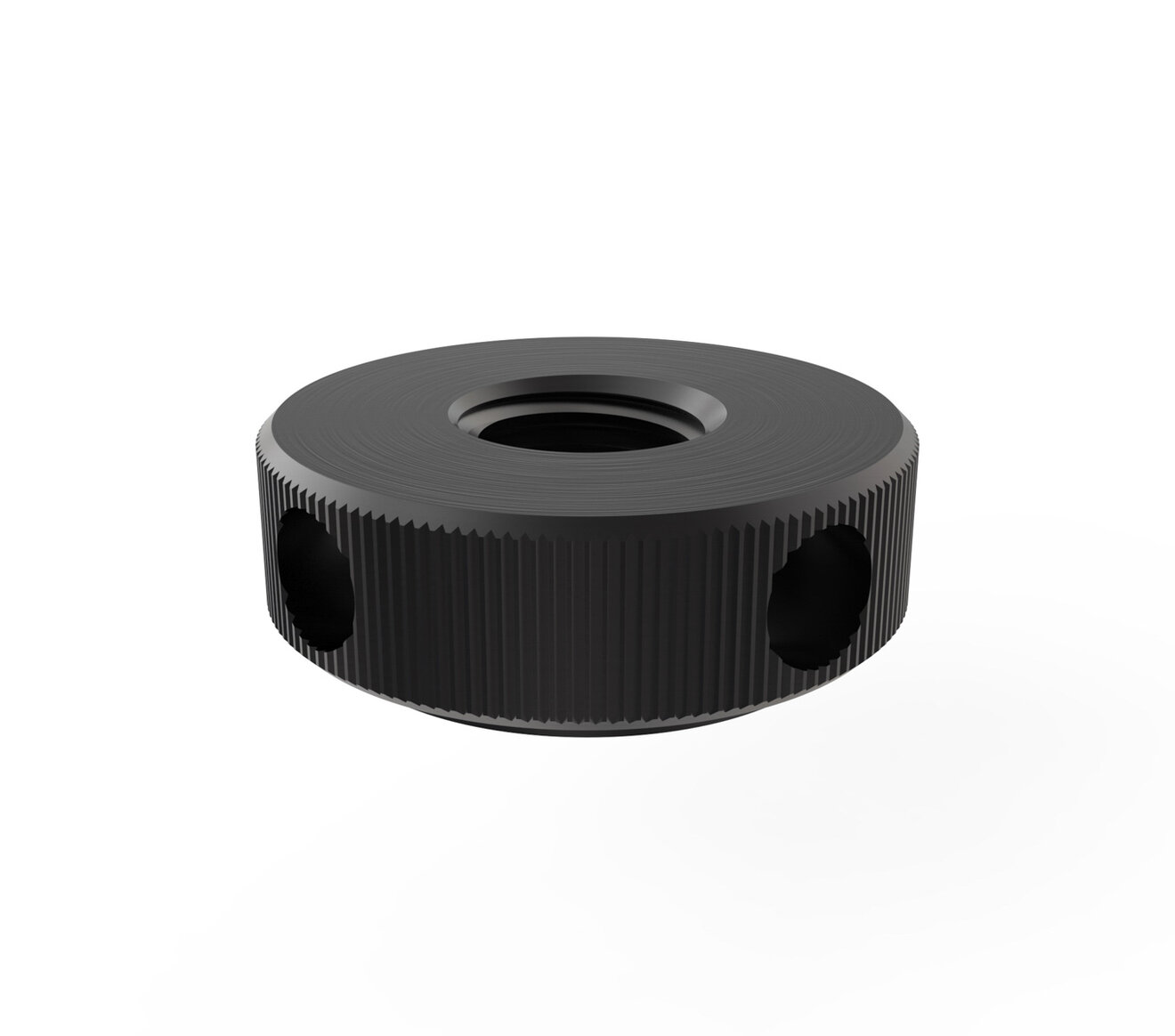

Knurled Lock Nuts
Jergens Knurled Lock Nuts are most convenient for quick thread locking on jig and fixture work. A straight-knurled radius provides a sure, non-slip finger grip in oily conditions. Faces are square with threads which assures a large locking surface.
Features, Benefits, & Product Specifications:
-
Material: Low Carbon Steel
-
Finish: Black Oxide
-
Heat Treat: Case Hardened
-
Thread: 2B-UNC
Knurled Lock Nuts
Select a part number for CAD drawings, price and stock availability.

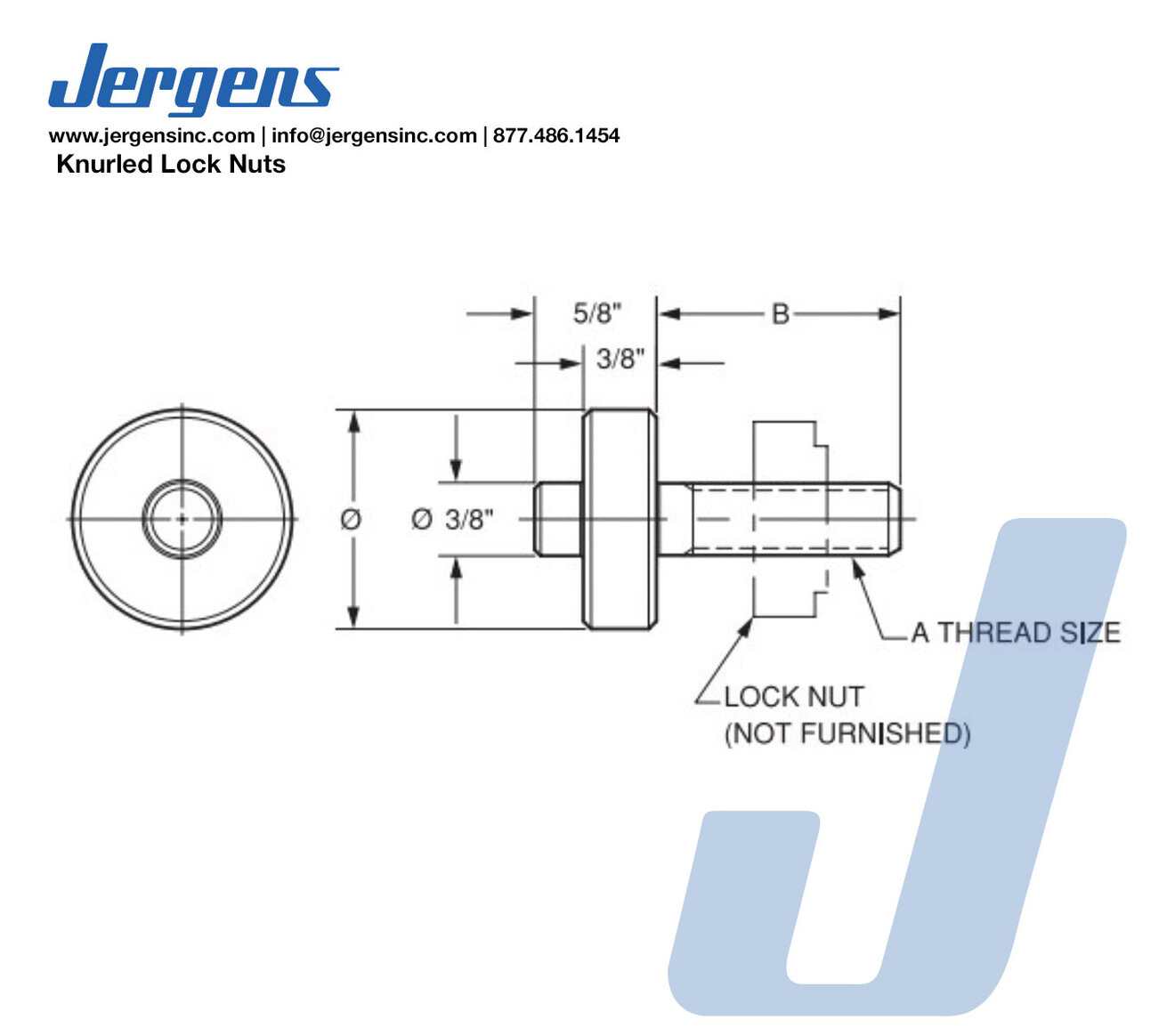

| Part Number | CAD | Unit | A | B (In) | C (In) | D (In) | E (In) | Weight 10 Pieces (lbs) |
|---|---|---|---|---|---|---|---|---|
| 28101 |
|
Inch | 3/8-16 | 1 | 3/8 | 3/4 | 0.188 | 0.62 |
| 28102 |
|
Inch | 1/2-13 | 1 1/4 | 7/16 | 1 | 0.257 | 1.10 |
| 28103 |
|
Inch | 5/8-11 | 1 3/8 | 7/16 | 1 1/8 | 0.257 | 1.10 |
| 28104 |
|
Inch | 3/4-10 | 1 3/4 | 9/16 | 1 1/2 | 0.316 | 2.50 |
| 28105 |
|
Inch | 1-8 | 2 | 9/16 | 1 3/4 | 0.316 | 3.10 |
