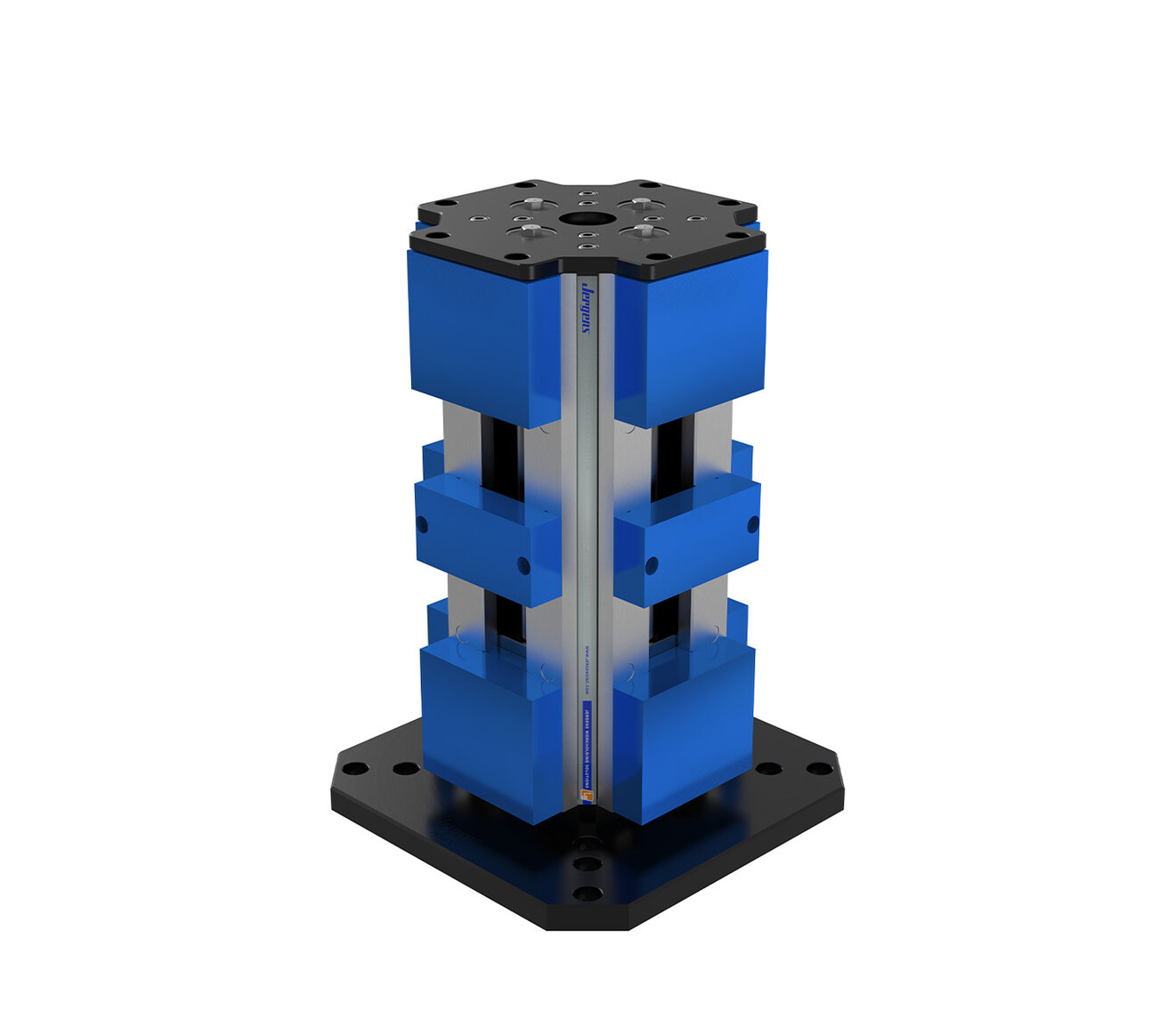

6" (150mm) 4-Sided Production Vise Columns

Jergens 4-Sided Production Vise Columns have (8) stations for holding parts. The Universal Base mounts directly to most HMC tables using the provided mounting holes on 80mm or 100mm centers. Further reduce set-up times by adding the Jergens Ball Lock® Mounting System to your HMC. Exchange your vise columns and any other fixture in less than a minute. Location of all fixtures will repeat within ±0.0005 (±0.013mm) or better.

Features, Benefits, & Product Specifications:

Fastest quick-change jaw system
Multiple mounting systems available
Full jaw travel
Hardened stainless steel rails support jaws & resist wear
Fully sealed lead screw assembly

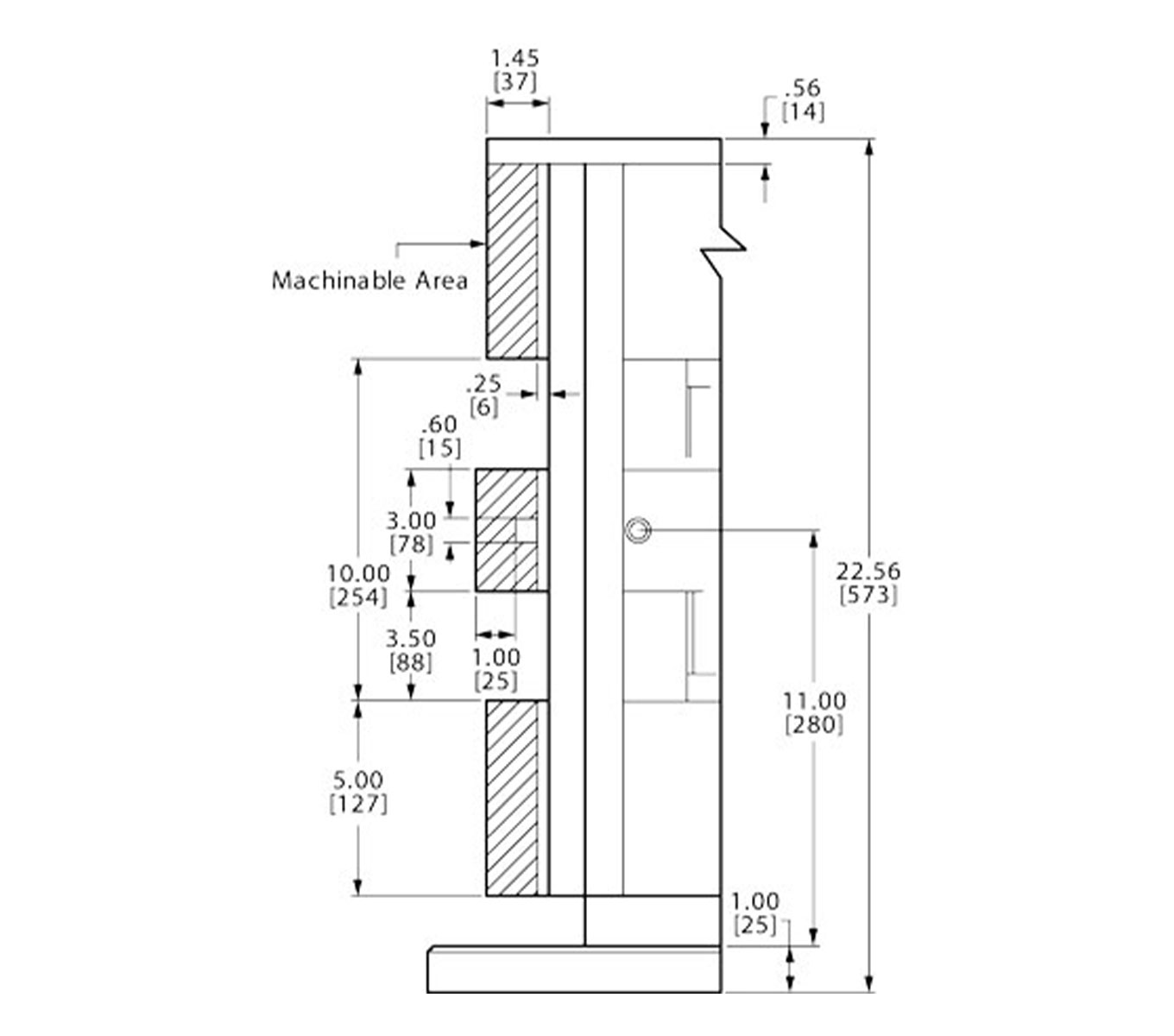

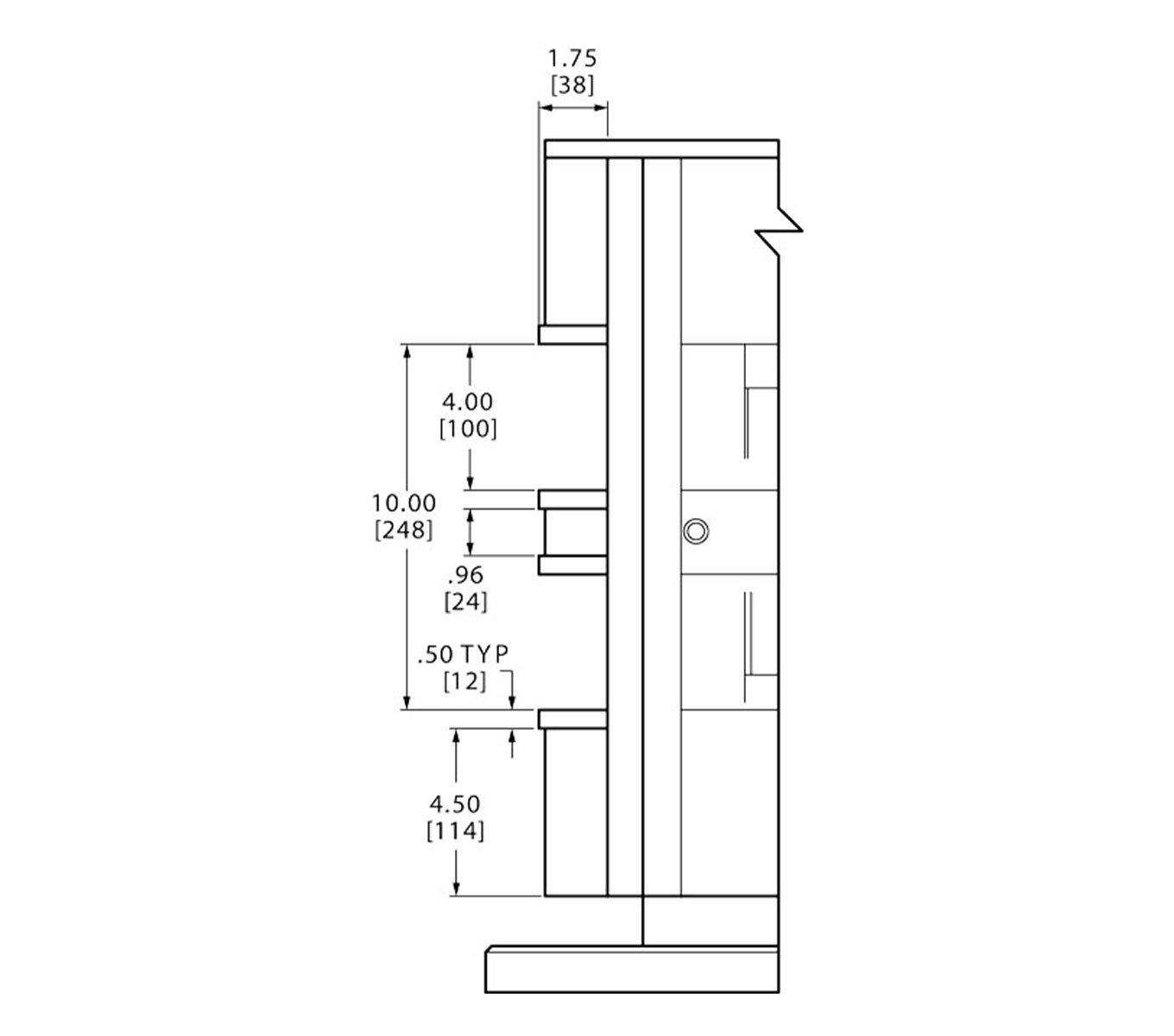

Supplied with machinable soft jaws (available with hard jaws)
Custom mounting patterns & base sizes are available upon request

Note(s):

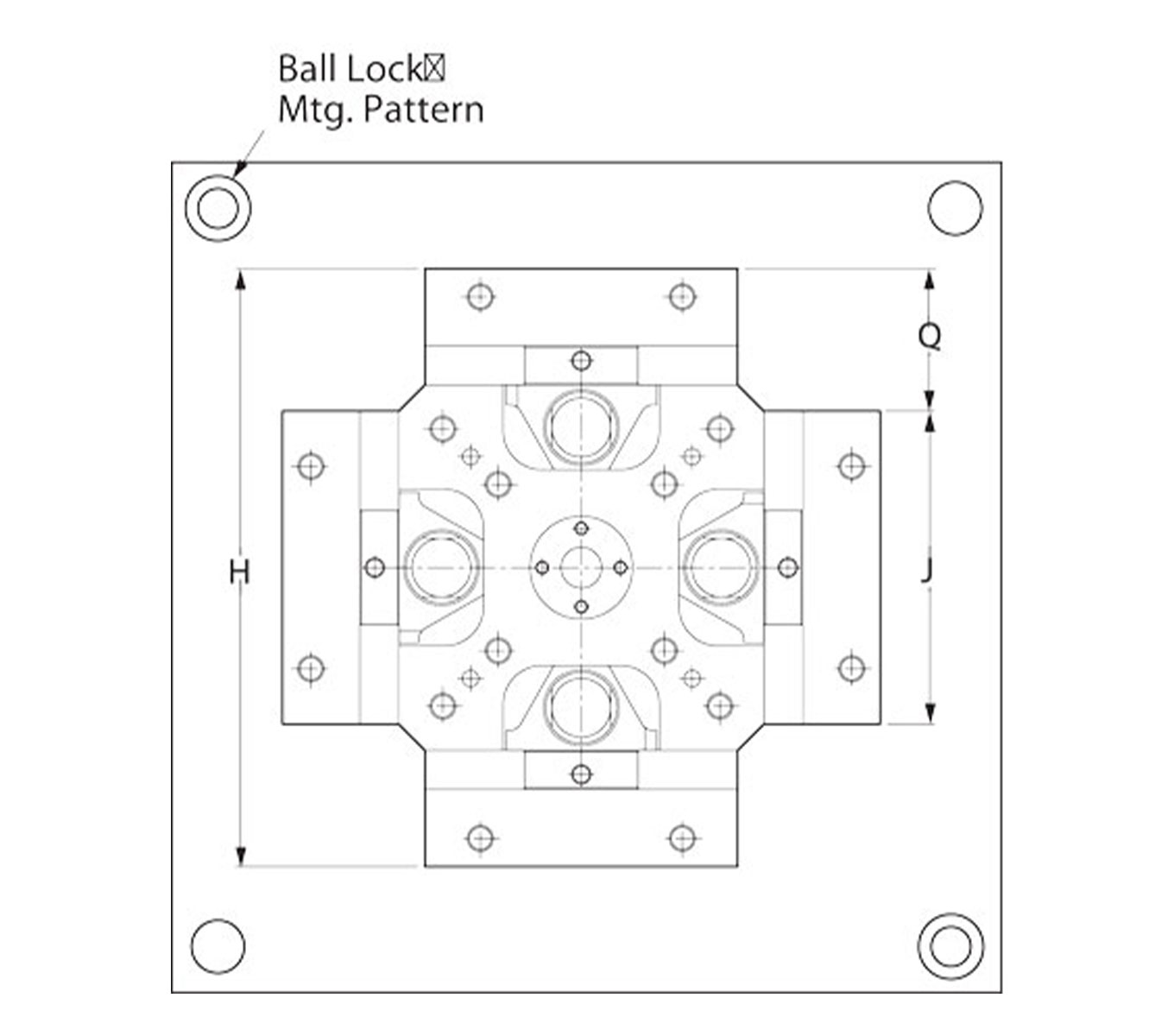

The bases on Universal Columns are provided with (2) sets of mounting holes to fit grids or T-Slots on 80mm and 100mm centers.

Documents

6" (150mm) 4-Sided Production Vise Columns

Inch Metric

Select a part number for CAD drawings, price and stock availability.

Part Number	CAD	Unit	Mounting Base	H (In)	J (In)	Q (In)	Base Width (In)	Base Length (In)	Ball-Lock Mtg Pattern	Mounting Pattern 1	Mounting Pattern 2	Mounting Pattern 3	Weight (lbs)	Ball-Lock Shank Part Number	Shank Size
49404		Inch	Ball Lock	11.50	6.00	2.75	19.68	19.68	17 x 17	n/a	n/a	n/a	258	49612	25mm x 1"
49412		Inch	Ball Lock®	11.50	6.00	2.75	15.75	15.75	14 x 14	n/a	n/a	n/a	244	49602	20mm x 1"
49476		Inch	Universal	11.50	6.00	2.75	15.75	15.75	n/a	80mm	100mm	125mm	235	-	-

Part Number	CAD	Unit	Mounting Base	H (mm)	J (mm)	Q (mm)	Base Width (mm)	Base Length (mm)	Ball-Lock Mtg Pattern	Mounting Pattern 1	Mounting Pattern 2	Mounting Pattern 3	Weight (kgs)	Ball-Lock Shank Part Number	Shank Size
49476		Metric	Universal	290	150	70	400	400	n/a	80mm	100mm	125mm	107	-	-
69404		Metric	Ball Lock®	290	150	70	500	500	425 x 425	n/a	n/a	n/a	117	49662	20mm x 25mm
69412		Metric	Ball Lock®	290	150	70	400	400	350 x 350	n/a	n/a	n/a	111	49652	20mm x 25mm
