300 Series T-Handle Quick Release Pin

These commercial-grade quick release pins deliver fast and repeatable connections in many applications. Made from corrosion-resistant 300 series stainless steel, these pins are built for durability and ease of use. A simple push-button and ball-lock mechanism allows for positive engagement and release.



Features, Benefits, & Product Specifications:

  • Material:
    • Handle: Aluminum Alloy
    • Button: Aluminum Alloy
    • Pin Body: 300 Series Stainless Steel

Note:


If requesting large quantities or high volume please contact customer service via [email protected] or (866) 594-5565. For a self-service alternative, try our Quick Quote form!

Documents

300 Series T-Handle Quick Release Pin

Select a part number for CAD drawings, price and stock availability.

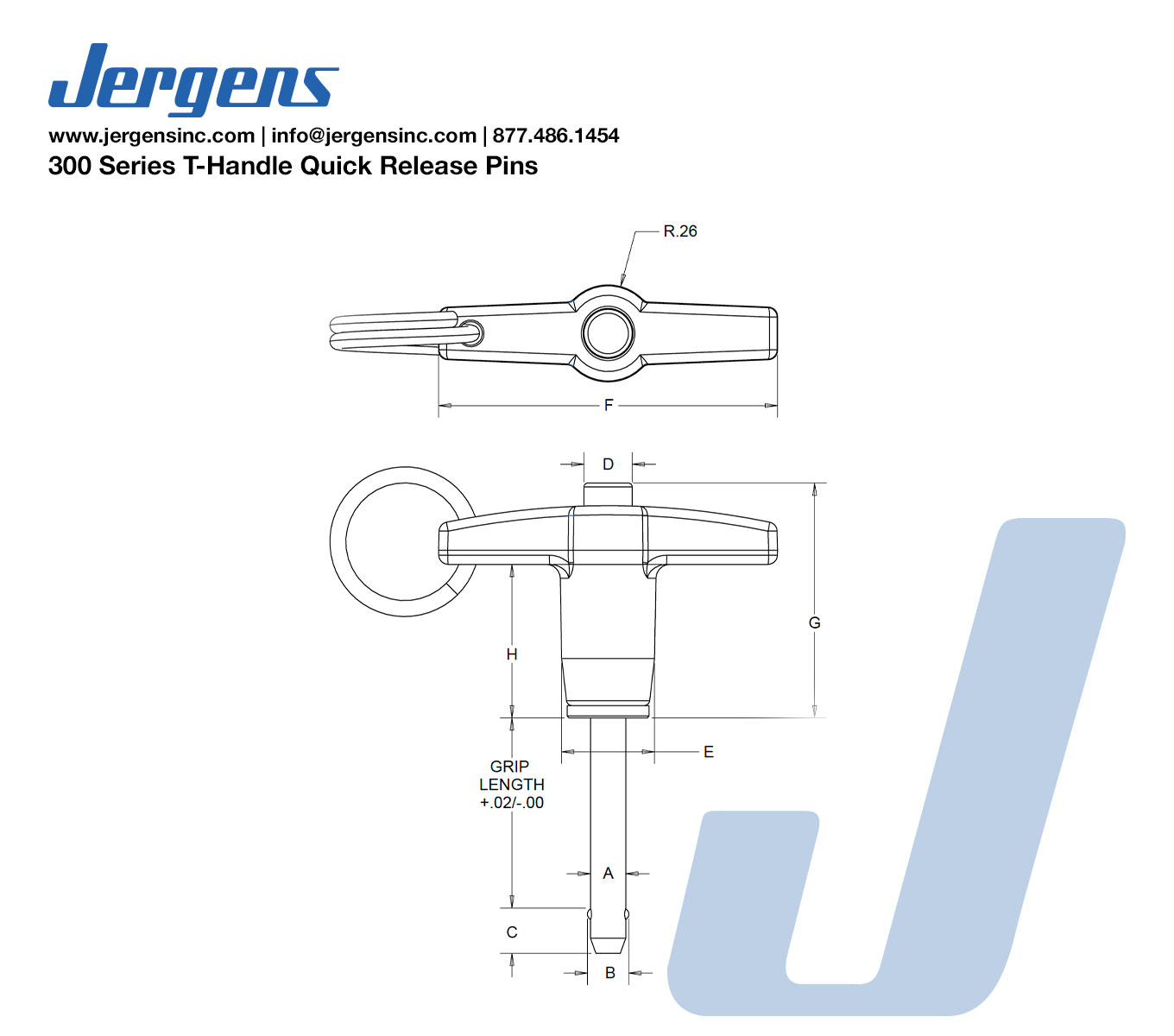

Part Number CAD Unit Pin Diameter (in) Grip Length (In) A MAX (In) A MIN (In) B +/-0.005 C +0.00/-0.04 (In) D MAX (in) D MIN (in) E MAX (in) E MIN (in) F MAX (in) F MIN (in) G MAX (in) H MIN (in)
801000-300 icon_cad Inch 3/16 0.5 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801001-300 icon_cad Inch 3/16 0.75 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801002-300 icon_cad Inch 3/16 1 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801003-300 icon_cad Inch 3/16 1.25 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801004-300 icon_cad Inch 3/16 1.5 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801005-300 icon_cad Inch 3/16 1.75 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801006-300 icon_cad Inch 3/16 2 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801007-300 Inch 3/16 2.25 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801008-300 icon_cad Inch 3/16 2.5 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801009-300 icon_cad Inch 3/16 3 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801010-300 Inch 3/16 3.5 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801011-300 icon_cad Inch 3/16 4 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801012-300 Inch 3/16 4.5 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801013-300 icon_cad Inch 3/16 5 0.1885 0.1875 0.220 0.260 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801016-300 icon_cad Inch 1/4 0.5 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801017-300 icon_cad Inch 1/4 0.75 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801018-300 icon_cad Inch 1/4 1 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801019-300 icon_cad Inch 1/4 1.25 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801020-300 icon_cad Inch 1/4 1.5 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801021-300 icon_cad Inch 1/4 1.75 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801022-300 icon_cad Inch 1/4 2 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801023-300 Inch 1/4 2.25 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801024-300 icon_cad Inch 1/4 2.5 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801025-300 icon_cad Inch 1/4 3 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801026-300 Inch 1/4 3.5 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801027-300 icon_cad Inch 1/4 4 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801028-300 Inch 1/4 4.5 0.2485 0.2470 0.289 0.290 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801029-300 icon_cad Inch 1/4 5 0.2485 0.2470 0.289 0.289 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801032-300 icon_cad Inch 5/16 0.5 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801033-300 icon_cad Inch 5/16 0.75 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801034-300 icon_cad Inch 5/16 1 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801035-300 icon_cad Inch 5/16 1.25 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801036-300 icon_cad Inch 5/16 1.5 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801037-300 icon_cad Inch 5/16 1.75 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801038-300 icon_cad Inch 5/16 2 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801039-300 Inch 5/16 2.25 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801040-300 icon_cad Inch 5/16 2.5 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801041-300 icon_cad Inch 5/16 3 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801042-300 Inch 5/16 3.5 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801043-300 icon_cad Inch 5/16 4 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801044-300 Inch 5/16 4.5 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801045-300 icon_cad Inch 5/16 5 0.3110 0.3095 0.375 0.330 0.310 0.250 0.500 0.380 1.815 1.750 1.270 .700
801048-300 icon_cad Inch 3/8 0.5 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801049-300 icon_cad Inch 3/8 0.75 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801050-300 icon_cad Inch 3/8 1 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801051-300 icon_cad Inch 3/8 1.25 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801052-300 icon_cad Inch 3/8 1.5 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801053-300 icon_cad Inch 3/8 1.75 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801054-300 icon_cad Inch 3/8 2 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801055-300 Inch 3/8 2.25 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801056-300 icon_cad Inch 3/8 2.5 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801057-300 icon_cad Inch 3/8 3 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801058-300 Inch 3/8 3.5 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801059-300 icon_cad Inch 3/8 4 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801060-300 Inch 3/8 4.5 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801061-300 icon_cad Inch 3/8 5 0.3735 0.3720 0.440 0.365 0.390 0.300 0.625 0.510 2.065 1.935 1.450 0.850
801080-300 icon_cad Inch 1/2 0.5 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801081-300 icon_cad Inch 1/2 0.75 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801082-300 icon_cad Inch 1/2 1 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801083-300 icon_cad Inch 1/2 1.25 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801084-300 icon_cad Inch 1/2 1.5 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801085-300 icon_cad Inch 1/2 1.75 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801086-300 icon_cad Inch 1/2 2 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801087-300 Inch 1/2 2.25 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801088-300 icon_cad Inch 1/2 2.5 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801089-300 icon_cad Inch 1/2 3 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801090-300 Inch 1/2 3.5 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801091-300 icon_cad Inch 1/2 4 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801092-300 Inch 1/2 4.5 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
801093-300 icon_cad Inch 1/2 5 0.4985 0.4970 0.594 0.460 0.565 0.435 .800 0.630 2.345 2.220 1.600 0.885
