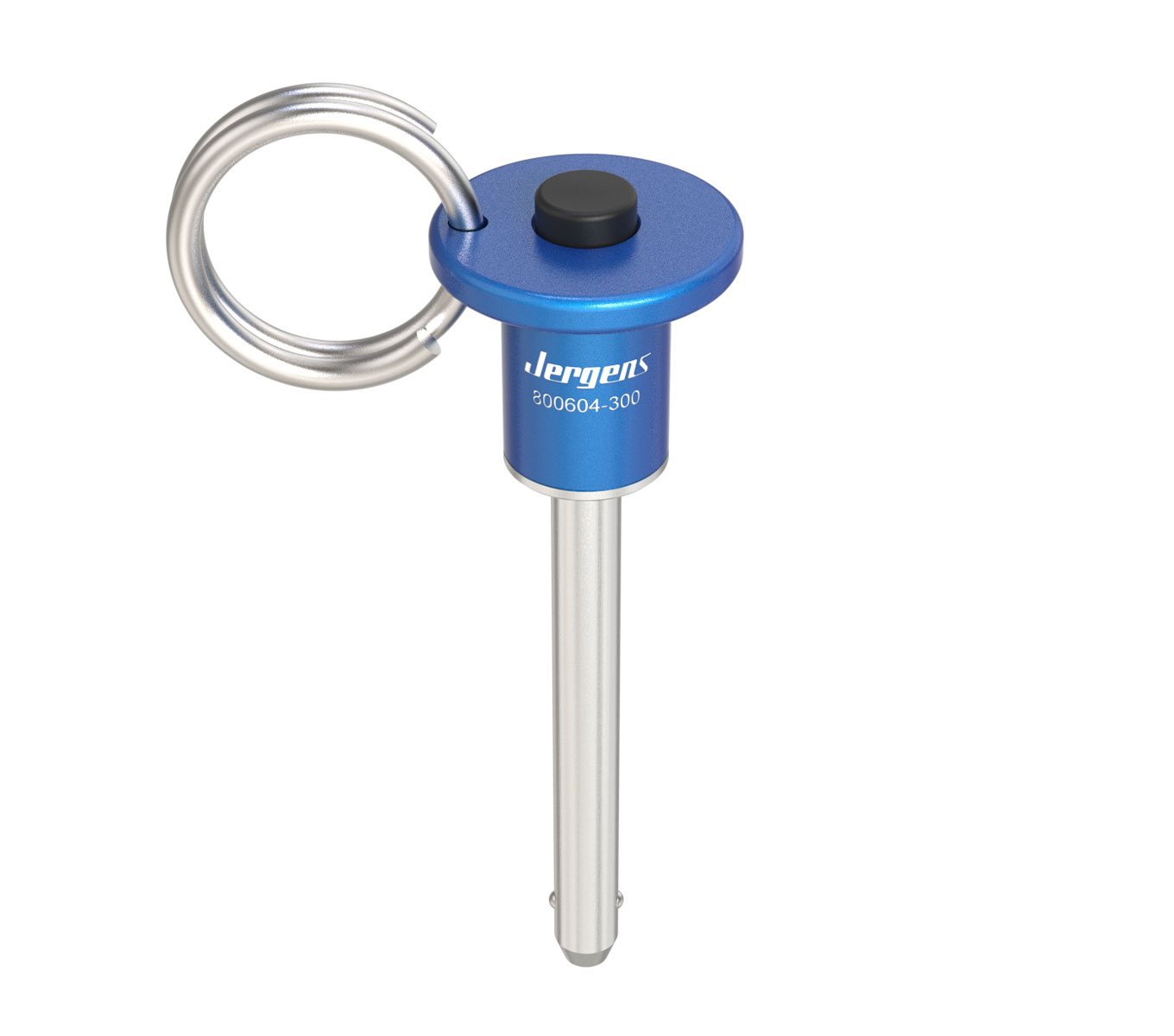

300 Series Button Handle Quick Release Pin

These commercial-grade quick release pins deliver fast and repeatable connections in many applications. Made from corrosion-resistant 300 series stainless steel, these pins are built for durability and ease of use. A simple push-button and ball-lock mechanism allows for positive engagement and release.



Features, Benefits, & Product Specifications:

  • Material:
    • Handle: Aluminum Alloy
    • Button: Aluminum Alloy
    • Pin Body: 300 Series Stainless Steel

Note:


If requesting large quantities or high volume please contact customer service via [email protected] or (866) 594-5565. For a self-service alternative, try our Quick Quote form!

Documents

300 Series Button Handle Quick Release Pin

Select a part number for CAD drawings, price and stock availability.

Part Number CAD Unit Pin Diameter (in) Grip Length (In) A MIN (In) A MAX (In) C +0.00/-0.04 (In) D MIN (in) D MAX (in) E MIN (in) E MAX (in) F MIN (in) F MAX (in) G MAX (in) G MIN (in)
800600-300 icon_cad Inch 3/16 0.5 0.1875 0.1885 0.220 0.260 0.250 0.310 0.310 .500 0.720 0.800 .890 0.480
800601-300 icon_cad Inch 3/16 0.75 0.1875 0.1885 0.220 0.260 0.250 0.310 0.310 .500 0.720 0.800 .890 0.480
800602-300 icon_cad Inch 3/16 1 0.1875 0.1885 0.220 0.260 0.250 0.310 0.310 .500 0.720 0.800 .890 0.480
800603-300 icon_cad Inch 3/16 1.25 0.1875 0.1885 0.220 0.260 0.250 0.310 0.310 .500 0.720 0.800 .890 0.480
800604-300 icon_cad Inch 3/16 1.5 0.1875 0.1885 0.220 0.260 0.250 0.310 0.310 .500 0.720 0.800 .890 0.480
800606-300 icon_cad Inch 3/16 2 0.1875 0.1885 0.220 0.260 0.250 0.310 0.310 .500 0.720 0.800 .890 0.480
800608-300 icon_cad Inch 3/16 2.5 0.1875 0.1885 0.220 0.260 0.250 0.310 0.310 .500 0.720 0.800 .890 0.480
800609-300 icon_cad Inch 3/16 3 0.1875 0.1885 0.220 0.260 0.250 0.310 0.310 .500 0.720 0.800 .890 0.480
800610-300 Inch 3/16 3.5 0.1875 0.1885 0.220 0.260 0.250 0.310 0.310 .500 0.720 0.800 .890 0.480
800611-300 icon_cad Inch 3/16 4 0.1875 0.1885 0.220 0.260 0.250 0.310 0.310 .500 0.720 0.800 .890 0.480
800616-300 icon_cad Inch 1/4 0.5 0.2470 0.2485 0.289 0.290 0.250 0.310 0.310 .500 0.720 0.800 0.890 0.480
800617-300 icon_cad Inch 1/4 0.75 0.2470 0.2485 0.289 0.290 0.250 0.310 0.310 .500 0.720 0.800 0.890 0.480
800618-300 icon_cad Inch 1/4 1 0.2470 0.2485 0.289 0.290 0.250 0.310 0.310 .500 0.720 0.800 0.890 0.480
800619-300 icon_cad Inch 1/4 1.25 0.2470 0.2485 0.289 0.290 0.250 0.310 0.310 .500 0.720 0.800 0.890 0.480
800620-300 icon_cad Inch 1/4 1.5 0.2470 0.2485 0.289 0.290 0.250 0.310 0.310 .500 0.720 0.800 0.890 0.480
800622-300 icon_cad Inch 1/4 2 0.2470 0.2485 0.289 0.290 0.250 0.310 0.310 .500 0.720 0.800 0.890 0.480
800624-300 icon_cad Inch 1/4 2.5 0.2470 0.2485 0.289 0.290 0.250 0.310 0.310 .500 0.720 0.800 0.890 0.480
800625-300 icon_cad Inch 1/4 3 0.2470 0.2485 0.289 0.290 0.250 0.310 0.310 .500 0.720 0.800 0.890 0.480
800626-300 Inch 1/4 3.5 0.2470 0.2485 0.289 0.290 0.250 0.310 0.310 .500 0.720 0.800 0.890 0.480
800627-300 icon_cad Inch 1/4 4 0.2470 0.2485 0.289 0.290 0.250 0.310 0.310 .500 0.720 0.800 0.890 0.480
800632-300 icon_cad Inch 5/16 0.5 0.3095 0.3110 0.375 0.330 0.250 0.310 0.410 .500 .720 1.135 .950 0.480
800633-300 icon_cad Inch 5/16 0.75 0.3095 0.3110 0.375 0.330 0.250 0.310 0.410 .500 .720 1.135 .950 0.480
800634-300 icon_cad Inch 5/16 1 0.3095 0.3110 0.375 0.330 0.250 0.310 0.410 .500 .720 1.135 .950 0.480
800635-300 icon_cad Inch 5/16 1.25 0.3095 0.3110 0.375 0.330 0.250 0.310 0.410 .500 .720 1.135 .950 0.480
800636-300 icon_cad Inch 5/16 1.5 0.3095 0.3110 0.375 0.330 0.250 0.310 0.410 .500 .720 1.135 .950 0.480
800637-300 icon_cad Inch 5/16 1.75 0.3095 0.3110 0.375 0.330 0.250 0.310 0.410 .500 .720 1.135 .950 0.480
800638-300 icon_cad Inch 5/16 2 0.3095 0.3110 0.375 0.330 0.250 0.310 0.410 .500 .720 1.135 .950 0.480
800640-300 icon_cad Inch 5/16 2.5 0.3095 0.3110 0.375 0.330 0.250 0.310 0.410 .500 .720 1.135 .950 0.480
800641-300 icon_cad Inch 5/16 3 0.3095 0.3110 0.375 0.330 0.250 0.310 0.410 .500 .720 1.135 .950 0.480
800642-300 Inch 5/16 3.5 0.3095 0.3110 0.375 0.330 0.250 0.310 0.410 .500 .720 1.135 .950 0.480
800643-300 icon_cad Inch 5/16 4 0.3095 0.3110 0.375 0.330 0.250 0.310 0.410 .500 .720 1.135 .950 0.480
800648-300 icon_cad Inch 3/8 0.5 0.3720 0.3735 0.440 0.365 0.300 0.390 0.450 .625 0.875 1.135 1.140 0.620
800649-300 icon_cad Inch 3/8 0.75 0.3720 0.3735 0.440 0.365 0.300 0.390 0.450 .625 0.875 1.135 1.140 0.620
800650-300 icon_cad Inch 3/8 1 0.3720 0.3735 0.440 0.365 0.300 0.390 0.450 .625 0.875 1.135 1.140 0.620
800651-300 icon_cad Inch 3/8 1.25 0.3720 0.3735 0.440 0.365 0.300 0.390 0.450 .625 0.875 1.135 1.140 0.620
800652-300 icon_cad Inch 3/8 1.5 0.3720 0.3735 0.440 0.365 0.300 0.390 0.450 .625 0.875 1.135 1.140 0.620
800653-300 icon_cad Inch 3/8 1.75 0.3720 0.3735 0.440 0.365 0.300 0.390 0.450 .625 0.875 1.135 1.140 0.620
800654-300 icon_cad Inch 3/8 2 0.3720 0.3735 0.440 0.365 0.300 0.390 0.450 .625 0.875 1.135 1.140 0.620
800656-300 icon_cad Inch 3/8 2.5 0.3720 0.3735 0.440 0.365 0.300 0.390 0.450 .625 0.875 1.135 1.140 0.620
800657-300 icon_cad Inch 3/8 3 0.3720 0.3735 0.440 0.365 0.300 0.390 0.450 .625 0.875 1.135 1.140 0.620
800658-300 Inch 3/8 3.5 0.3720 0.3735 0.440 0.365 0.300 0.390 0.450 .625 0.875 1.135 1.140 0.620
800659-300 icon_cad Inch 3/8 4 0.3720 0.3735 0.440 0.365 0.300 0.390 0.450 .625 0.875 1.135 1.140 0.620
800680-300 icon_cad Inch 1/2 0.5 0.4970 0.4985 0.594 0.460 0.435 0.565 0.600 0.725 1.300 1.400 1.260 0.720
800681-300 icon_cad Inch 1/2 0.75 0.4970 0.4985 0.594 0.460 0.435 0.565 0.600 0.725 1.300 1.400 1.260 0.720
800682-300 icon_cad Inch 1/2 1 0.4970 0.4985 0.594 0.460 0.435 0.565 0.600 0.725 1.300 1.400 1.260 0.720
800683-300 icon_cad Inch 1/2 1.25 0.4970 0.4985 0.594 0.460 0.435 0.565 0.600 0.725 1.300 1.400 1.260 0.720
800684-300 icon_cad Inch 1/2 1.5 0.4970 0.4985 0.594 0.460 0.435 0.565 0.600 0.725 1.300 1.400 1.260 0.720
800686-300 icon_cad Inch 1/2 2 0.4970 0.4985 0.594 0.460 0.435 0.565 0.600 0.725 1.300 1.400 1.260 0.720
800688-300 icon_cad Inch 1/2 2.5 0.4970 0.4985 0.594 0.460 0.435 0.565 0.600 0.725 1.300 1.400 1.260 0.720
800689-300 icon_cad Inch 1/2 3 0.4970 0.4985 0.594 0.460 0.435 0.565 0.600 0.725 1.300 1.400 1.260 0.720
800690-300 Inch 1/2 3.5 0.4970 0.4985 0.594 0.460 0.435 0.565 0.600 0.725 1.300 1.400 1.260 0.720
800691-300 icon_cad Inch 1/2 4 0.4970 0.4985 0.594 0.460 0.435 0.565 0.600 0.725 1.300 1.400 1.260 0.720
