ZPS T-Slot Pull Studs
T-Slot Pull Studs enable the Jergens Zero Point Mount to be positioned and clamped directly to a machine table by means of t-slots. This style of pull stud is most commonly used with double sided mechanical clamping modules, but they are also compatible with any K10 or K20 clamping module.
Product Specifications:
- Assembly consists of (1) pull stud, (1) t-nut, and (1) class 10.9 flat head cap screw

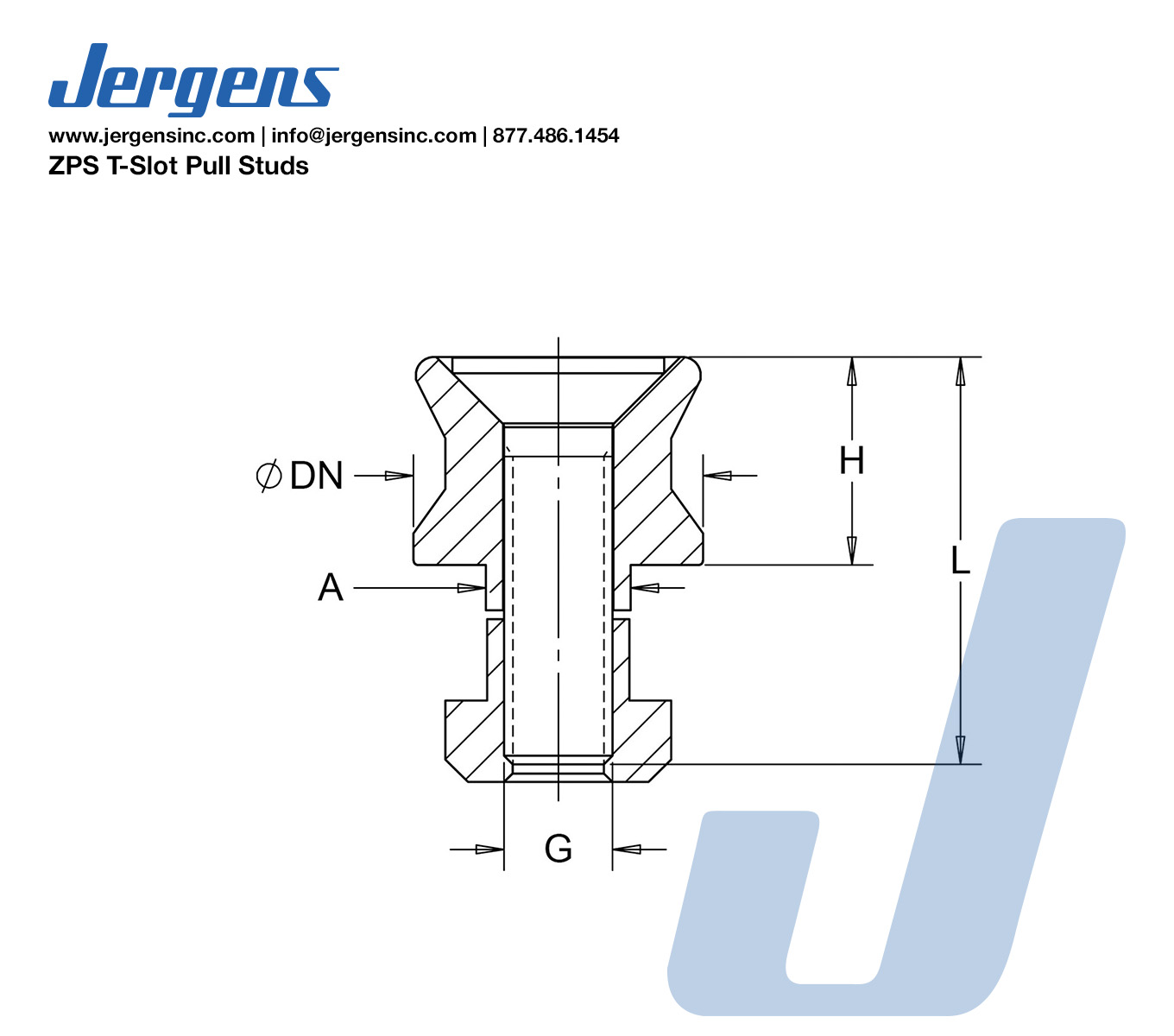

ZPS T-Slot Pull Studs
| Part Number | CAD | Unit | Size | A (mm) | DN (mm) | G | H (mm) | L (mm) | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 550438 |
|
Metric | K10 | 10 | 22 | M8 x 1.25 | 16 | 30 | 48 | |
| 550439 |
|
Metric | K10 | 12 | 22 | M8 x 1.25 | 16 | 35 | 51 | |
| 550440 |
|
Metric | K10 | 14 | 22 | M8 x 1.25 | 16 | 35 | 54 | |
| 550441 |
|
Metric | K20 | 14 | 32 | M12 x 1.75 | 23 | 45 | 143 | |
| 550442 |
|
Metric | K20 | 16 | 32 | M12 x 1.75 | 23 | 45 | 147 | |
| 550443 |
|
Metric | K20 | 18 | 32 | M12 x 1.75 | 23 | 50 | 157 |
