ZPS Machinable Blanks

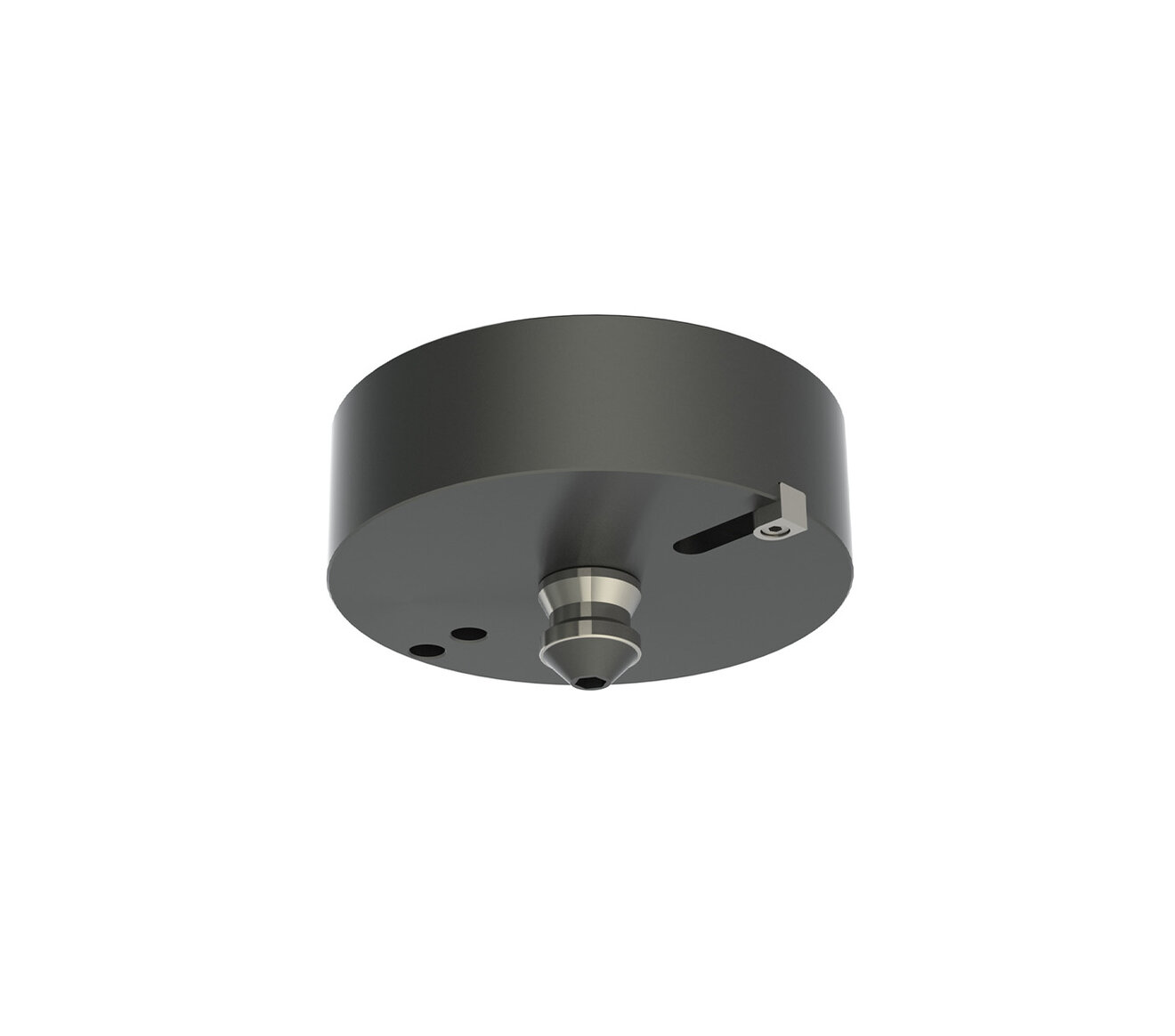

Jergens ZPS Machinable Blanks are designed to be modified for accepting various parts and clamping systems. They are compatible with manual clamping modules and clamping modules with indexing feature.
Features, Benefits, & Product Specifications:
- Materials: Avaiable in Low Carbon Steel and Aluminum
- Includes (1) Zero Point Stud & (1) Indexing Key installed
ZPS Machinable Blanks

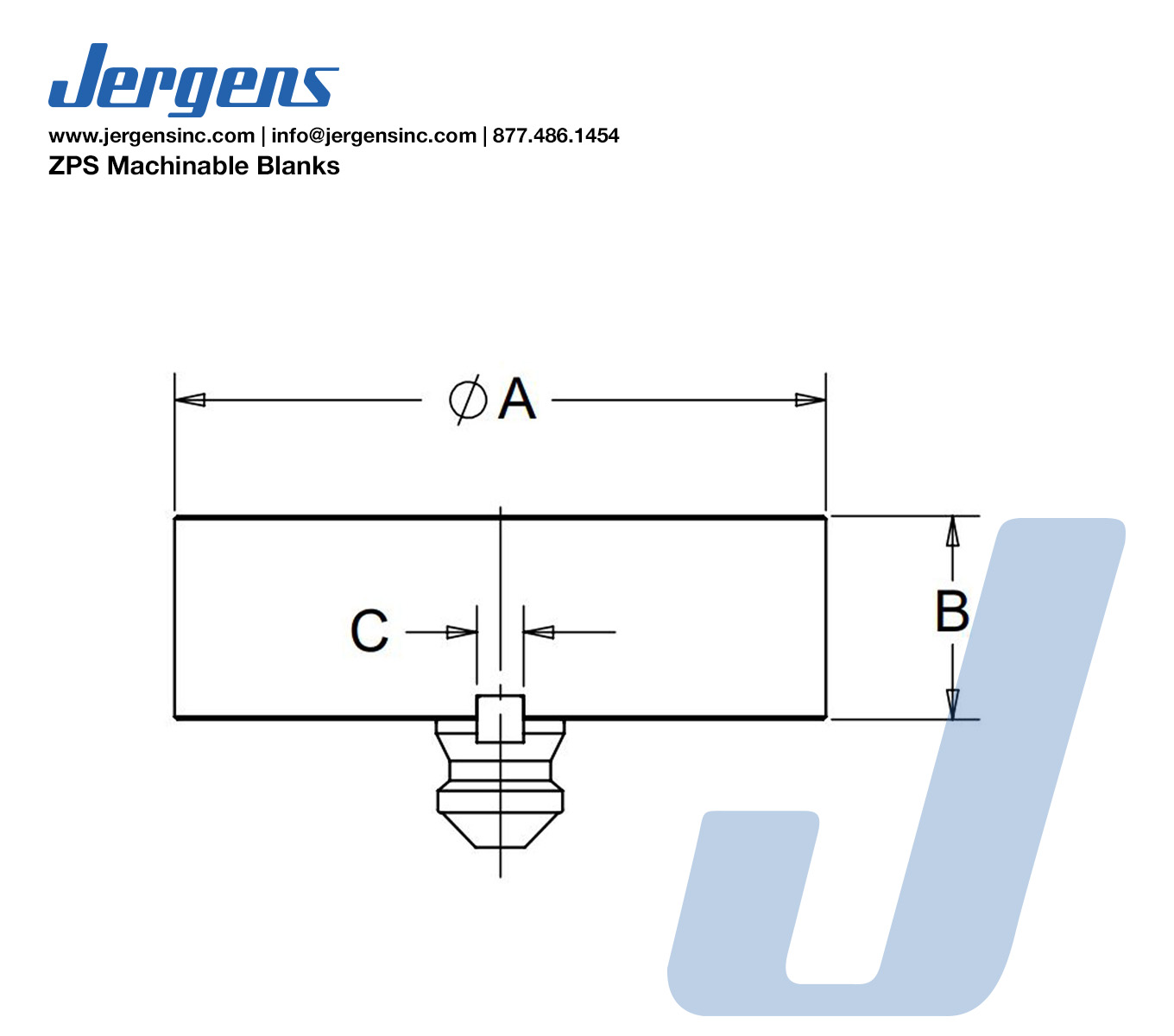

Select a part number for CAD drawings, price and stock availability.
| Part Number | CAD | Unit | Material | Pull Stud Size | A (mm) | B (mm) | C (mm) | Weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 300000 |
|
Metric | Aluminum | K10 | 112 | 35 | 8h6 | 0.93 |
| 300001 |
|
Metric | Steel | K10 | 112 | 35 | 8h6 | 2.7 |
| 300002 |
|
Metric | Aluminum | K20 | 138 | 35 | 10h6 | 1.4 |
| 300003 |
|
Metric | Steel | K20 | 138 | 35 | 10h6 | 4.1 |
| 300004 |
|
Metric | Aluminum | K20 | 138 | 35 | 8h6 | 1.4 |
| 300005 |
|
Metric | Steel | K20 | 138 | 35 | 8h6 | 4.1 |
