ZPS Low Pressure Pneumatic Clamping Modules
Jergens ZPS Low Pressure Pneumatic Clamping Modules are designed for set-up-time-optimized clamping. Its compact size makes it ideal for light duty machining applications as well as non-machining applications like assembly fixtures and test stands.
Features, Benefits, & Product Specifications:
-
Pneumatic opening
-
Pneumatic blow-out
-
Cover & piston hardened
-
Repeatability: <0.005mm (0.0002”)
Note(s):
These clamping modules have high holding, pull-in and locking forces. This is opened pneumatically (1) and mechanically locked through spring force. Subsequent uncoupling of the pressure lines is possible at all times (module is tensioned pressure-free). The clamping module with blowout and support control has (2) connections: 1x pneum. opening (1), 1x pneum. blow-out and support control (3). The pneumatic blow-out and support control can optionally be connected.
ZPS Low Pressure Pneumatic Clamping Modules
Select a part number for CAD drawings, price and stock availability.

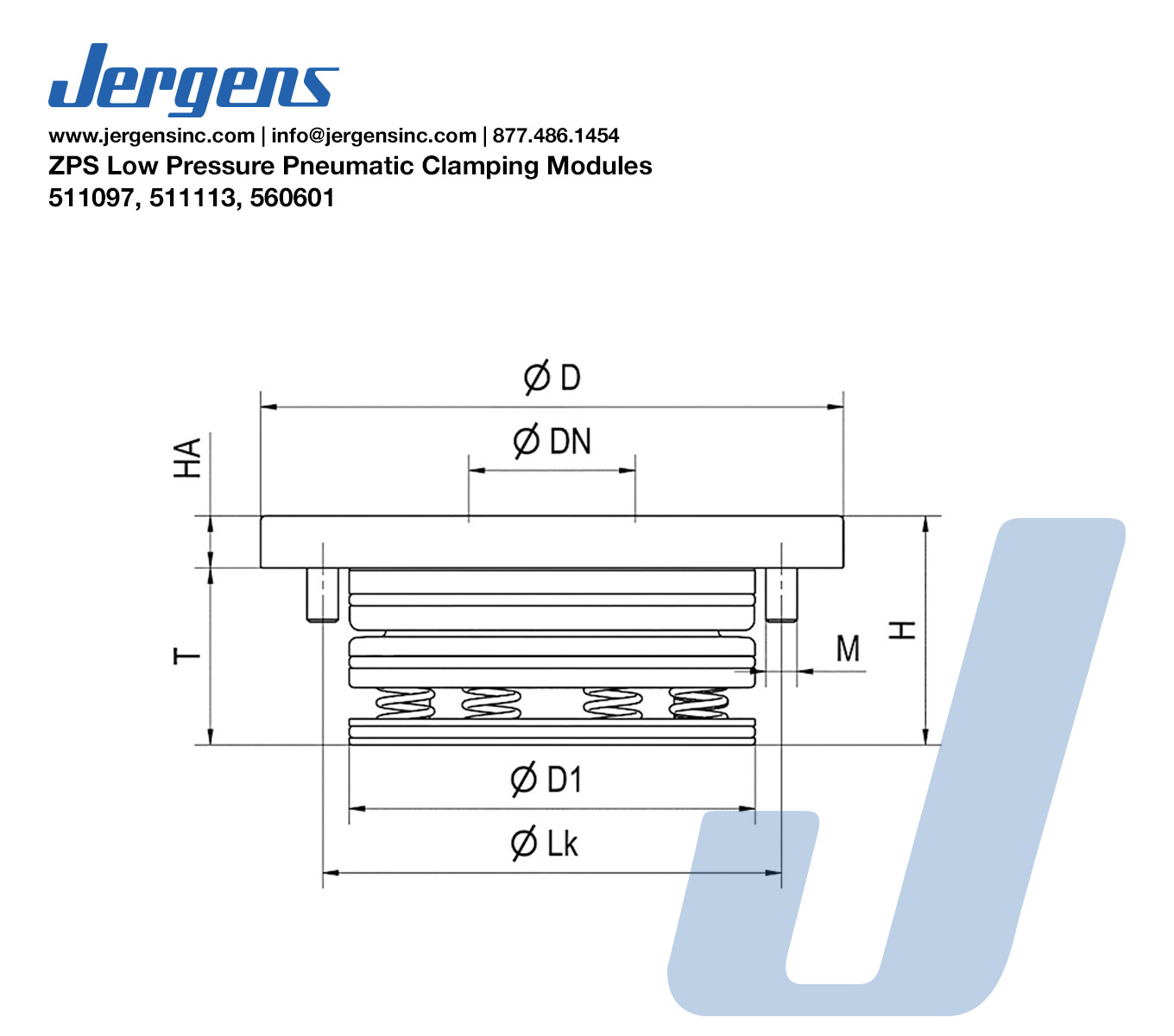

Part Number | CAD | Unit | Size | Pull-in/Locking Force up to (kN) | Holding Force (kN) | Minimum Unclamp Pressure (psi) | Blow Out | D (mm) | DN (mm) | D1 (mm) | H (mm) | HA (mm) | LK (mm) | M | T (mm) | Weight (kgs) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
511097 | Metric | K10.3 | 10 | 25 | 72 | Yes | 112 | 22 | 78 | 35 | 10 | 88 | M6 | 25 | 1.4 | |
511113 | Metric | K20.3 | 17 | 55 | 66 | Yes | 138 | 32 | 102 | 49 | 15 | 115 | M6 | 34 | 2.6 | |
560601 | Metric | K5.3 | 1.5 | 13 | 72 | Yes | 78 | 15 | 54.5 | 29 | 8 | 62 | M4 | 21 | 0.5 |
